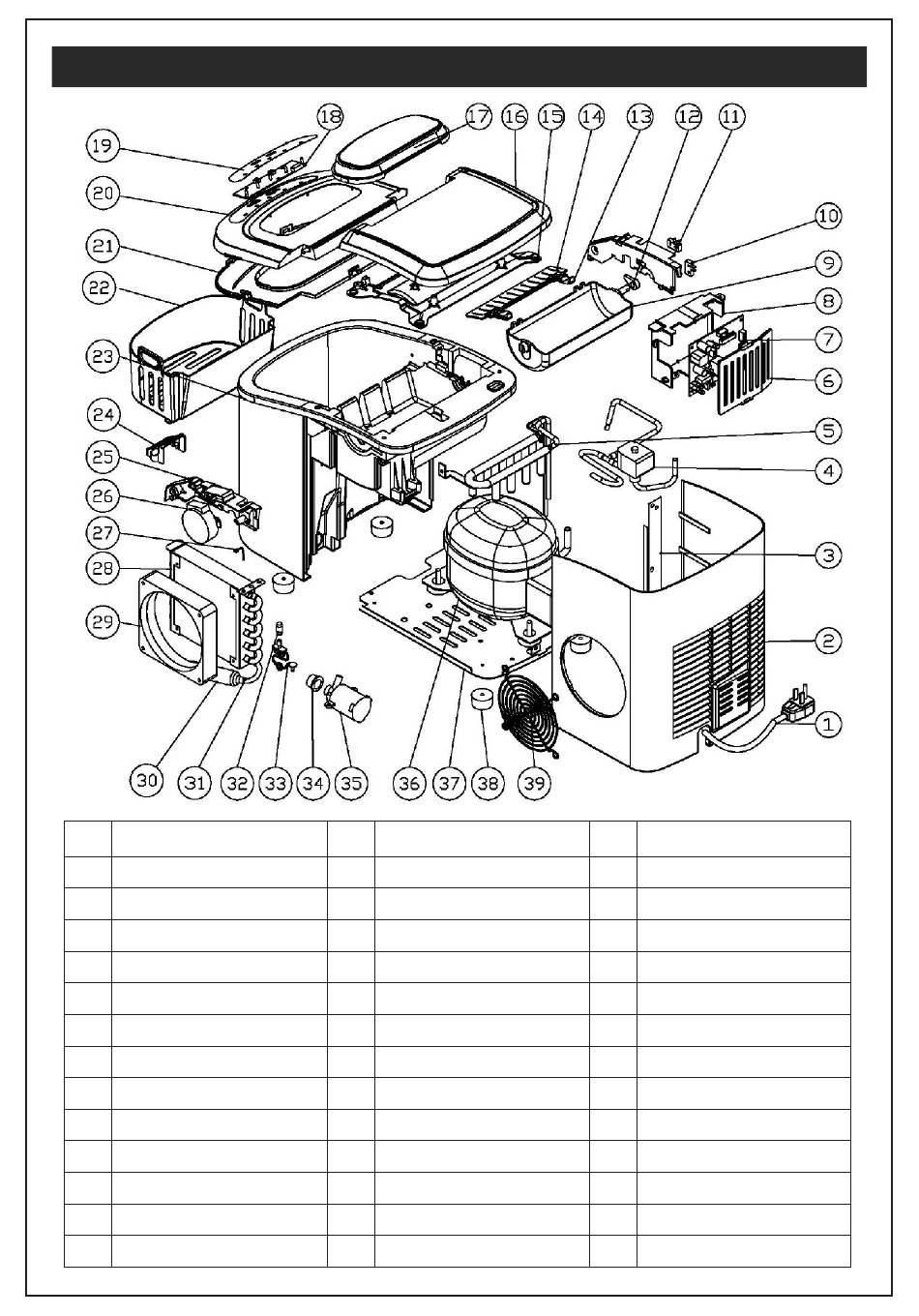

EXPLOSIVE DRAWINGS

S/N Part description
Power cord
1
Back panel
2
Plate inforce
3
Magnetism valve
4
Evaporator
5
Control box cover
6
7 Main PCB
8
Control box
9
Ice making box
10
Micro switch
11
Inner tank bracket, LH
12
Cam
13
Ice scoop link
S/N Part description
Ice scoop
14
Back btm panel
15
Back top panel
16
Clear window
17
Displaying PCB
18
Touch pad
19
20 Front top panel
21
Front btm panel
22
Ice basket
23
Foaming asm
24
Water filter
25
Inner tank brackt, RH
26
Sychronuous motor
11
S/N Part description
Stainless wire
27
Condenser
28
DC Fan motor
29
Filter dryer
30
Copper tube filter
31
Silicon plug drain
32
33 Nylon plug drain
34
Silicon sealing pump
35
DC water pump
36
Compressor
37
Plate bottom
38
Rubber foot
39
Air grille
