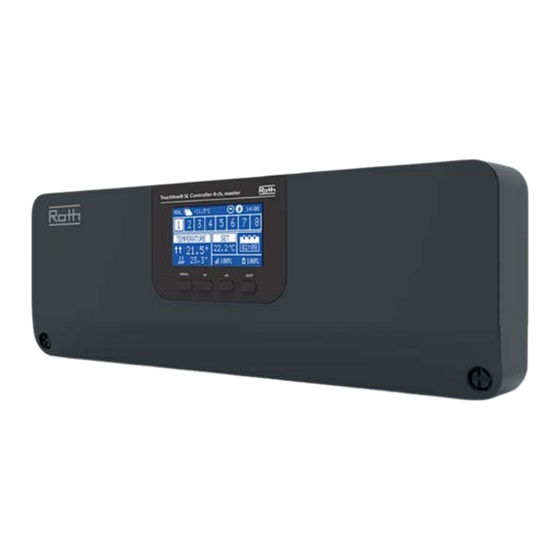

Energy systems (DE) Funk-Anschlussmodul Touchline® SL Master mit 8 Kanälen, 230 V (EN) Touchline® SL Controller 8 ch, master 230 V (ES) Módulo de conexión inalámbrica Touchline® SL Master con 8 canales, 230 V (PL) Bezprzewodowy moduł połączeniowy Touchline® SL Master z 8 kanałami, 230 V (DE) Montageanleitung (EN) Installation...
Seite 2
(DE) Funk-Anschlussmodul Touchline® SL Master mit 8 Kanälen, 230 V (EN) Roth Touchline® SL Controller 8 ch, master 230 V (ES) Módulo de conexión inalámbrica Roth Touchline® SL Master con 8 canales, 230 V (PL) Bezprzewodowy moduł połączeniowy Touchline® SL Master z 8 kanałami, 230 V...
Seite 3
Anschlussmodul). Das bedeutet: An einen Ausgang mit zwei oder drei Anschlüssen können bis zu vier Stellantriebe angeschlossen werden. (EN) Connect actuators, „brown“ to L and „blue“ to N. Use a Roth actuator 230 V 1 Watt Mat. No. 1135007412. Max. Number of actuators = 18 pieces (two zones of three pieces and six zones of two pieces).
Seite 4
(DE) Funk-Anschlussmodul Touchline® SL Master mit 8 Kanälen, 230 V (EN) Roth Touchline® SL Controller 8 ch, master 230 V (ES) Módulo de conexión inalámbrica Roth Touchline® SL Master con 8 canales, 230 V (PL) Bezprzewodowy moduł połączeniowy Touchline® SL Master z 8 kanałami, 230 V (DE) 230 V Pumpenausgang, max.
Seite 5
(DE) Drücken Sie die Taste MENÜ auf dem Anschlussmodul Touchline® SL Master und befolgen Sie die Bildschirmanweisungen. (EN) Now press the MENU button on the Extension Controller and follow the screen instructions. Roth Touchline® SL Extension Controller 1 will show the channels 9-16. Controller 2 chan- nels 17-24 etc.
Seite 6
17 – 24 etc. (ES) Pulse el botón „MENÚ“ del módulo de conexión de extensión y siga las instrucciones en pantalla. El módulo de conexión de extensión Roth Touchline® SL 1 muestra los canales 9 – 16. El módulo de conexión 2 muestra los canales 17 – 24, etc.
Seite 7
(ES) Confi gurar el contacto de la bomba (EN) Setting up pump stop (PL) Skonfi guruj styk pompy Touchline SL Controller 8 ch extension Touchline SL Controller 8 ch extension Touchline SL Controller 8 ch extension Touchline SL Controller 8 ch extension...
