5.9

Manual

This menu shows a QR code. This code can be decoded with a suitable scanner like, for example,
a mobile phone and it links directly to this manual.
5.10

Info

This menu shows the device name and firmware version.
6

Measurement

6.1

Measurement screen

After turning on the device, the measurement screen is displayed. The sensor converts the
continuously recorded mechanical vibration into an electrical signal which is subsequently
evaluated according to the set parameters and displayed as a measured value.
When the meter is started for the first time and after resetting the device settings, the display
shows the RMS value of the measured vibration velocity in mm/s.
When measurement parameters are adjusted via the menu, the changed settings are applied and
displayed when returning to measurement mode. These will also remain when the meter is turned
off and back on.
The menus for the measuring unit and the parameters can also be accessed directly from the
measuring screen, by using the arrow keys LEFT
6.2

Preparation for the measurement

Before making a measurement, the desired measurement parameters must be set in the menu.
These include the measuring unit, the parameter, the unit and, depending on the application, the
ISO evaluation or max value.
or RIGHT

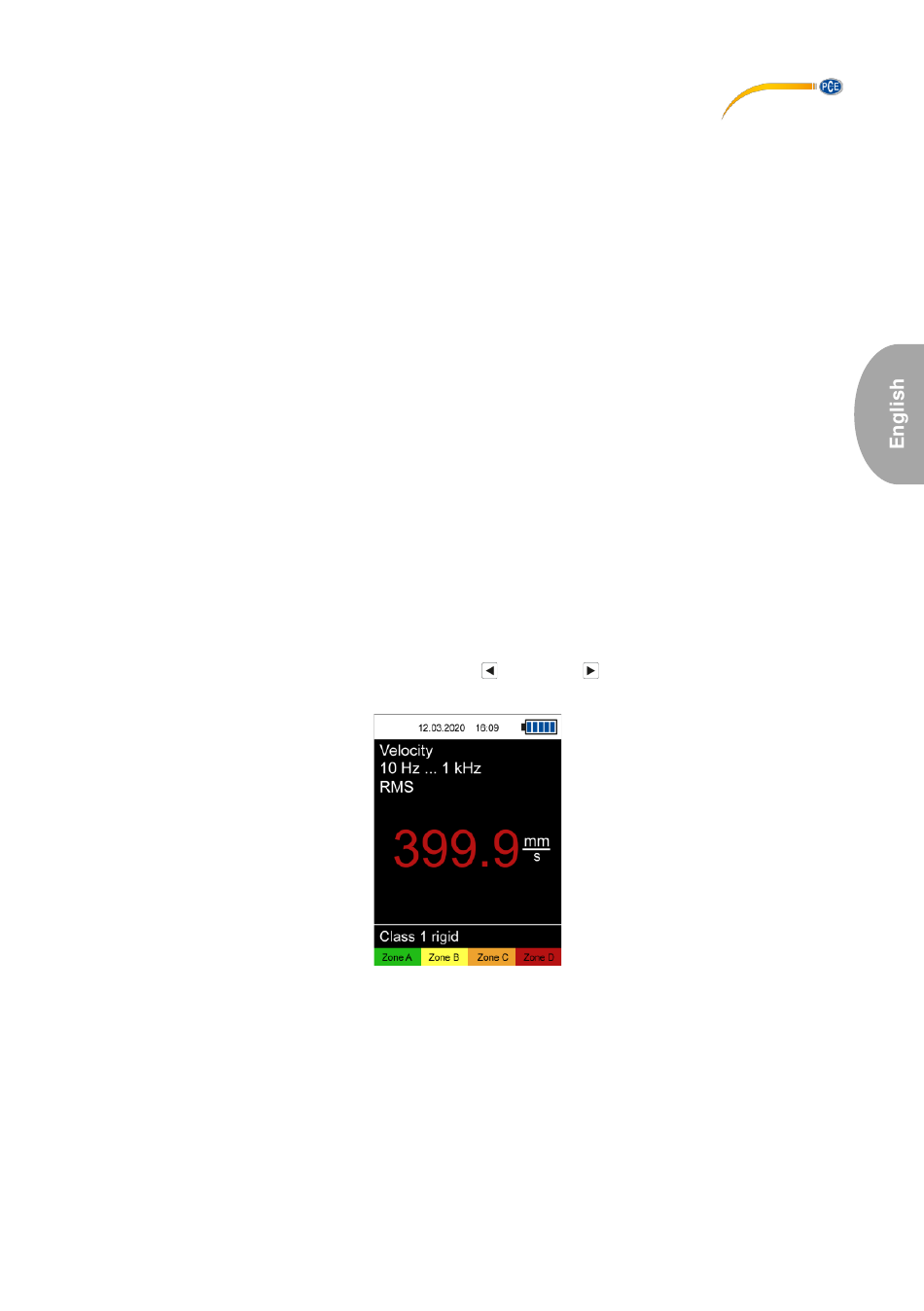

Fig. 15 Measurement screen
