DESCRIPTION OF THE DEVICE
Features
DMX-controllable pixel bar with tri-color LEDs
• DMX-controlled or stand-alone operation with Master/Slave function
• DMX512 control possible via any commercial DMX controller
• Sound-control via built-in microphone
• Speed of the internal programs and in the auto mode adjustable via DIP switches
• Each of the tri-color LEDs can be controlled individually
• Perfect solution as decorative lighting for shops, display windows, hotels, bars, clubs or interior furnishings
• Installation on a wall or on a truss system possible
• Create sensational light effect walls by connecting several LED bars
• After every 8 LED Pixel bars, the fixtures must have a renewed connection with the power mains

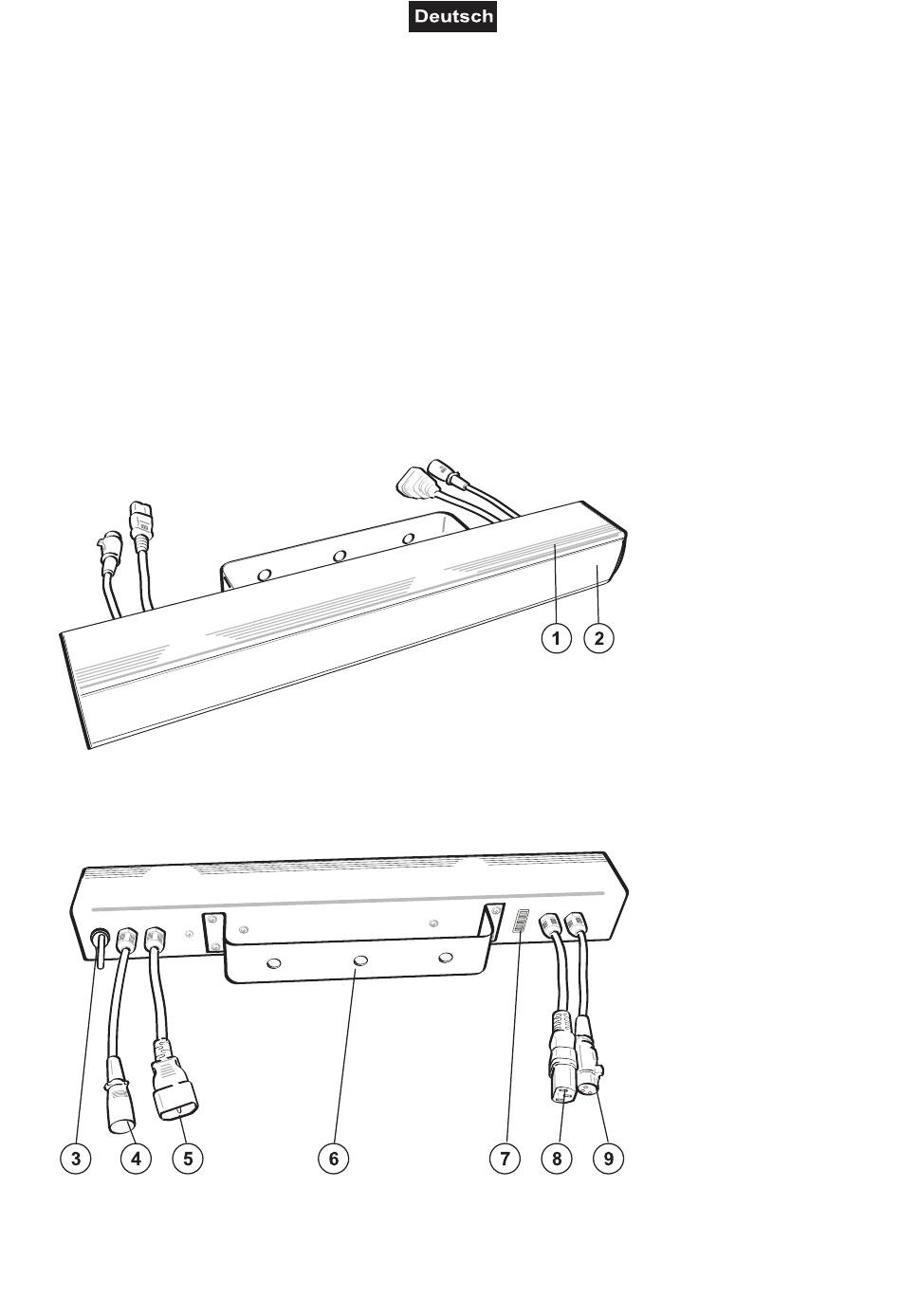

Overview
18/26
(1) Housing
(2) Cover
(3) Safety eyelet
(4) DMX input plug
(5) Power input
(6) Mounting bracket
(7) DIP switches
(8) Power output
(9) DMX out connectors
