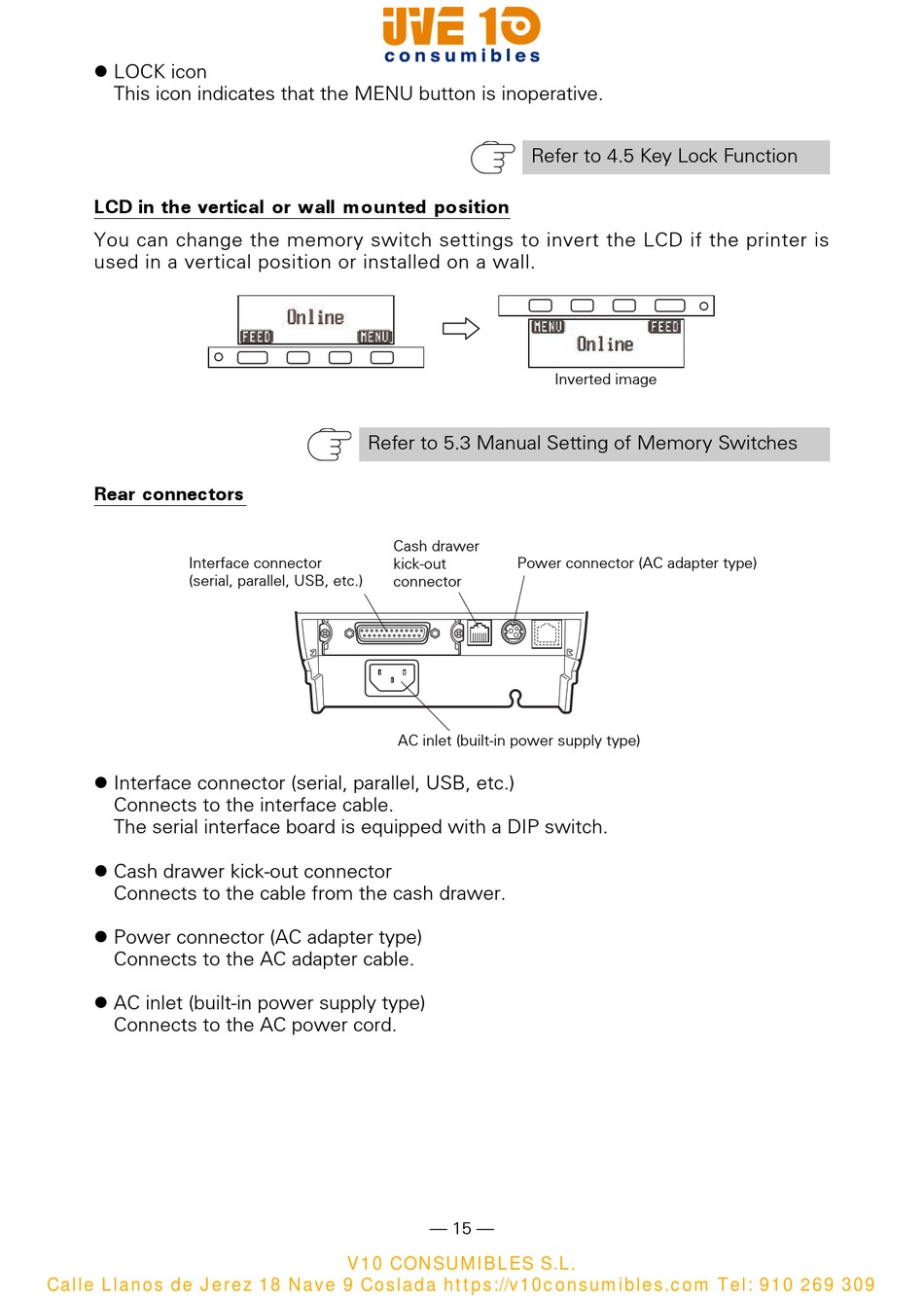

 LOCK icon
This icon indicates that the MENU button is inoperative.
LCD in the vertical or wall mounted position
You can change the memory switch settings to invert the LCD if the printer is
used in a vertical position or installed on a wall.
Rear connectors
Interface connector
(serial, parallel, USB, etc.)
 Interface connector (serial, parallel, USB, etc.)
Connects to the interface cable.
The serial interface board is equipped with a DIP switch.
 Cash drawer kick-out connector
Connects to the cable from the cash drawer.
 Power connector (AC adapter type)
Connects to the AC adapter cable.
 AC inlet (built-in power supply type)
Connects to the AC power cord.
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309
Refer to 5.3 Manual Setting of Memory Switches
Cash drawer
Power connector (AC adapter type)
kick-out
connector
AC inlet (built-in power supply type)
— 15 —
V10 CONSUMIBLES S.L.
Refer to 4.5 Key Lock Function
Inverted image
