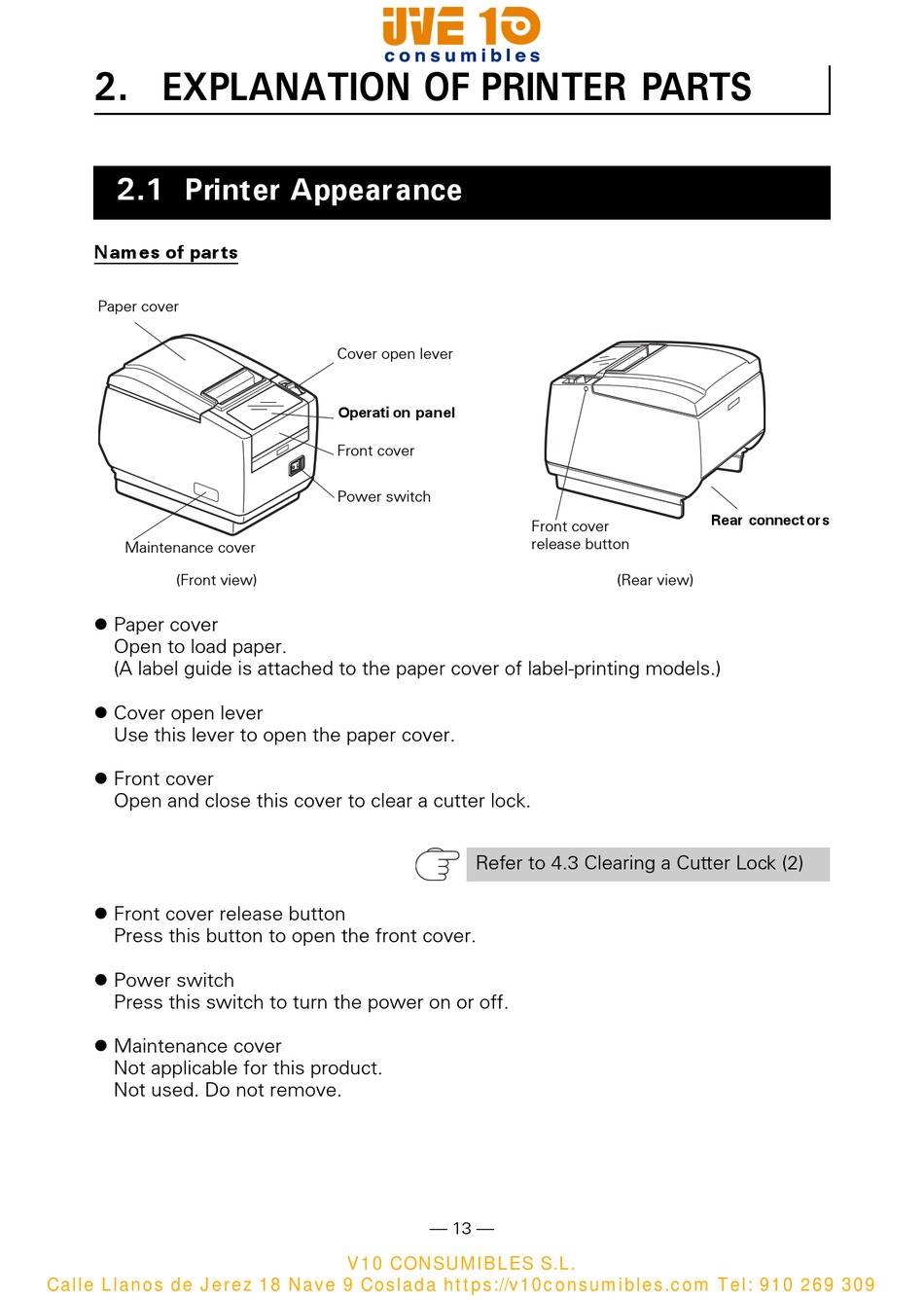

2. EXPLANATION OF PRINTER PARTS
2.1 Printer Appear ance
Names of par ts
Paper cover
Maintenance cover
(Front view)
 Paper cover
Open to load paper.
(A label guide is attached to the paper cover of label-printing models.)
 Cover open lever
Use this lever to open the paper cover.
 Front cover
Open and close this cover to clear a cutter lock.
 Front cover release button
Press this button to open the front cover.
 Power switch
Press this switch to turn the power on or off.
 Maintenance cover
Not applicable for this product.
Not used. Do not remove.
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309
Cover open lever
Operati on panel
Front cover
Power switch
Refer to 4.3 Clearing a Cutter Lock (2)
— 13 —
V10 CONSUMIBLES S.L.
Front cover
release button
(Rear view)
Rear connect ors
