5.2.2.2

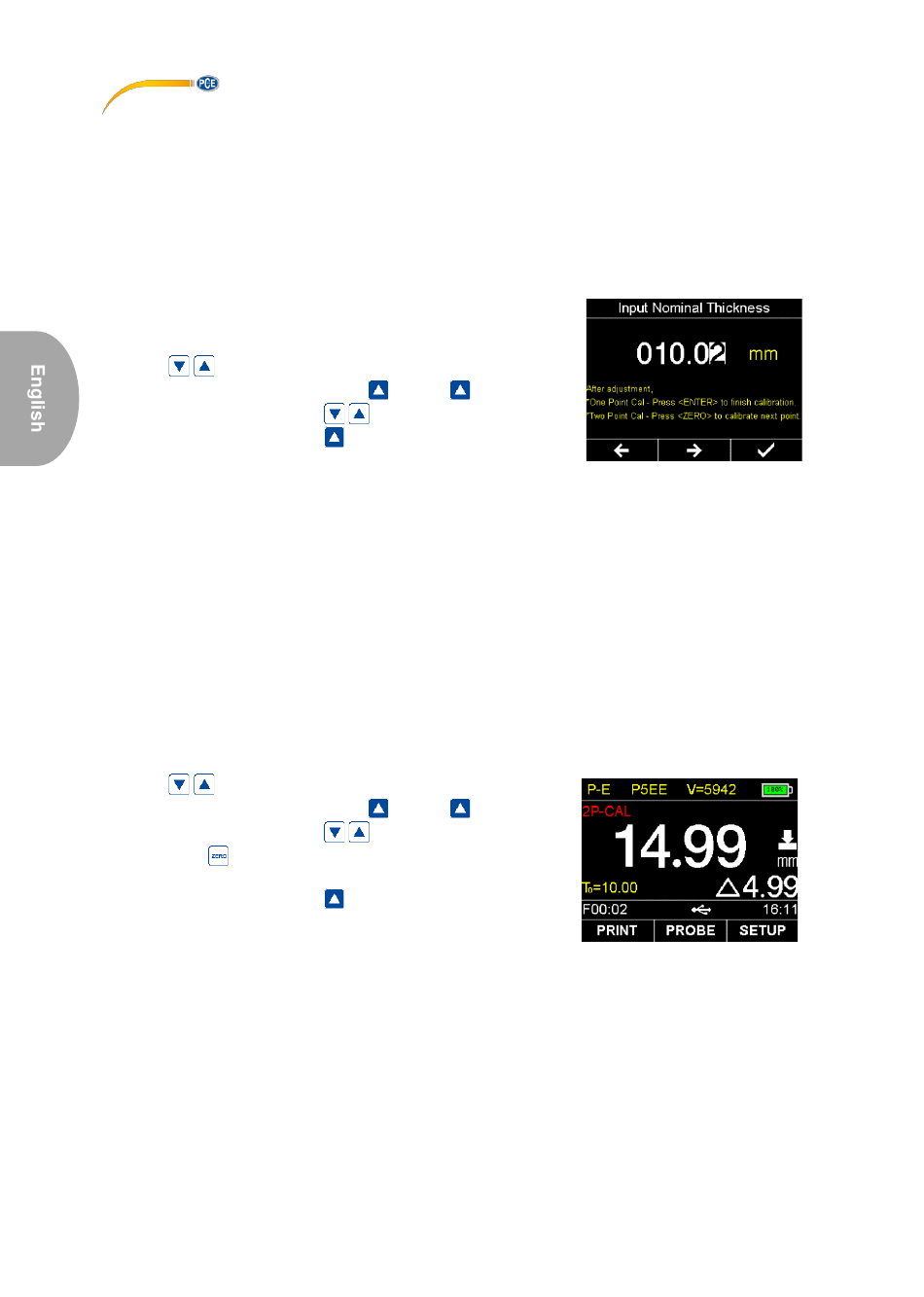

Calibration to a certain material thickness (one point calibration)
For this calibration procedure, a workpiece of the material to be measured is needed. The exact
material thickness of the workpiece must be known or must be measured with an external meter.
Procedure:
1. Make a zero point calibration as described in chapter 5.2.1.
2. Apply some coupling gel to the workpiece.
3. Evenly press the probe onto the workpiece. (The coupling status and a material thickness
value should now be displayed)
4. Remove the probe when a stable value has been reached.
If the value changes while the
probe is removed, repeat step 3.
5. Press
to be able to enter the nominal thickness.
6. Select the decimal place with F1
material thickness with the
7. Confirm your entry with F3
main screen and show the calculated sound velocity in the
upper part of the display. The meter is now ready to
measure.
5.2.2.3
Calibration to a certain material thickness (two point calibration)
For this calibration procedure, two workpieces of the material to be measured are needed. The exact
material thickness of the workpieces must be known or must be measured with an external meter.
Procedure:
1. Make a zero point calibration as described in chapter 5.2.1.
2. Apply some coupling gel to the workpiece.
3. Evenly press the probe onto the workpiece. (The coupling status and a material thickness
value should now be displayed)
4. Remove the probe when a stable value has been reached. If the value changes while the
probe is removed, repeat step 3.
5. Press
to be able to enter the nominal thickness.
6. Select the decimal place with F1
material thickness with the
7. Press Zero
to calibrate the second point. Then repeat
steps 2 to 6 with the second workpiece.
8. Confirm your entry with F3
main screen and show the calculated sound velocity in the
upper part of the display. The meter is now ready to
measure.
and F2
and set the
keys.
. The meter will display the
and F2
and set the
keys.
. The meter will display the
© PCE Instruments
25
