4. The measured value is shown on the LC display. By pressing
the „MAX/MIN" button, the minimum and maximum values
are measured and displayed.
!
When measuring voltage, the resistance measurement
and continuity test functions must not be activated.
7 DCA Zero
When measuring DC voltages, reset the value by pressing
the „MAX/MIN" button and holding it down for 2 seconds
to calibrate the electronic measuring equipment. By pressing
the „MAX/MIN" button repeatedly, the minimum and
maximum values are measured displayed.

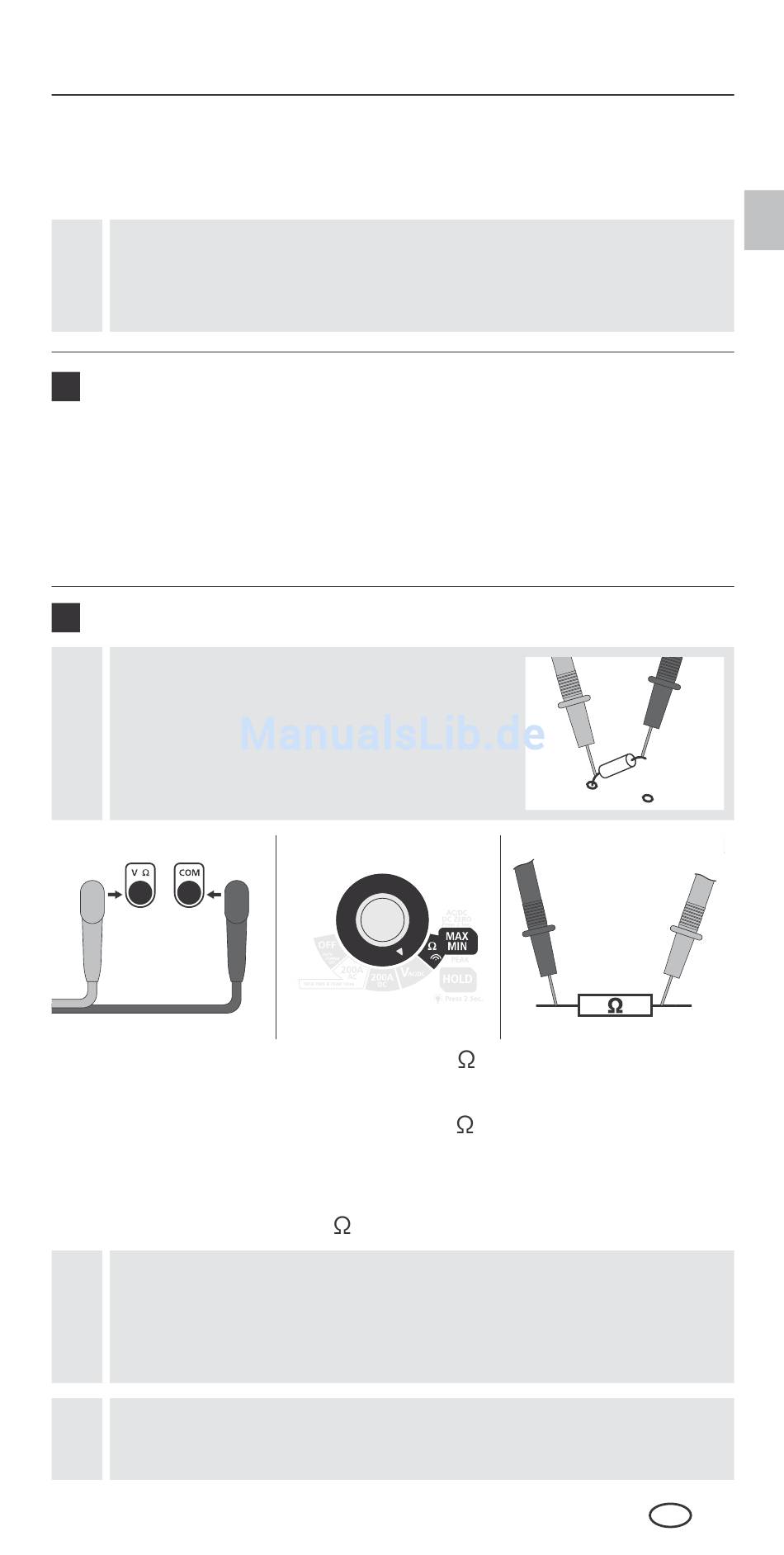

8 Resistance measurement
Resistances can only be measured
correctly in isolation; therefore,
!
the components might need to be
disconnected from the remainder
of the circuit.
1.
Red
Black
1. Connect the red test prod to the V
the black test prod to the COM input socket (8).
2. Turn the rotary switch to position „ ".
3. Connect the measuring contacts to the object to be tested.
4. The measured value is shown on the LC display. If the
measured value is < 30 , a signal sounds.
When measuring resistance, to avoid the risk of
!
the results of a measurement being distorted, there
must be no traces of dirt, oil, solder spray or other
contamination on the test prods.
!
When measuring resistance, the components must be
zero-potential.
MultiClamp-Meter Pro
2. 3.
Black
input socket (12) and
Red
