Power supply
The power supply is 5-24 VDC with max. 15 A.

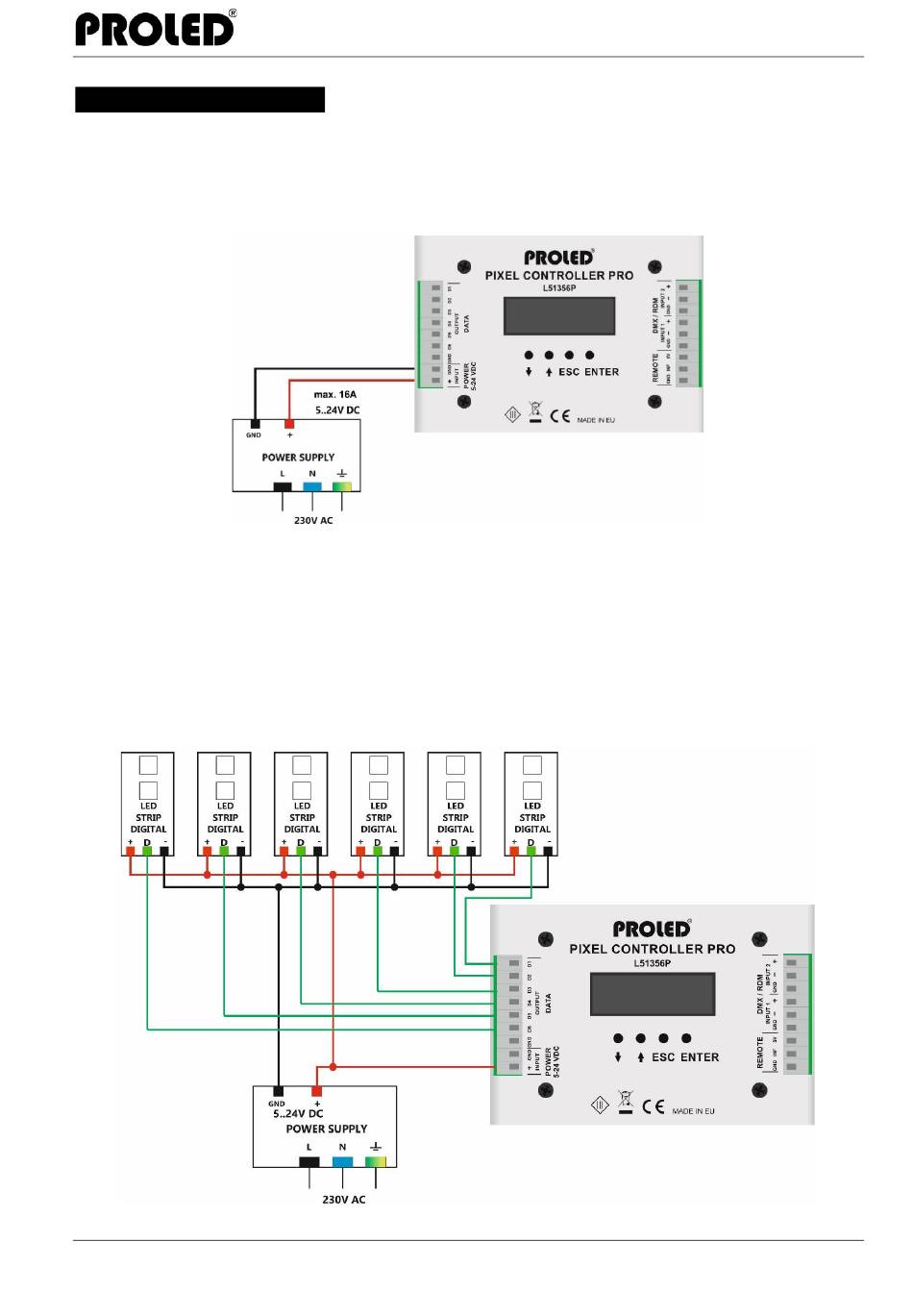

Connecting of digital Pixel Strips:
Please be advised, that only WS2811, WS2812, WS2813, WS2814, WS2815, WS2818B, UCS2904, P943,
GS8208 and SK6822 LED-Chips can be controlled. Max output load is 6x 2,5A. If a higher load is needed,
than the strips must be connected to a seperate power supply. If a strip will be powered with different power
supplies, the strips must be separated. Only the data line can be connected between the strips. The GND
lines of the power supplies must be connected together.
