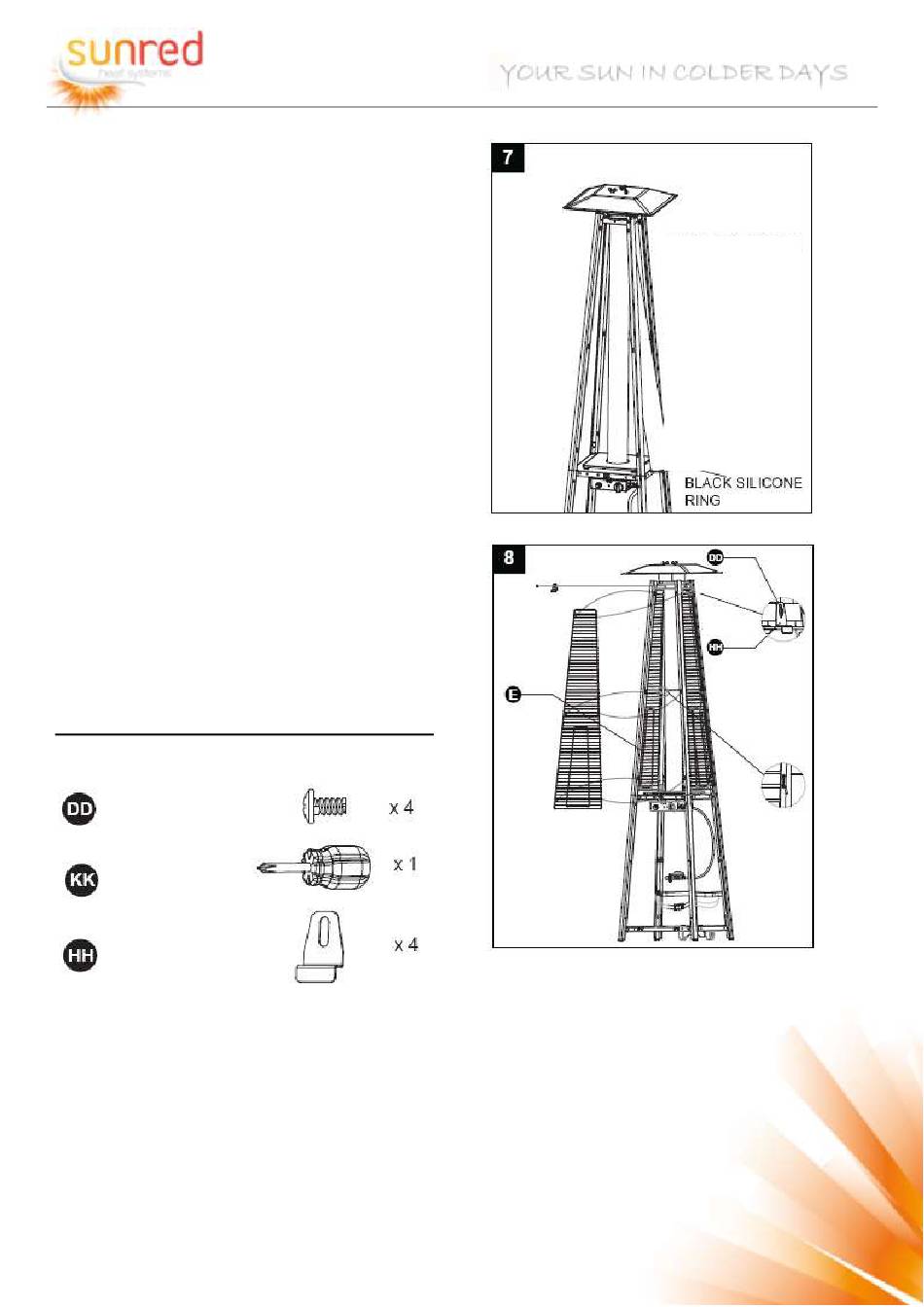

7. Carefully install the glass tube by lifting up
and inserting through the center hole in the
upper plate. Ensure the black silicone ring is
attached to the lower edge of the glass tube
as illustrated. Slide the glass tube through the
hole of the lower plate cover and onto the
middle plate. Check and ensure that the glass
tube is positioned properly and is completely
covering the center hole of the middle plate.
WARNING! The black
silicone ring must be in place
prior to operating the heater.
8. Assembly the protective guard.
Hang the hooks of the protective guard onto
the holes in supports.
Secure the protective guards with fixing
brackets with 4pcs 3/16" screws.
Hardware Used
3/16" Screw
Philips
screwdriver
Fixing
Bracket
www.sunred.nl
To aid in
installation
place black
silicone
ring on the middle
plate and then
install glass tube.
Ensure the rim of
the glass tube sits
firmly in the black
silicone ring.
