Kalibrierung durchzuführen. Beim Gerät VX680 erfolgt diese über den Menüpunkt „Akkupflege“ (Menü/ Manager-PIN/ Verwaltung/ System/ Energieverwaltung). Bei den Geräten CCV Go, CCV Fly, CCV Mobile Premium und CCV Base Next erfolgt diese über den Betrieb bis zur vollständigen Entladung mit nachfol- gender vollen Aufladung des Akkus.
Seite 3
All manuals and user guides at all-guides.com Betrieb ACHTUNG: Wegen des Risikos eines Stromschlages oder der Beschädigung des Terminals das Gerät nicht in der Nähe von Wasser (z.B. Badewanne, Waschbecken, Spüle, Waschmaschine, nasser Boden oder Schwimmbad) benutzen. Vermeiden Sie die Nutzung neben elektrischen Anlagen und Anlagen, die hohe Stromschwankungen verursachen oder eine hohe elektrische Strahlung abgeben (z.B.
CE Declaration of Conformity Hereby declares CCV Germany GmbH the accordance of the radio equipment CCV Mobile Premium and its power supply to the directive 2014/53/EU. The complete texts of the EU declarations of conformity are available on following internet address: https://ccv-deutschland.de/de/CCV_Mobile%20Premium...

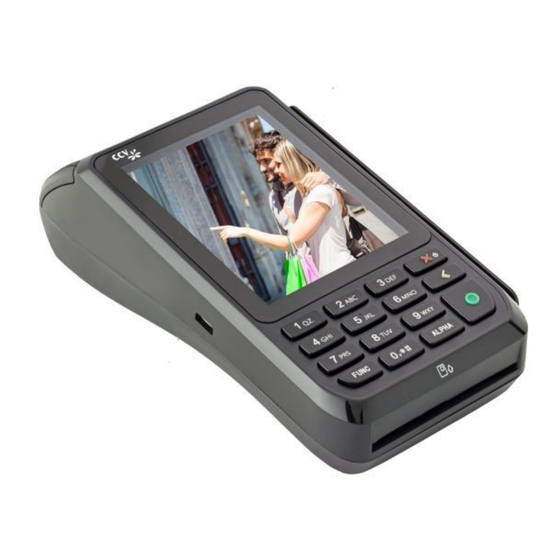

All manuals and user guides at all-guides.com Produktbeschreibung Druckerklappe Magnetstreifen-Leser Kontaktlos-Leser (hinter dem Display) Micro-USB-Ladebuchse Chipkarten-Leser Akku-Stecker Akku SIM-Karten-Steckplatz Händlerkarten-Steckplatz (GeldKarte) Schraube für Deckel Seite 5...
Seite 6
All manuals and user guides at all-guides.com 1. Inhalt Inbetrieb- nahme - Terminal CCV Mobile Premium - Akku (Li-ion 2600 mAh, 3,7 V) - Netzteil (Micro-USB, Output: 5V DC, 1,0 A) 2. SIM-Karte einlegen 3. Akku vollständig laden mindestens 6 Stunden 4.
Seite 7
All manuals and user guides at all-guides.com 5. Terminal einschalten 6. Inbetriebnahme 2 Sekunden halten = einschalten/ ausschalten 7. Sprachenwahl und Terminal-ID eingeben 8. PU-Anwahlsatz und Kommunikation wählen Seite 7...
All manuals and user guides at all-guides.com 12. Grundzustand 11. Initialisierung Statusleiste Das Terminal startet am Ende der Inbetriebnahme (Kontaktlos-Anzeige, Uhrzeit, Kommunikations-Status) automatisch eine Initialisierung, eine erweiterte Diag- nose und eine EMV-Konfigurationsdiagnose. Bitte kontrollieren Sie die Belege. Sie erkennen die Betragseingabe erfolgreiche Abarbeitung am Text „Erfolgreich durchge- (Beispiel: Eingabe...
All manuals and user guides at all-guides.com Storno 1. Funktion Storno 2. Transaktionsnummer 3. Karte einlesen (Chip-, 4. PIN-Eingabe (opt.) und eingeben Magnet- oder Kontaktlos- Bestätigung Karte) Zahlungsverfahren (optional) Wahl des Zahlungsverfahrens durch den Kun- den: „Karte bitte“ Bildschirm → Anwendungsaus- wahl aktivieren (select-Button oder gelbe CORR -Taste) →...
Seite 13
All manuals and user guides at all-guides.com Menü-Aufruf (Passworteingabe Kassierer, Softkeys Manager oder Techniker) Anwendungsauswahl (Wahl des Zahlungsver- fahrens) Softkey-Reihenfolge ändern Kassenschnitt (Einreichung Offline-Umsätze, Abschluss der Transaktion) Favoriten-Aufruf (Anzeige der möglichen Softkey-Funktionen) Konfigurations-Diagnose (z.B. Abholung eines TKM-Kommandos) Belegwiederholung (druckt Händler– und Kundenbeleg nochmals aus) Nachzahlung (Start einer Nachzahlung) Umschaltung Kommunikation (z.B.
All manuals and user guides at all-guides.com Safety notes Power Before you connect the terminal power pack to an electrical outlet, check that the on/off power switch on the terminal is off. If the terminal does not have an on/off switch, check that the power cable connector is removed from the terminals´s power port.
Seite 19
All manuals and user guides at all-guides.com Location — Electrical Considerations CAUTION: Due to risk of electrical shock or terminal damage, do not use the terminal near water, inclu- ding a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. Also, avoid using this product during electrical storms.
Seite 20
CE Declaration of Conformity Hereby declares CCV Germany GmbH the accordance of the radio equipment CCV Mobile Premium and its power supply to the directive 2014/53/EU. The complete texts of the EU declarations of conformity are available on following internet address: https://ccv-deutschland.de/de/CCV_Mobile%20Premium...
Seite 21
All manuals and user guides at all-guides.com Product despription Printer cover Magnetic-stripe reader Contacless reader Power connector (Micro-USB) Smart card reader Battery connector Battery SIM card slot Card slot for „Händlerkarte“ (GeldKarte) Screw for backcover Page 21...
Seite 22
All manuals and user guides at all-guides.com 1. Content Startup - Terminal CCV Mobile Premium - Battery (2600 mAh, 3,7 V) - Power supply (Micro-USB, Output: 9V DC, 1,0 A) 2. Input SIM card 3. Battery load More than 6 hours 4.
Seite 23
All manuals and user guides at all-guides.com 5. Switch on 6. Startup hold for 2 sec. = on/ off 7. Select language and enter Terminal-ID 8. Select Host target (communication unit) Page 23...
Seite 24
All manuals and user guides at all-guides.com 9. Set communication (3G/WIFI) Page 24...
Seite 25
All manuals and user guides at all-guides.com 10. Optional - activate cash register Page 25...
All manuals and user guides at all-guides.com 12. Initial state 11. Initialisation Status bar Please proof your receipts for a successful initialisation, (concactless reader ready, time and communication information) diagnosis and EMV diagnosis. After that the terminal is ready to use. If neccessary you can start the initialisation directly with Enter amount a softkey button or via the menu.
All manuals and user guides at all-guides.com Reconsiliation with closure Handling 1. Softkey reconsiliation 2. Proof your receipt with closure Payment 1. Enter amount 2. Card please … (smart 3. Enter PIN 4. Proof your receipt card, magnetic stripe or contactless) Card reader Smart card...
Seite 28
All manuals and user guides at all-guides.com Reversal 1. Softkey Reversal 2. Enter transaction num- 3. Card please … (smart 4. Enter PIN card, magnetic stripe or contactless) Select transaction type (optional) If enabled you can choose your payment appli- cation.
Seite 29
All manuals and user guides at all-guides.com Menu (password level merchant, manager or Softkeys technician) Select payment application (select your payment application Softkey order (change your softkeys) Reconsiliation with closure (start of booking all open transactions end of the day) Favourites (show all possible softkeys) Config diagnosis (sync host commands) Receipt Copy (reprints merchant and custo-...
Seite 30
All manuals and user guides at all-guides.com Menu Menu-PIN example: 000000 Page 30...
Seite 31
All manuals and user guides at all-guides.com Specifica- tions CPU/ Memory 32-bit ARM 11/ 192 MB (128 MB Flash/ 64 MB DDR), expandable to 32 GB (Micro SD) Keypad 10 numeric keys, 5 function keys, back-lightning Display 3,5 Inch 240 x 320 pixels capacitive touch screen Communication/ Peripheral Ports WiFi (IEEE 802.11 b/g/n up to 72.2Mbps) + 3G (WCDMA), 1 x Micro-USB/ OTG Power Supply...
