INSTALLATION

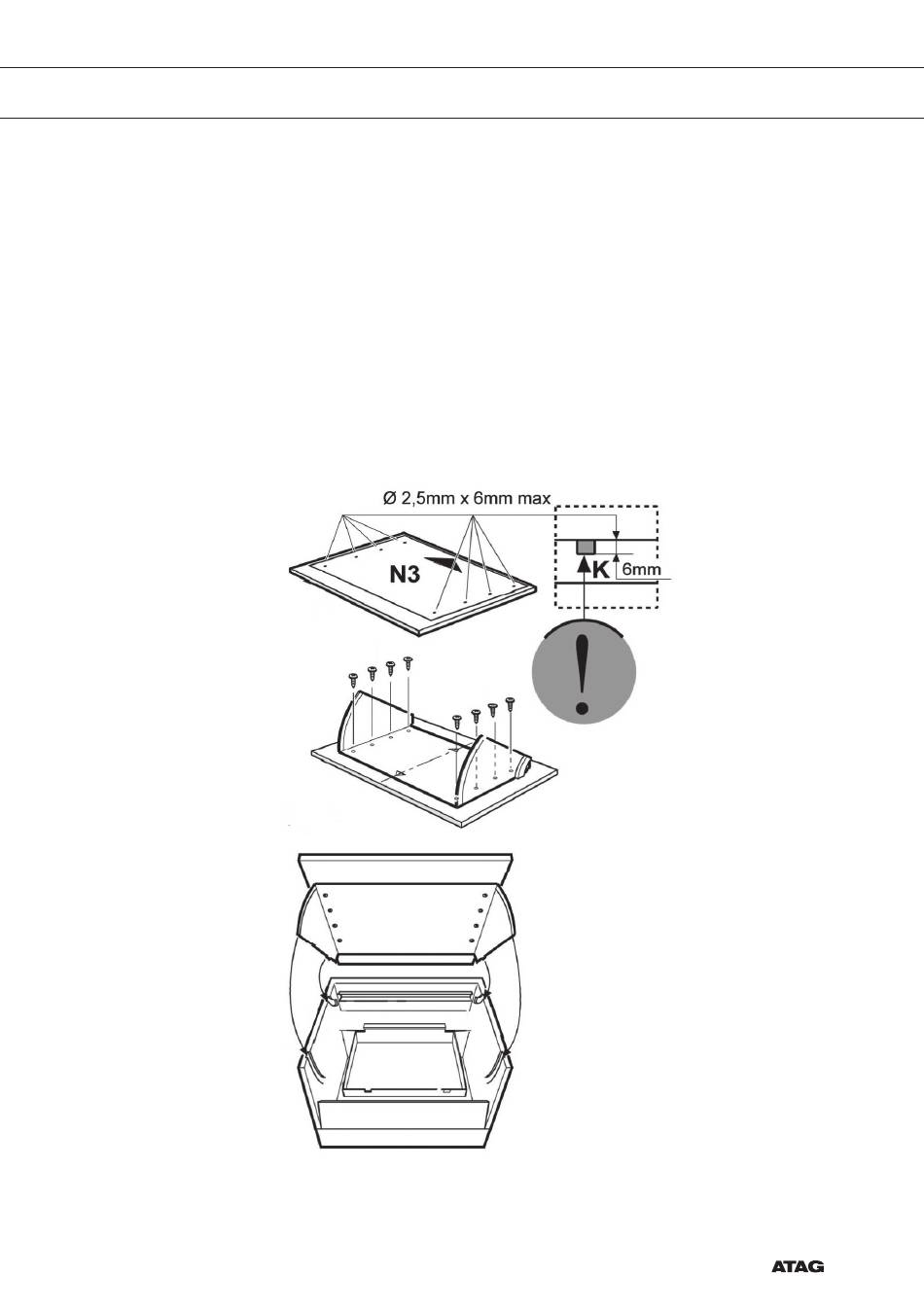

Fitting the door panel
1. Open the door, push the brackets in and remove the door.
2. Place the door panel on a flat surface with the back facing upwards.
3. Position the drilling jig (N3) on the back of the door panel.
The arrow on the jig should point upwards.
4. Drill mounting holes (K) with a depth of between ø 2.5 mm
and ø 6 mm.
5. Attach the metal panel with the 8 supplied screws.
6. Place the panel door on the cooker hood again, first at the top and
then at the bottom.
7. Check that the door opens and shuts properly.
