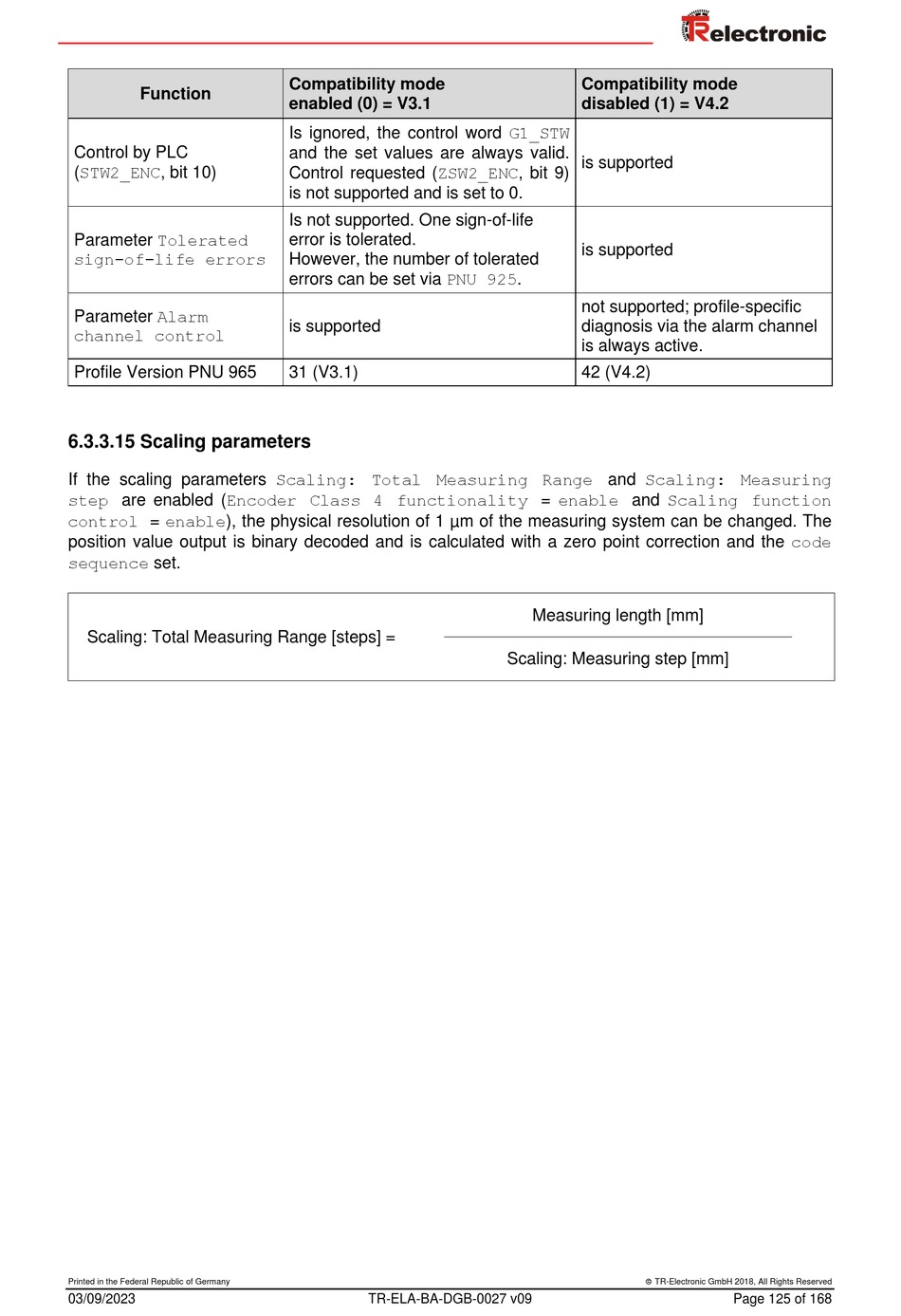

Function
Control by PLC
(STW2_ENC, bit 10)
Parameter Tolerated
sign-of-life errors
Parameter Alarm
channel control
Profile Version PNU 965

6.3.3.15 Scaling parameters

If the scaling parameters Scaling: Total Measuring Range and Scaling: Measuring
step are enabled (Encoder Class 4 functionality = enable and Scaling function
control = enable), the physical resolution of 1 µm of the measuring system can be changed. The
position value output is binary decoded and is calculated with a zero point correction and the code
sequence set.
Scaling: Total Measuring Range [steps] =
Printed in the Federal Republic of Germany
03/09/2023
Compatibility mode
enabled (0) = V3.1
Is ignored, the control word G1_STW
and the set values are always valid.
Control requested (ZSW2_ENC, bit 9)
is not supported and is set to 0.
Is not supported. One sign-of-life
error is tolerated.
However, the number of tolerated
errors can be set via PNU 925.
is supported
31 (V3.1)
TR-ELA-BA-DGB-0027 v09
Compatibility mode
disabled (1) = V4.2
is supported
is supported
not supported; profile-specific
diagnosis via the alarm channel
is always active.
42 (V4.2)
Measuring length [mm]
Scaling: Measuring step [mm]
