Refrigerator operation

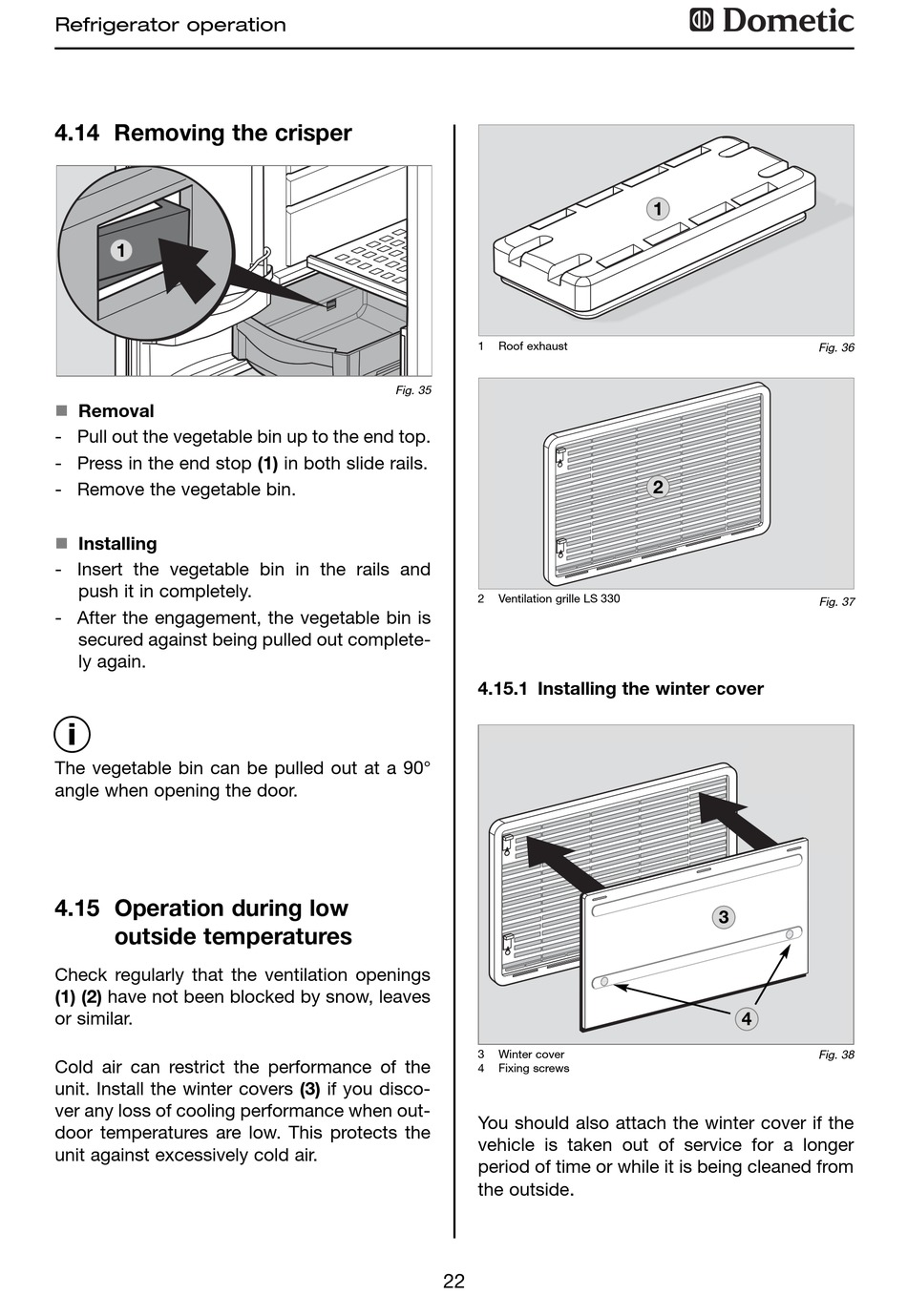

4.14 Removing the crisper

1
n
Removal
- Pull out the vegetable bin up to the end top.
- Press in the end stop (1) in both slide rails.
- Remove the vegetable bin.
n
Installing
- Insert the vegetable bin in the rails and
push it in completely.
- After the engagement, the vegetable bin is
secured against being pulled out complete-
ly again.
i
The vegetable bin can be pulled out at a 90°
angle when opening the door.
4.15 Operation during low
outside temperatures
Check regularly that the ventilation openings
(1) (2) have not been blocked by snow, leaves
or similar.
Cold air can restrict the performance of the
unit. Install the winter covers (3) if you disco-
ver any loss of cooling performance when out-
door temperatures are low. This protects the
unit against excessively cold air.
1 Roof exhaust
Fig. 35
2 Ventilation grille LS 330

4.15.1 Installing the winter cover

3 Winter cover
4 Fixing screws
You should also attach the winter cover if the
vehicle is taken out of service for a longer
period of time or while it is being cleaned from
the outside
22
1
2
3
.
Fig. 36
Fig. 37
4
Fig. 38
