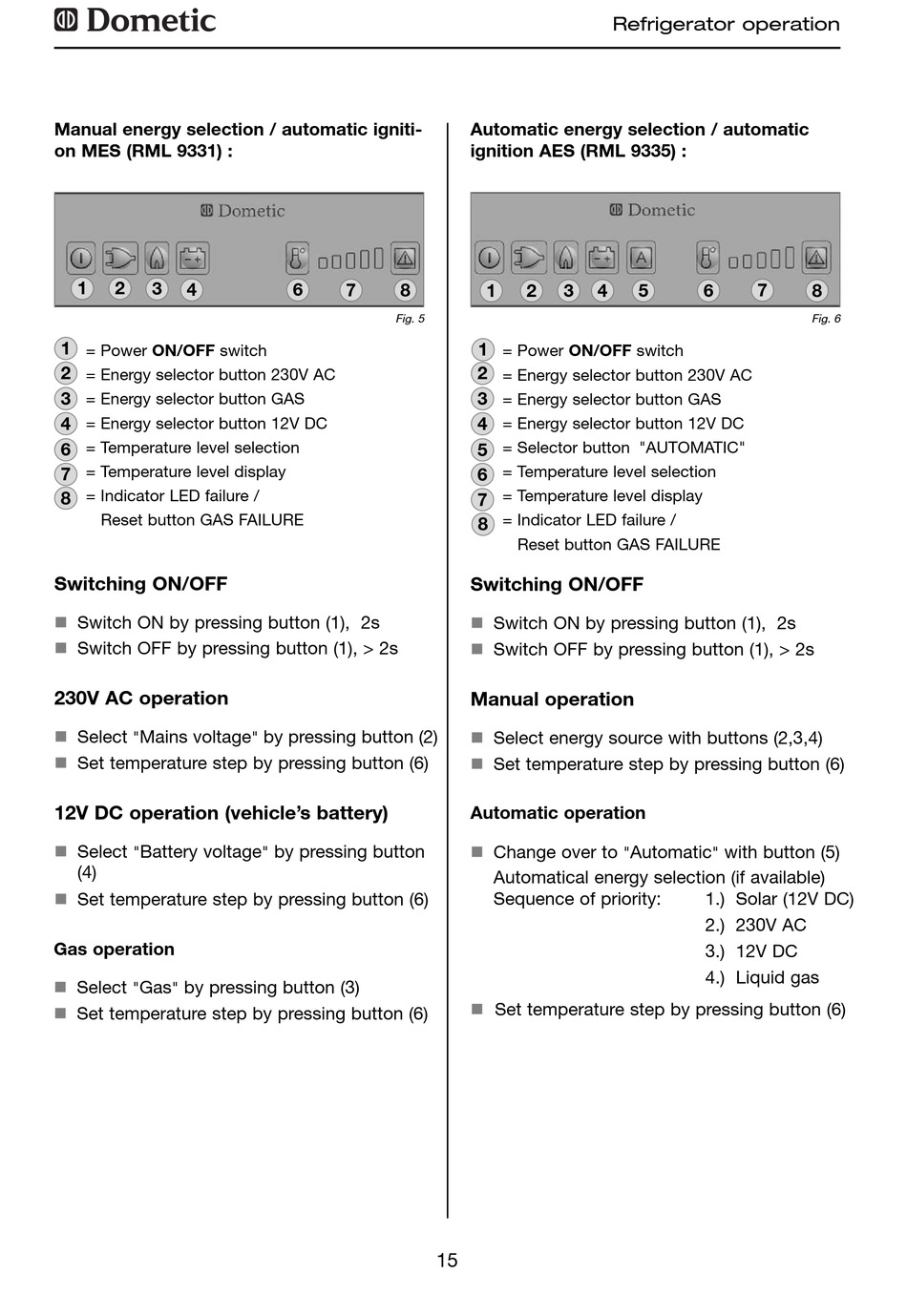

Manual energy selection / automatic igniti-
on MES (RML 9331) :
1 2
3
4
1
= Power ON/OFF switch
2
= Energy selector button 230V AC
3
= Energy selector button GAS
4 = Energy selector button 12V DC
= Temperature level selection
6
= Temperature level display
7
= Indicator LED failure /
8
Reset button GAS FAILURE
Switching ON/OFF
n
Switch ON by pressing button (1), 2s
n
Switch OFF by pressing button (1), > 2s
230V AC operation
n
Select Mains voltage
"
n
Set temperature step by pressing button (6)
12V DC operation (vehicle's battery)
n
Select Battery voltage
"
(4)
n
Set temperature step by pressing button (6)
Gas operation
n
Select Gas by pressing button (3)
" "
n
Set temperature step by pressing button (6)
6 7 8
Fig. 5
by pressing button (2)
"
by pressing button
"
Automatic energy selection / automatic
ignition AES (RML 9335) :
1 2 3 4
1
= Power ON/OFF switch
2
= Energy selector button 230V AC
3
= Energy selector button GAS
4 = Energy selector button 12V DC
= Selector button "AUTOMATIC"
5
= Temperature level selection
6
= Temperature level display
7
= Indicator LED failure /
8
Reset button GAS FAILURE
Switching ON/OFF
n
Switch ON by pressing button (1), 2s
n
Switch OFF by pressing button (1), > 2s
Manual operation
n
Select energy source with buttons (2,3,4)
n
Set temperature step by pressing button (6)
Automatic operation
n
Change over to
Automatical energy selection (if available)
Sequence of priority:
n
Set temperature step by pressing button (6)
15
Refrigerator operation
7
5 6
Automatic with button (5)
" "
1.) Solar (12V DC)
2.) 230V AC
3.) 12V DC
4.) Liquid gas
8
Fig. 6
