For the first installation, follow the instructions below:
Step 1: Locate the Rear Camera.

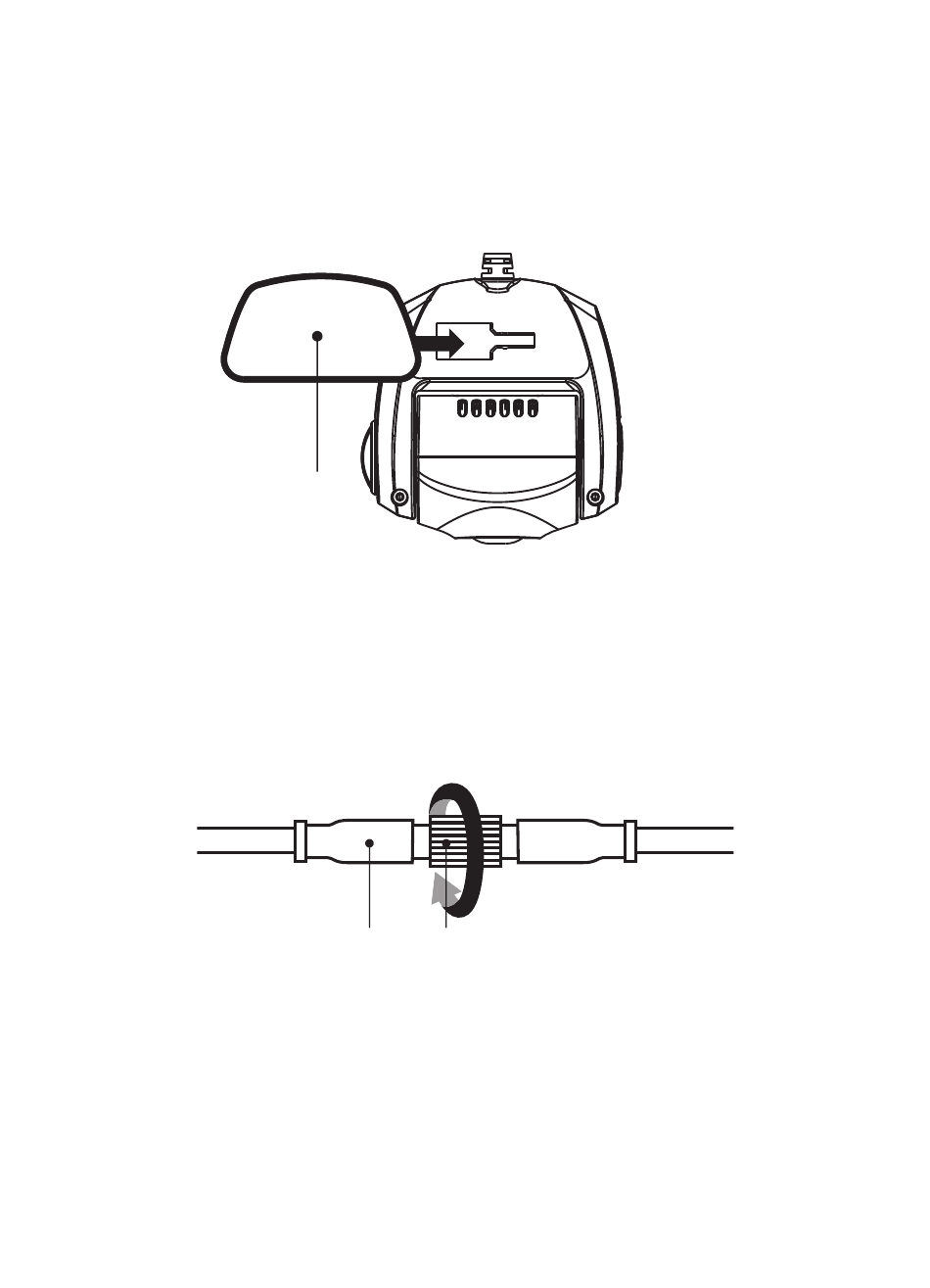

1.1 Connect the device to the adhesive mount
Attach the device onto (3) the adhesive mount.
Make sure you align the device within the adhesive mount for proper installation.
1.2 Connect Rear Camera Cable Connector
Connect (2) Rear Camera connector to (6) cable connector. Be sure the male and
female pins is align when connecting, turn (5) Locking ring clockwise to secure
cable.
