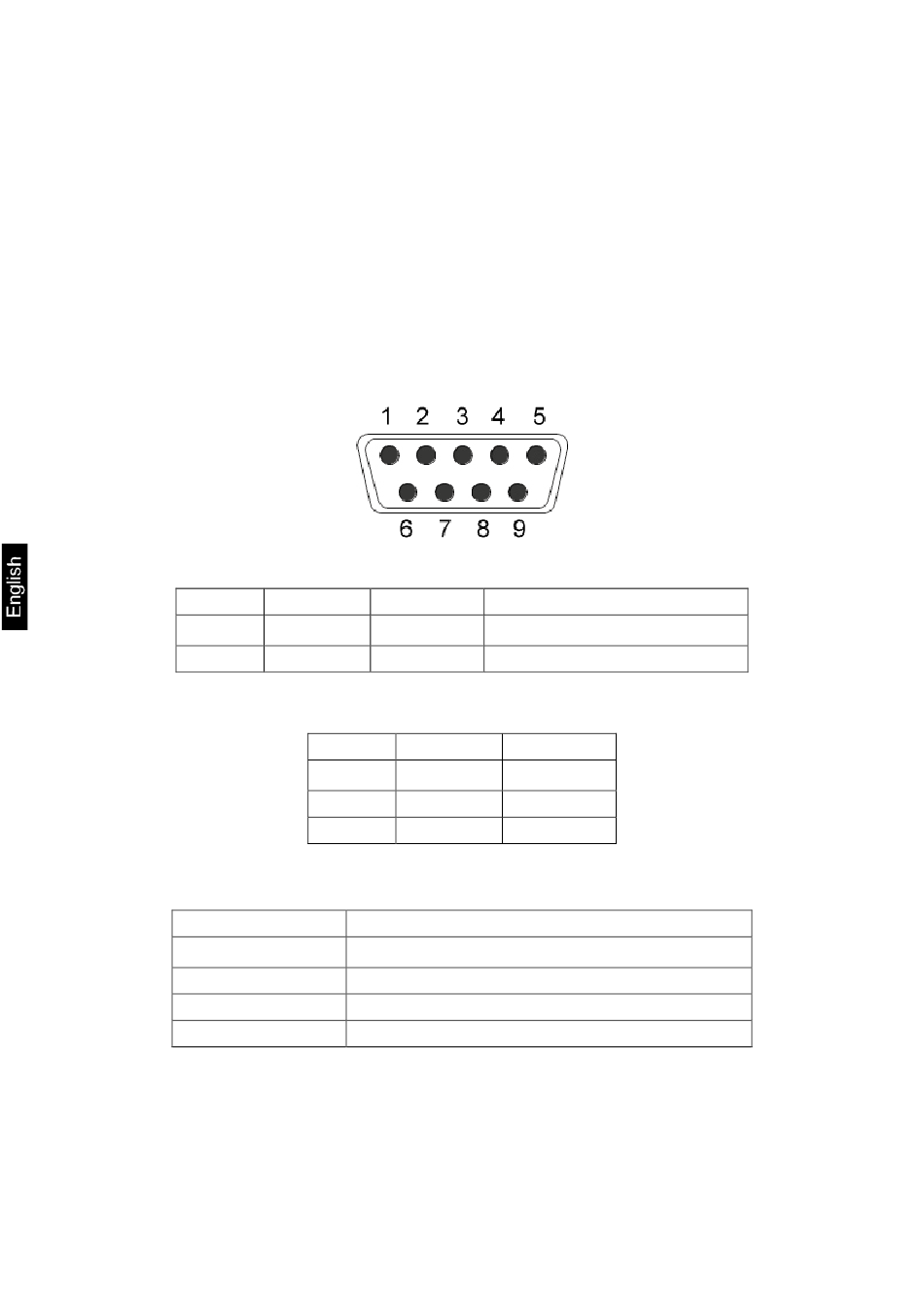

12 RS 232 interface

12.1 Technical data

RS 232 connection to output of weighing data
ASCII code
Baud rate 1200 - 115200
8 data bits
No parity

12.2 Pin allocation of balance output bushing:

Pin 2
Pin 3
Pin 5
9pin D Connector:

12.3 Remote control commands

Remote control
T
Z
S
W
34
RXD Input
TXD Output
―
GND
Balance
―
Pin 2
―
Pin 3
―
Pin 5
d
Output of stable weighing values
Output of stable or unstable weighing results
Receiving data
Transmission data
Signal ground
computer
Pin 3
Pin 2
Pin 5
Computer
Taring
Zeroing
