THERMASGARD ®

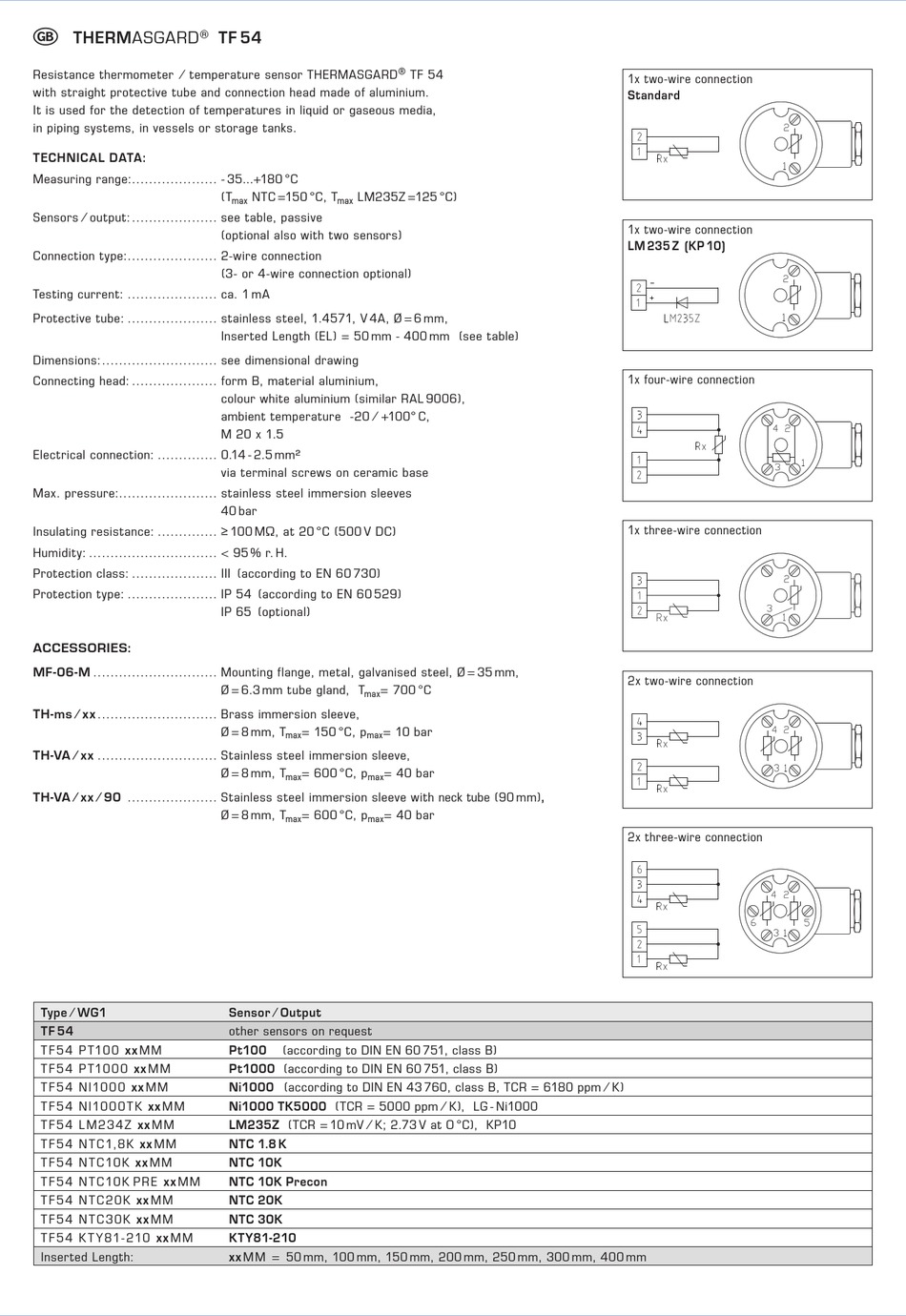

Resistance thermometer ⁄ temperature sensor THERMASGARD
with straight protective tube and connection head made of aluminium.
It is used for the detection of temperatures in liquid or gaseous media,
in piping systems, in vessels or storage tanks.

TECHNICAL DATA:

Measuring range: .................... - 35...+180 °C
Sensors ⁄ output: .................... see table, passive
Connection type: ..................... 2-wire connection
Testing current: ..................... ca. 1 mA
Protective tube: ..................... stainless steel, 1.4571, V 4A, Ø = 6 mm,
Dimensions: ........................... see dimensional drawing
Connecting head: .................... form B, material aluminium,
Electrical connection: .............. 0.14 - 2.5 mm²
Max. pressure: ....................... stainless steel immersion sleeves
Insulating resistance: .............. ≥ 100 MΩ, at 20 °C (500 V DC)
Humidity: .............................. < 95 % r. H.
Protection class: .................... III (according to EN 60 730)
Protection type: ..................... IP 54 (according to EN 60 529)

ACCESSORIES:

MF-06-M ............................. Mounting flange, metal, galvanised steel, Ø = 35 mm,
TH-ms ⁄ xx ............................ Brass immersion sleeve,
TH-VA ⁄ xx ............................ Stainless steel immersion sleeve,
TH-VA ⁄ xx ⁄ 90 ..................... Stainless steel immersion sleeve with neck tube (90 mm),
Type ⁄ WG1
TF 54
T F 5 4 P T10 0 xx M M
T F 5 4 P T10 0 0 xx M M
T F 5 4 NI10 0 0 xx M M
T F 5 4 NI10 0 0 T K xx M M
T F 5 4 L M 2 3 4 Z xx M M
T F 5 4 N T C1,8 K xx M M
T F 5 4 N T C10 K xx M M
T F 5 4 N T C10 K P R E xx M M
T F 5 4 N T C 2 0 K xx M M
T F 5 4 N T C 3 0 K xx M M
T F 5 4 K T Y 81- 210 xx M M
Inserted Length:
TF 54
(T NTC =150 °C, T LM235Z =125 °C)
max max
(optional also with two sensors)
(3- or 4-wire connection optional)
Inserted Length (EL) = 50 mm - 400 mm (see table)
colour white aluminium (similar RAL 9006),
ambient temperature -20 ⁄ +100° C,
M 20 x 1.5
via terminal screws on ceramic base
40 bar
IP 65 (optional)
Ø = 6.3 mm tube gland, T = 700 °C
max
Ø = 8 mm, T = 150 °C, p = 10 bar
max max
Ø = 8 mm, T = 600 °C, p = 40 bar
max max
Ø = 8 mm, T = 600 °C, p = 40 bar
max max
Sensor ⁄ Output
other sensors on request
Pt100 (according to DIN EN 60 751, class B)
Pt1000 (according to DIN EN 60 751, class B)
Ni1000 (according to DIN EN 43 760, class B, TCR = 6180 ppm ⁄ K)
Ni1000 TK5000 (TCR = 5000 ppm ⁄ K), LG - Ni1000
LM235Z (TCR = 10 mV ⁄ K; 2.73 V at O °C), KP10
NTC 1.8 K
NTC 10K
NTC 10K Precon
NTC 20K
NTC 30K
KTY81-210
xx M M = 50 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm
®
TF 54
1x two-wire connection
Standard
1x two-wire connection
LM 235 Z (KP 10)
1x four-wire connection
1x three-wire connection
2x two-wire connection
2x three-wire connection
