2 Dimensioned Sketch

344
Figure 2: Dimensioned sketch of DA 1200

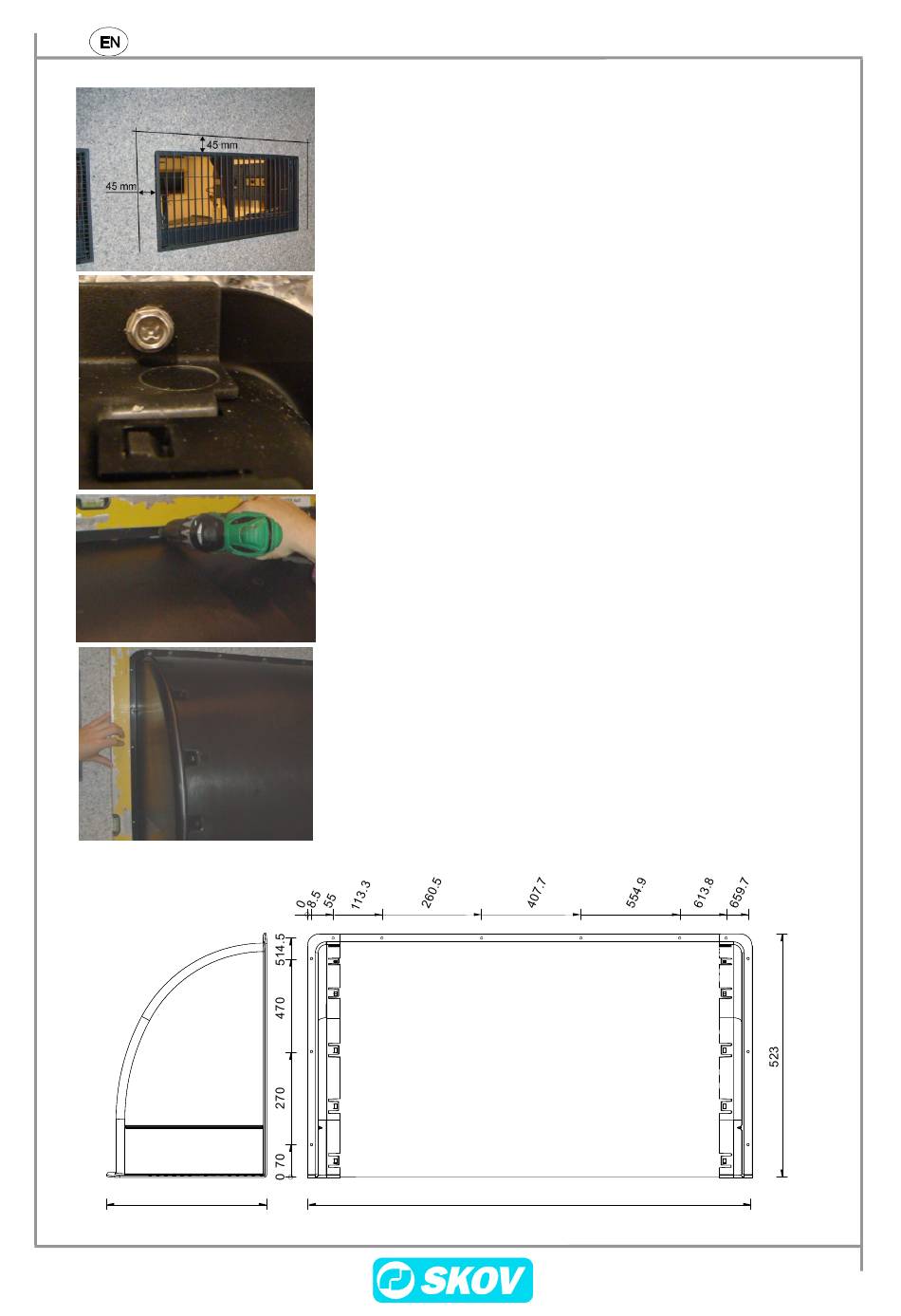

Mark up a mounting line 45mm from the existing inlet.
Drill holes according to the dimensioned sketch, Figure 2:
Dimensioned sketch of DA 1200.
(Self-cutting screws can be used for some types of walls)
First you have to fasten a screw where the edge of the centre
piece and the side overlap.
Use a spirit level to make sure that the inlet cover is level.
Use a spirit level in connection with the side pieces to ensure a
nice finish.
Fasten screws in all the screw holes.
DA 1200 inlet cover
Mounting Guide
