English; Product Description; Mounting Guide - Skov DA 1200 Montageanleitung

Mounting Guide

PRODUCT DESCRIPTION

The DA 1200 inlet cover is a covering abating the impact on the house environment caused by wind
and solar irradiation.
The inlet cover is made of injection-moulded PP (polypropylene) which is dirt-repellent and easy to
clean.
The inlet cover is easy to assemble as it only consists of three parts integrating snap locks and
assembly marks. Assembly instructions are printed on the side piece.
3
6

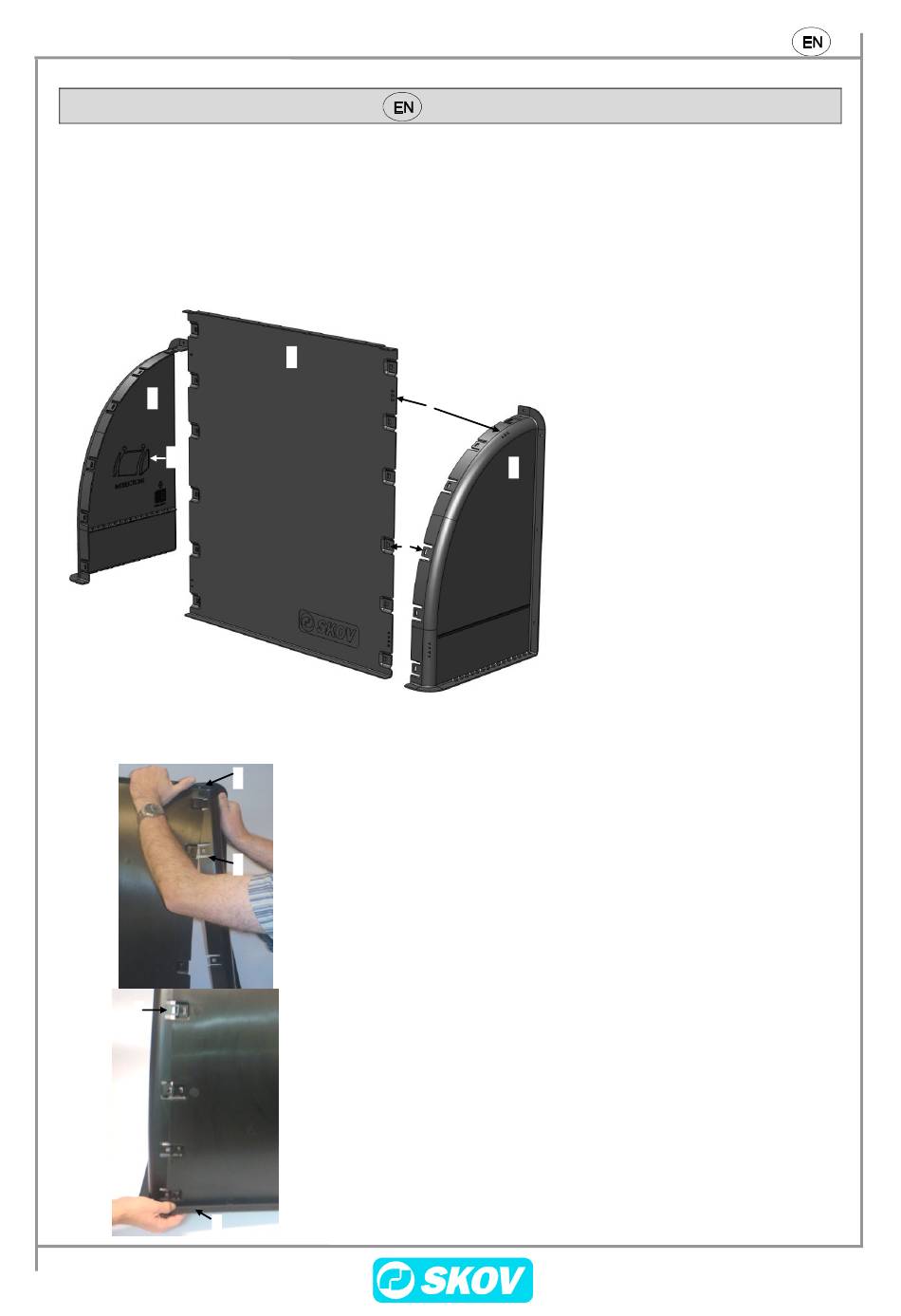

Figure 1: Assembly of DA 1200
MOUNTING GUIDE
1
2
2
1

ENGLISH

1
5
4
Click the right side piece into place on the centre piece.
Make sure that:
1. the edge of the centre piece is on the top
2. the snap lock on the side piece is on the top.
Click the left side piece into place on the centre piece.
Make sure that:
1. the edge of the centre piece is on the top
2. the snap lock on the side piece is on the top.
DA 1200 inlet cover
1. Inlet cover - DA 1200 centre
piece
2. Inlet cover - right side piece
3. Inlet cover - left side piece
2
4. Snap lock
5. Assembly marks
6. Assembly instructions
