LINEA
30504
Flat control with push-buttons and 2.4 GHz radio transmitter, Bluetooth
technology Low Energy, energy harvesting power supply that uses a built-in
electrodynamic generator, optional version with dedicated colour buttons
Eikon 31506 or 31506.2 - 2 modules.
The Bluetooth technology Low Energy control operates at 2.4GHz and it can be associated
with the connected devices in the View Wireless system to control an actuator or to activate
a scenario. At application level, it is also compatible with BLE receivers that use Casambi
protocol/technology and Open Standard Bluetooth technology in XICATO Controls systems
that display the "Works with XICATO Controls" or "Powered by XICATO Controls" logo. Refer
to the websites of the two manufacturers (www.casambi.com and www.xicato.com) for the
list of lighting companies that that adopt this technology, or contact the Vimar sales network.
MAIN CHARACTERISTICS.
• Rated supply voltage (Vn): no kind of power supply is needed.
• Maximum RF transmission power: 0.4dBm / 1.1mW
• Frequency range (min/max): 2402 MHz / 2480 MHz
• Communication standard Bluetooth technology Low Energy (BLE)
• Range: 75 m in an open field: this value is reduced depending on the environment and instal-
lation method (presence of metal plates, concrete, metal walls and/or partitions).
• Default radio channels used: CH 37 / 38 / 39 (2402 MHz / 2426 MHz / 2480 MHz).
• Auxiliary interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 and 3).
• Device identification: individual 48 bit device ID (factory programmed).
• Safety: AES128 (CBC mode) with sequence code.
• Installation: flush or surface mounting. Surface mounting installation, thanks to the special
mounting frame (art. 30507.x), can be on materials such as wood, masonry, etc.
• Operating temperature: -25°C to +65°C (for indoor use)
• Configurable in combination with the devices in the View Wireless system via the View
Wireless App.
CAUTION: When the button is pressed, for the radio command to be transmitted, you
need to hear a mechanical "click".
By attaching the buttons 31506 or 31506.2 to the flat control with two rocker buttons, you can
create a control point via radio.
The buttons can be specially customized with the symbols illustrated in the Vimar cat-
alogues.

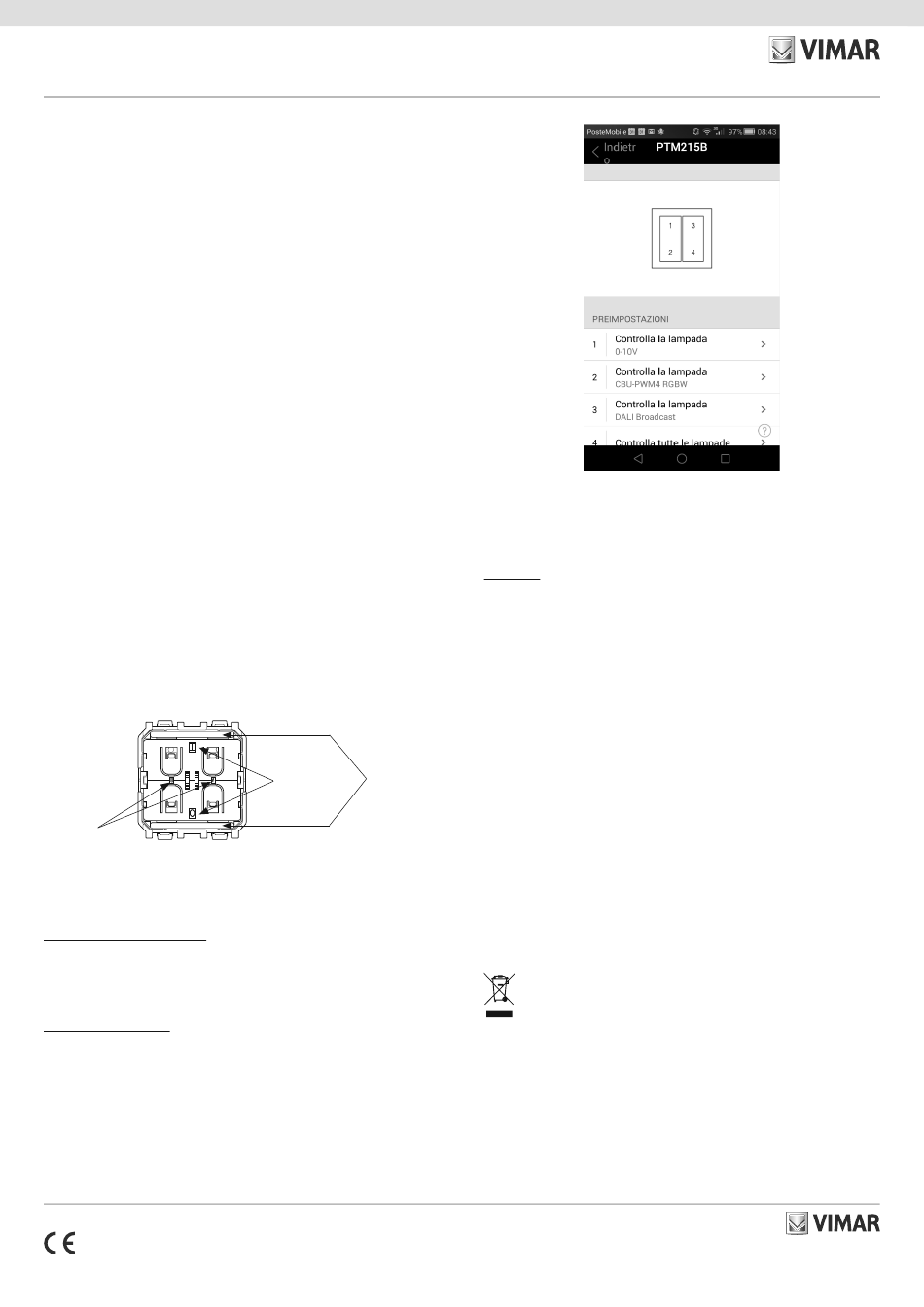

USER INTERFACE.
30504 devices provide four push button contacts. They are grouped into two channels (Channel
A and Channel B) each containing two push button contacts (State O and State I). The state
of all four push button contacts (pressed or not pressed) is transmitted together with a unique
device identification (48 Bit device ID) whenever the energy bar is pushed or released.
CHANNEL
DEVICE CONFIGURATION.
The following procedures allow the device to interact with a receiver or to operate within a
specific network. For full details, refer to the Installer manual that can be downloaded from the
website www.vimar.com.
Configuration with XICATO Controls
To configure the device and put it into service paired with a lamp or driver equipped with Open
Standard Bluetooth technology in a XICATO Controls system that displays the "Works with
XICATO Controls" or "Powered by XICATO Controls" logo, download the Xicato Control Panel
(XCP) free of charge for Windows or Mac by sending an email with your details to download@
xicato.com.
Configuration with Casambi
Use the APP that can be downloaded free of charge from the app Store to configure commu-
nication with Casambi.
• To teach the control, use an Android smartphone equipped with NFC technology (smart-
phones with the iOS operating system do not support this technology).
• Select the NFC option and Bluetooth technology on the smartphone.
• Open the Casambi APP.
• Create a new network or open one that already exists.
• Select Other and then Switches.
• Once the data has been acquired, bring the smartphone close to the 30504 control to be
configured; it will be recognised and the letters PTM215B will be displayed.
30504 01 2207
®
ENERGY
STATUS
ACTIVATION
• Finally, select the required function for each of the four push-buttons.
IMPORTANT: If a control has been inserted into the Casambi network and must then be
used in a Xicato network, it is necessary to reset it to the factory conditions. Similarly,
a control that has been inserted into the Xicato network must be reset before it can be
used in a Casambi network.
Device reset
Press the four push-buttons (A0, AI, B0 and BI) simultaneously, and press the activation bar for
at least 10 s; only release the push-buttons after activating the bar (it is not necessary to hold
them down for the full 10 s). This will return the device to the factory conditions.
INSTALLATION RULES.
• Installation should be carried out by qualified staff in compliance with the current regulations
regarding the installation of electrical equipment in the country where the products are
installed.
• The device may be installed on the following mounting frames: 30507.x, 30602, 30603,
30613, 30614, 30617.
REGULATORY COMPLIANCE.
RED Directive.
EN 60950-1, EN 301 489-17, EN 300 328, EN 62479 standards.
Vimar SpA declares that the radio equipment complies with Directive 2014/53/EU. The full text
of the EU declaration of conformity is on the product sheet available at the following Internet
address: www.vimar.com.
FCC (United States) Regulatory Statement
IC (Industry Canada) Regulatory Statement
This device complies with part 15 of the FCC Rules and with Industry Canada licence-exempt
RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation of the device.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
WEEE - Information for users
If the crossed-out bin symbol appears on the equipment or packaging, this means the product must not
be included with other general waste at the end of its working life. The user must take the worn product
to a sorted waste center, or return it to the retailer when purchasing a new one. Products for disposal can
be consigned free of charge (without any new purchase obligation) to retailers with a sales area of at least
400 m , if they measure less than 25 cm. An efficient sorted waste collection for the environmentally friendly
2
disposal of the used device, or its subsequent recycling, helps avoid the potential negative effects on the
environment and people's health, and encourages the re-use and/or recycling of the construction materials.
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
