Dear Customer,
Before you use the drill for the first time, please read
these instructions and note the information for the
tool's operation and maintenance.
Always keep this manual with the tool.

1. Items supplied

1 drill
1 plug-in nipple R 1/4"
1 scroll chuck
1 chuck key

2. Technical data

Permissible working pressure max.
Air consumption
Bit Ø max.
Drilling capacity
Wood:
Alumunium:
Steel:
Speed
Recommended hose diameter
Compressed air quality
Air supply
via conditioning unit with filter pressure reducer
and mist oiler
Compressor capacity
approx. 250 l/min.
equivalent to a motor rating of 2.2 kW.
Work settings
6 bar working pressure set at the pressure
reducer or filter pressure reducer
Please note:
When working with the drill, be sure to wear the
necessary protective clothing, particularly
goggles.
Observe the safety regulations.
4
Seite 4

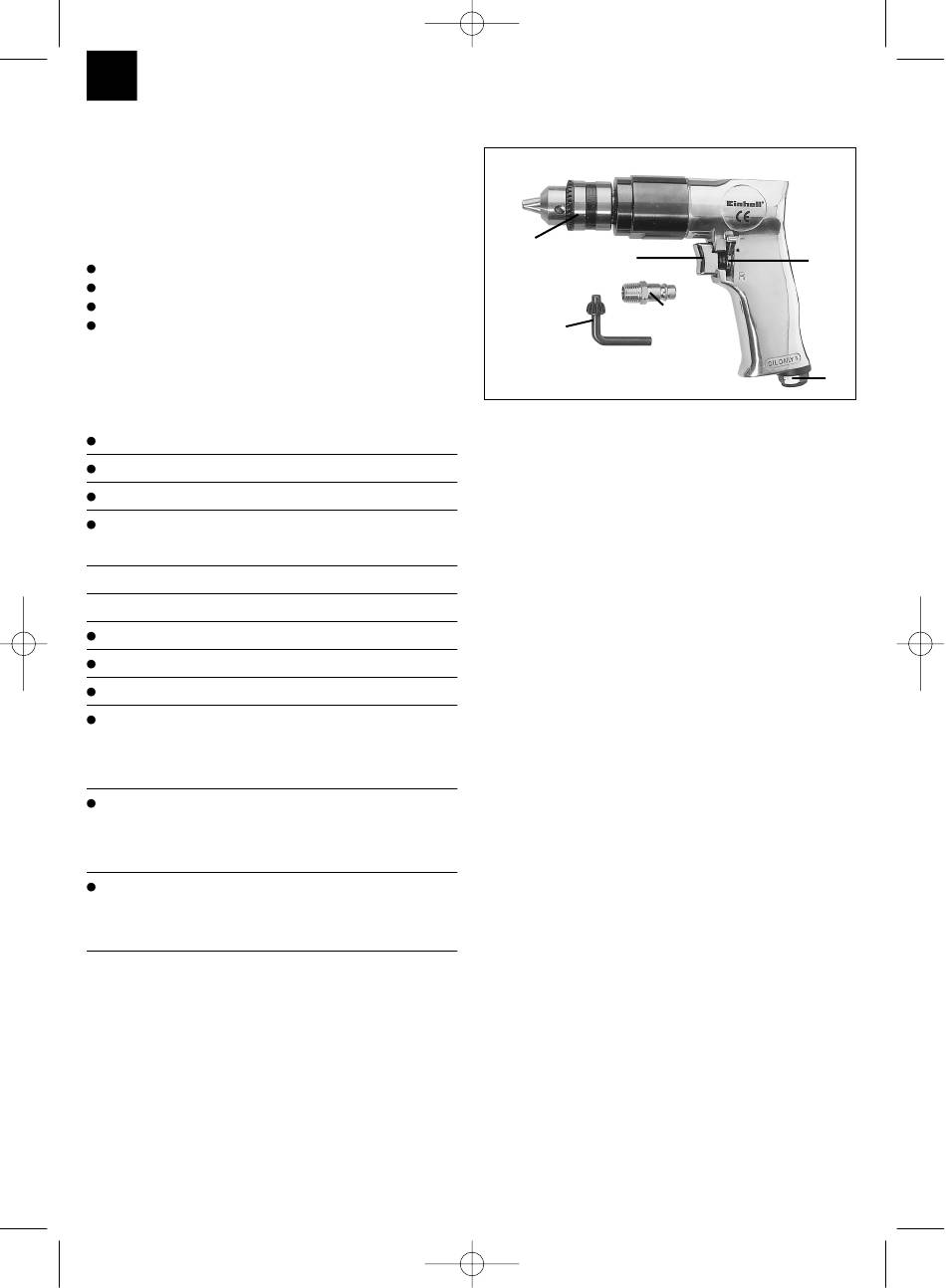

3. Illustration
Item
6 bar
1
113 l/min.
4
10 mm
5
7
17
max. 10 mm
19
max. 10 mm
max. 6 mm
1800 min -1
Ø 9 mm

4. Proper use

cleaned and oiled
The drill is a pneumatic tool for general use.
It is ideal e.g. for wood, aluminium and steel
assembly work.
The exhaust air leaves the tool through the bottom of
the housing.
Repairs and maintenance work are to be carried out
only by authorized specialist workshops.
Please note!
The power of the tool will be reduced if you use a
hose that has too small an inner diameter or
which is too long.
17
7
5
19
Description
selector lever
air connection (reducer)
plug-in nipple for the air supply
trigger lever
chuck
chuck key
1
4
