3.3 Assignment of DMX channels

NOTE: Basic knowledge of DMX-512 is required for DMX control!
4-Channels Mode (4-ch):
Channel Function
1 Red
2 Green
3 Bleu
4 White
9-Channels Mode (9-ch):
Ch Function
2 Dimmer
2 Red
3 Greed
4 Blue
5 White
6 Strobe
7
AUTO Mode
8 Speed
9 Sound control

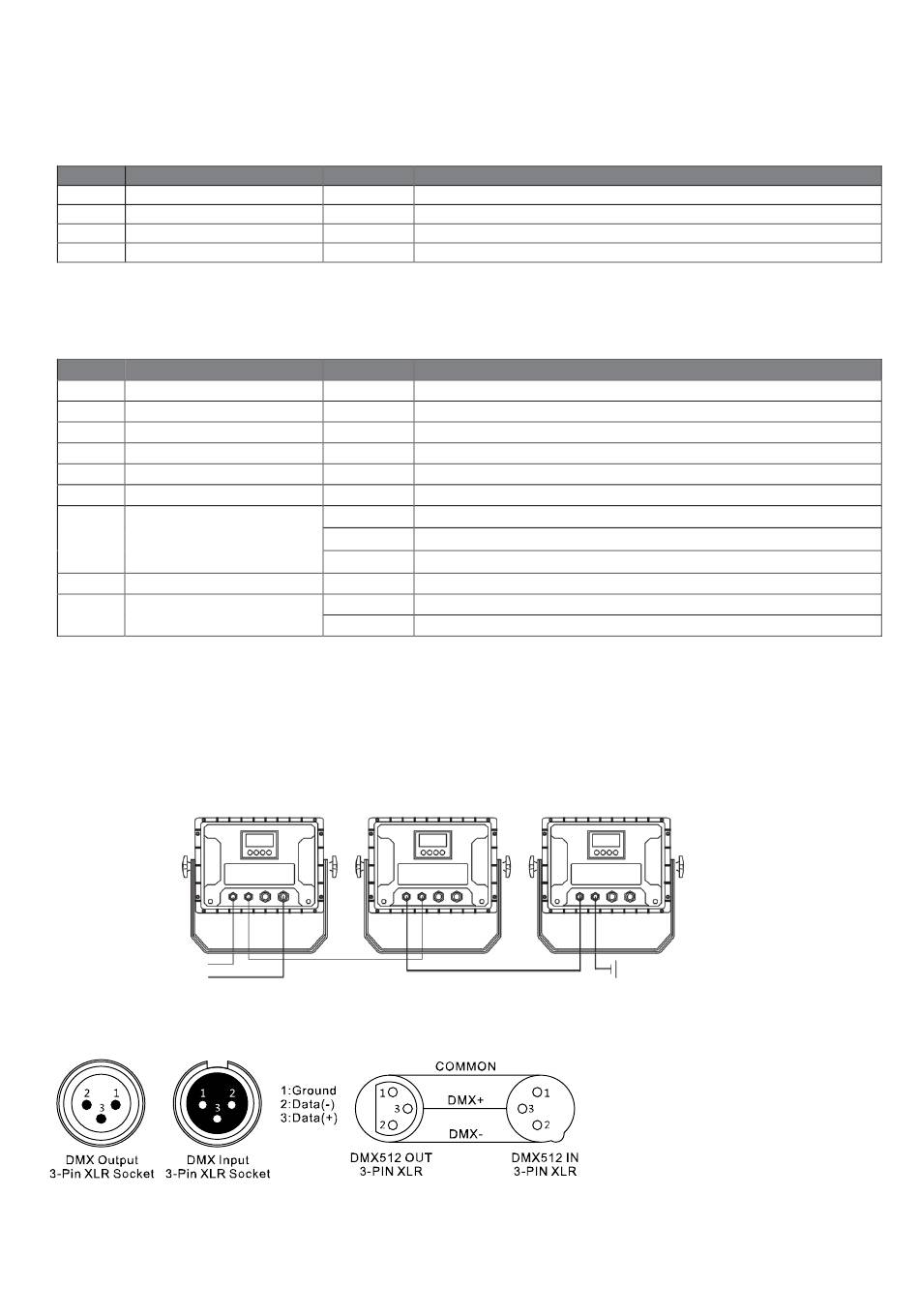

3.4 Connections in „DMX" mode:
DMX stands for Digital Multiplex and allows the digital control of several DMX devices via a common control cable.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the
output of the first DMX device to the input of the second one and so on to form a serial connections.
DMX connectors:
A three-pin XLR jack serves as a DMX output, a three-pin XLR plug serves as a DMX input.
All manuals and user guides at all-guides.com
Value Description
Red from 0 – 100% dimming
0-255
Green from 0 – 100% dimming
0-255
Bleu from 0 – 100% dimming
0-255
White from 0 – 100% dimming
0-255
Value Description
0-255 Master Dimmer von 0 - 100%
Red from 0 – 100% dimming
0-255
Green from 0 – 100% dimming
0-255
Blue from 0 – 100% dimming
0-255
White from 0 – 100% dimming
0-255
0-255 Strobe Effect, Speed increasing
0-015 Blackout
016-135 Static Colors
Automatic color change, speed increasing.
136-255
Speed of automatic color change
0-255
Music control disactivated
0-127
128-255 Music control activated
