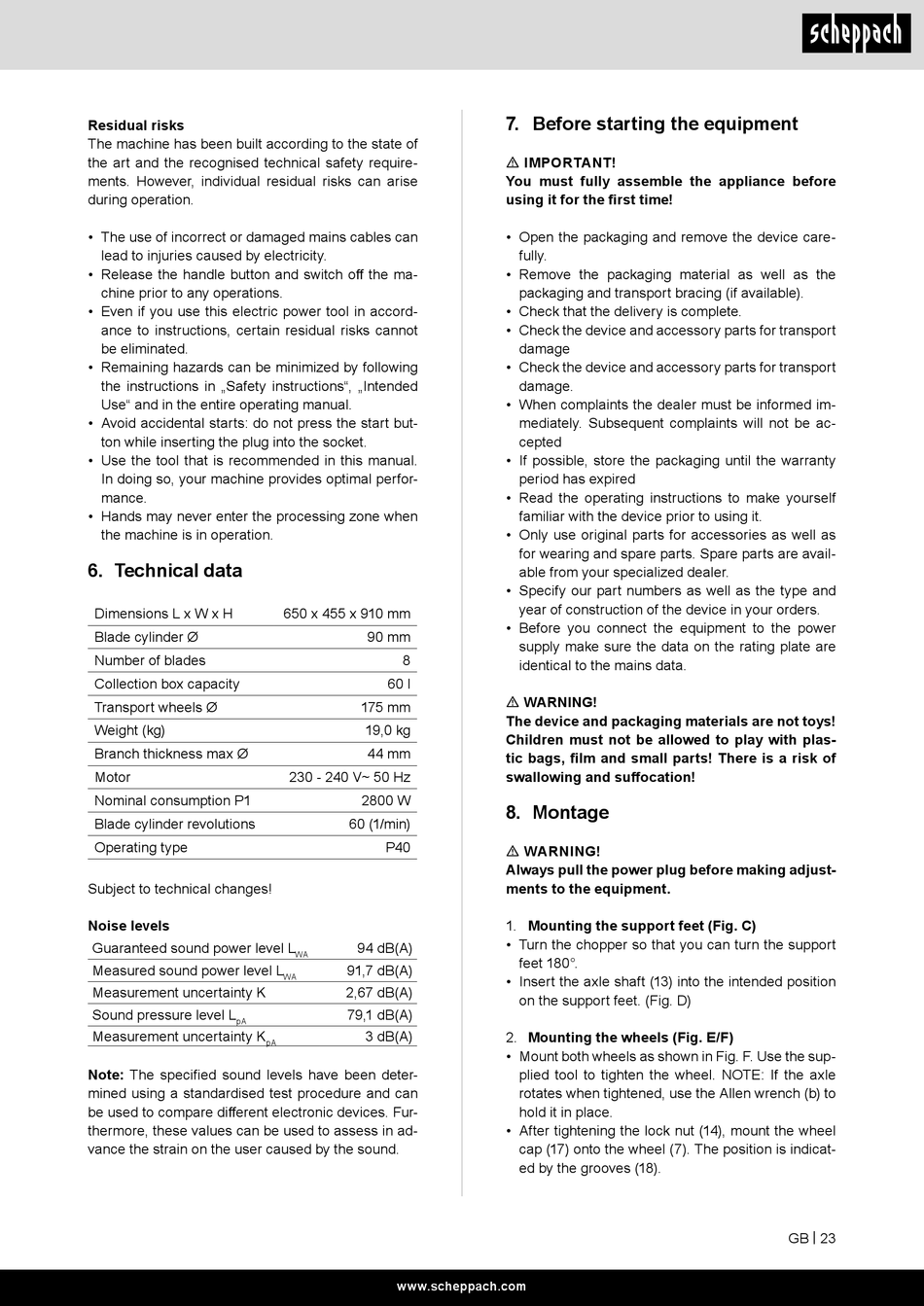

Residual risks
The machine has been built according to the state of
the art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Even if you use this electric power tool in accord-
ance to instructions, certain residual risks cannot
be eliminated.
• Remaining hazards can be minimized by following
the instructions in „Safety instructions", „Intended
Use" and in the entire operating manual.
• Avoid accidental starts: do not press the start but-
ton while inserting the plug into the socket.
• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation.

6. Technical data

Dimensions L x W x H
Blade cylinder Ø
Number of blades
Collection box capacity
Transport wheels Ø
Weight (kg)
Branch thickness max Ø
Motor
Nominal consumption P1
Blade cylinder revolutions
Operating type
Subject to technical changes!
Noise levels
Guaranteed sound power level L
Measured sound power level L
Measurement uncertainty K
Sound pressure level L
pA
Measurement uncertainty K
Note: The specified sound levels have been deter-
mined using a standardised test procedure and can
be used to compare different electronic devices. Fur-
thermore, these values can be used to assess in ad-
vance the strain on the user caused by the sound.
650 x 455 x 910 mm
90 mm
8
60 l
175 mm
19,0 kg
44 mm
230 - 240 V~ 50 Hz
2800 W
60 (1/min)
P40
94 dB(A)
WA
91,7 dB(A)
WA
2,67 dB(A)
79,1 dB(A)
3 dB(A)
pA
www.scheppach.com

7. Before starting the equipment

m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage
• Check the device and accessory parts for transport
damage.
• When complaints the dealer must be informed im-
mediately. Subsequent complaints will not be ac-
cepted
• If possible, store the packaging until the warranty
period has expired
• Read the operating instructions to make yourself
familiar with the device prior to using it.
• Only use original parts for accessories as well as
for wearing and spare parts. Spare parts are avail-
able from your specialized dealer.
• Specify our part numbers as well as the type and
year of construction of the device in your orders.
• Before you connect the equipment to the power
supply make sure the data on the rating plate are
identical to the mains data.
m WARNING!
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!

8. Montage

m WARNING!
Always pull the power plug before making adjust-
ments to the equipment.
1. Mounting the support feet (Fig. C)
• Turn the chopper so that you can turn the support
feet 180°.
• Insert the axle shaft (13) into the intended position
on the support feet. (Fig. D)
2. Mounting the wheels (Fig. E/F)
• Mount both wheels as shown in Fig. F. Use the sup-
plied tool to tighten the wheel. NOTE: If the axle
rotates when tightened, use the Allen wrench (b) to
hold it in place.
• After tightening the lock nut (14), mount the wheel
cap (17) onto the wheel (7). The position is indicat-
ed by the grooves (18).
