Checking The Magnetic Indicator Bar - Bosch DAS 3000 Reparaturanleitung

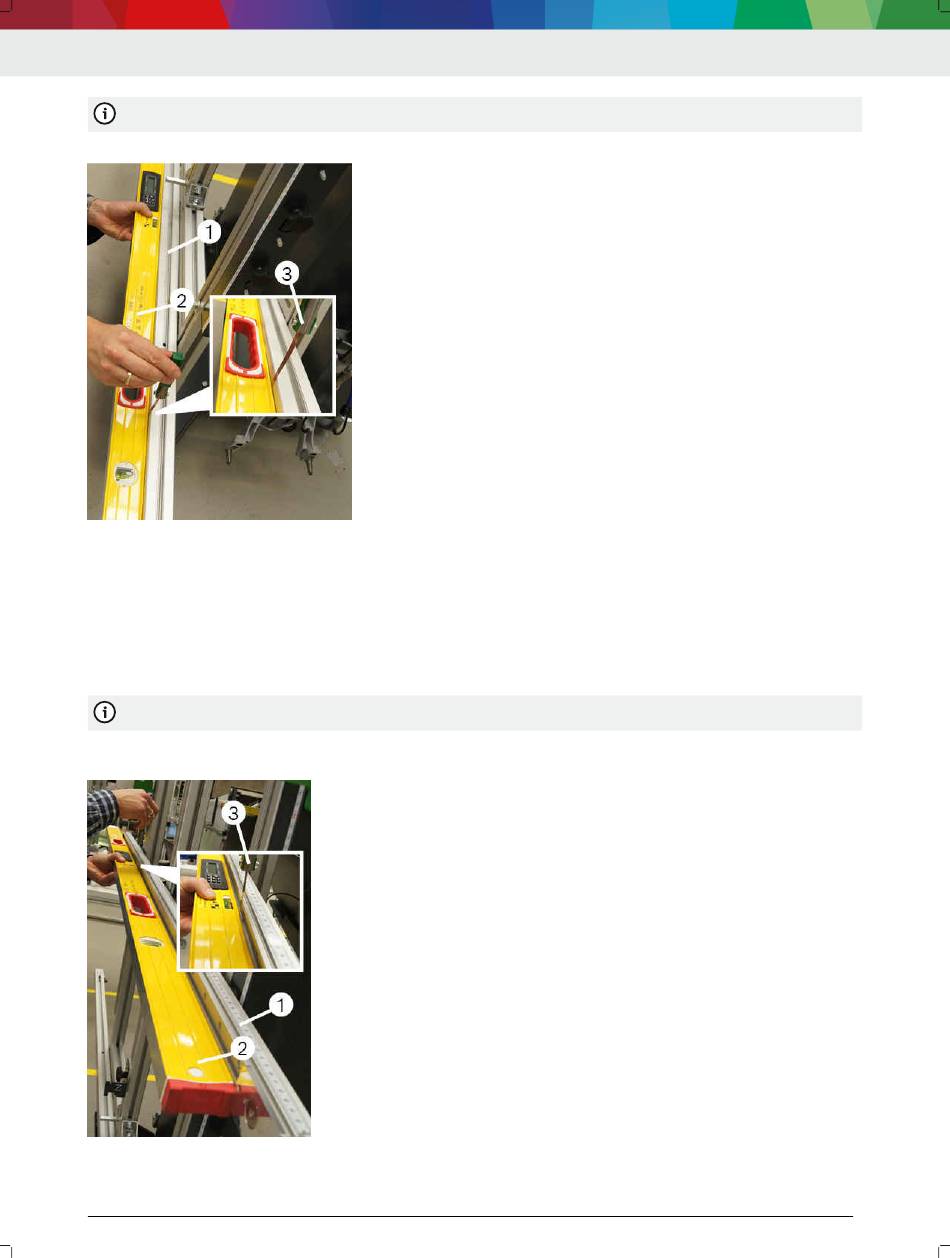

Maximum gap between the electronic spirit level and camera beam: < 1.3 mm
4. Replace the camera beam if the gap between the electronic spirit level and camera beam ≥ 1.3 mm.
(1) Camera beam
(2) Electronic spirit level
(3) Distance gauge
---
2.5

Checking the magnetic indicator bar

1. Move both slides to the right edge of the rail.
2. Place the electronic spirit level on the rail.
3. Check whether a gap is visible between the electronic spirit level and rail.
4. Measure the gap with a distance gauge.
Maximum gap between the electronic spirit level and rail: < 1.3 mm
5. Move both slides to the left edge of the rail and repeat the measurement.
6. Replace the magnetic indicator bar if the gap between the electronic spirit level and rail ≥ 1.3 mm.
(1) Magnetic indicator bar
(2) Electronic spirit level
(3) Distance gauge
---
Robert Bosch GmbH
DAS 3000 | 25 | en
1 689 975 292 | 2020-02-28
