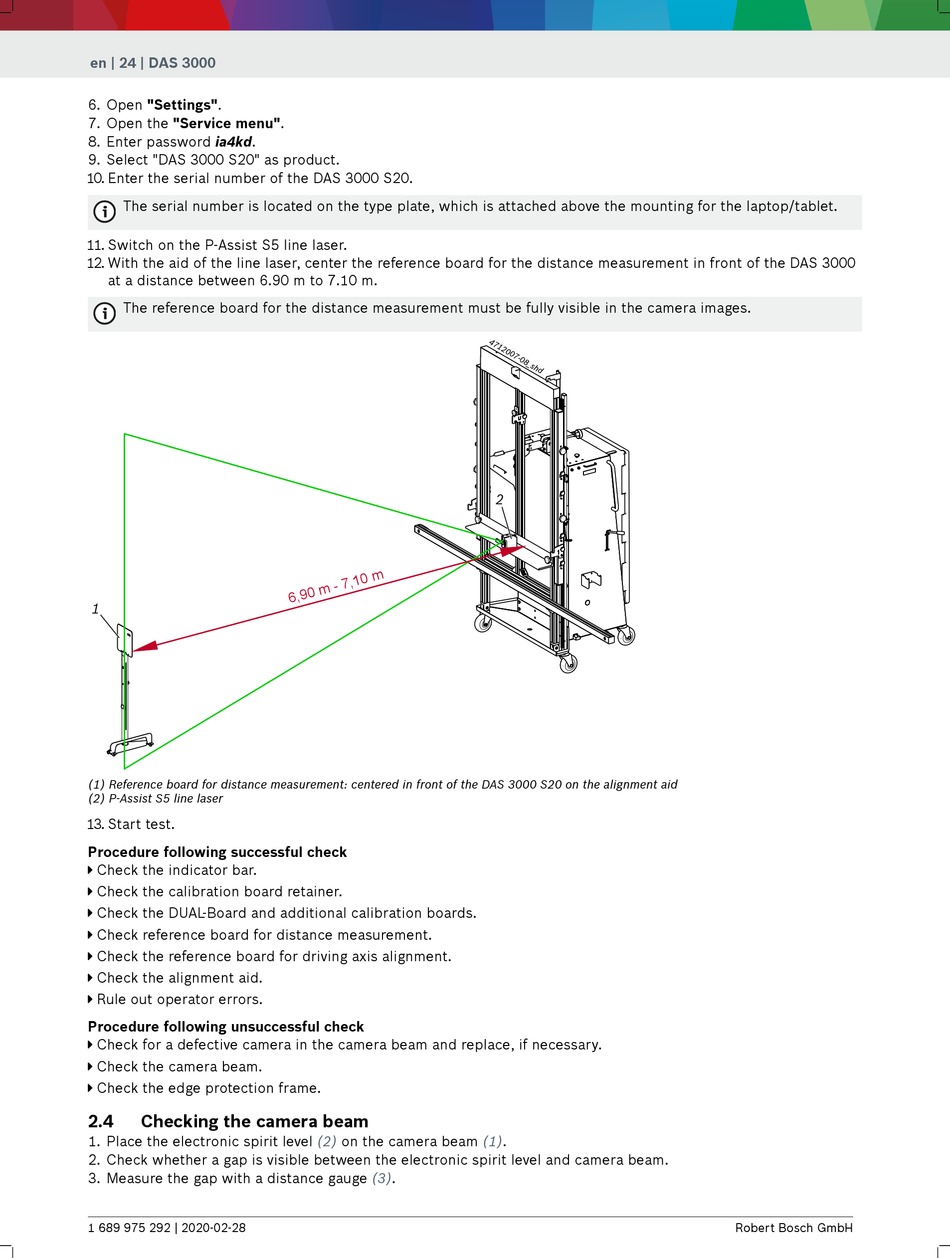

en | 24 | DAS 3000
6. Open "Settings".
7. Open the "Service menu".
8. Enter password ia4kd.
9. Select "DAS 3000 S20" as product.
10. Enter the serial number of the DAS 3000 S20.
The serial number is located on the type plate, which is attached above the mounting for the laptop/tablet.
11. Switch on the P-Assist S5 line laser.
12. With the aid of the line laser, center the reference board for the distance measurement in front of the DAS 3000
at a distance between 6.90 m to 7.10 m.
The reference board for the distance measurement must be fully visible in the camera images.
1
(1) Reference board for distance measurement: centered in front of the DAS 3000 S20 on the alignment aid
(2) P-Assist S5 line laser
13. Start test.
---
Procedure following successful check
 Check the indicator bar.
 Check the calibration board retainer.
 Check the DUAL -Board and additional calibration boards.
 Check reference board for distance measurement.
 Check the reference board for driving axis alignment.
 Check the alignment aid.
 Rule out operator errors.
---
Procedure following unsuccessful check
 Check for a defective camera in the camera beam and replace, if necessary.
 Check the camera beam.
 Check the edge protection frame.
---
2.4

Checking the camera beam

1. Place the electronic spirit level
2. Check whether a gap is visible between the electronic spirit level and camera beam.
3. Measure the gap with a distance gauge (3).
1 689 975 292 | 2020-02-28
2
(2) on the camera beam (1).
