3 A uto Iris Lens Connector
Provides power source and control/ DC signal with
iris lens that are required to control the iris of the lens
F lange Back Adjustable Ring
4
Used to adjust the back focus of the camera.
5 A uto Iris Lens Control Cable
Transfers the control signal from the camera to the
iris lens.
Things to keep in mind during
installation and Use
• Do not disassemble the camera on your own.
• Always be careful when handling the camera.
Do not strike the camera by your fists or shake
it. Please be careful not to be careless when
storing and operating it.
• Do not place or operate the camera in any wet
environment such as rain or wet surfaces.
• Do not clean the camera with rough sandpaper.
Please always use a dry cloth when cleaning it.
• Put the camera in a cool area free from direct
sunlight. Otherwise, the camera may be dam-
aged.
10

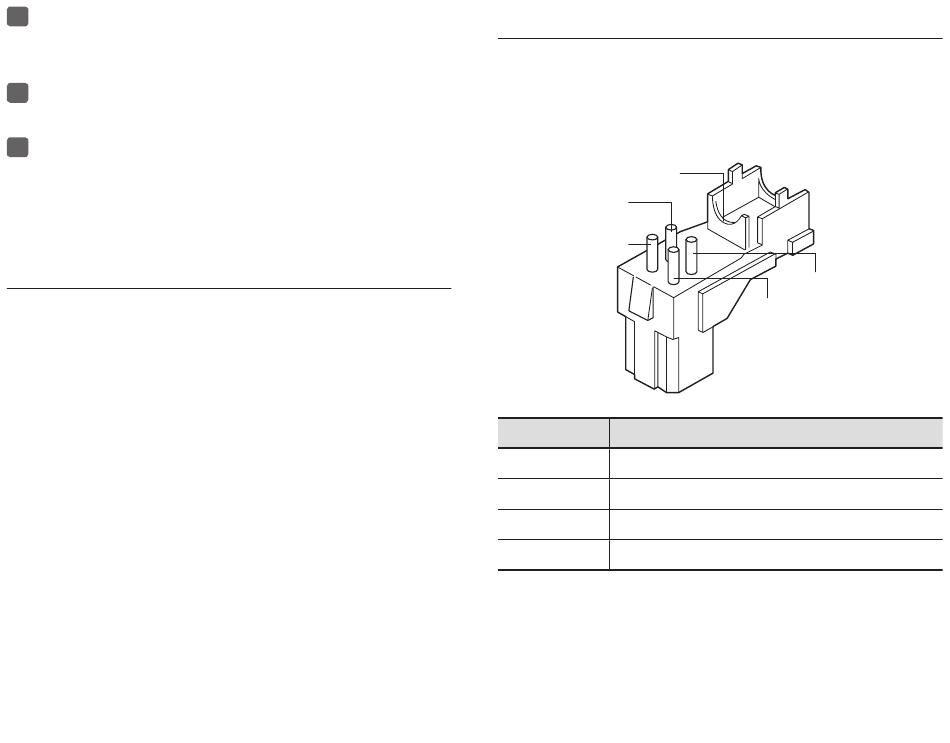

Connect the auto iris lens connector

Remove the sheath round the iris control cable and
connect it to each of the auto iris lens connector as
described below.
Rib
Pin3
Pin1
Pin Number
1
2
3
4
• This connector is not provided.
Pin4
Pin2
DC Control Type
Damp(–)
Damp(+)
Drive(+)
Drive(–)
