We thank you for selecting our product. The STABILA REC-200 receiver you have just
purchased is a high-quality, easy to operate portable receiver suitable for displaying
height reference data from rotation laser units. We wish you much enjoyment of your
purchase.
The REC-200 receiver can receive laser beams from rotation lasers, even when these
are invisible to the naked eye.
We have endeavoured to explain the unit's handling and functioning in as clear and
comprehensible a manner as possible. If, however, you still have any unanswered
questions, we should be pleased to provide advice over the telephone at any time
on the following telephone number: 0049 / 6346 / 3 09-0

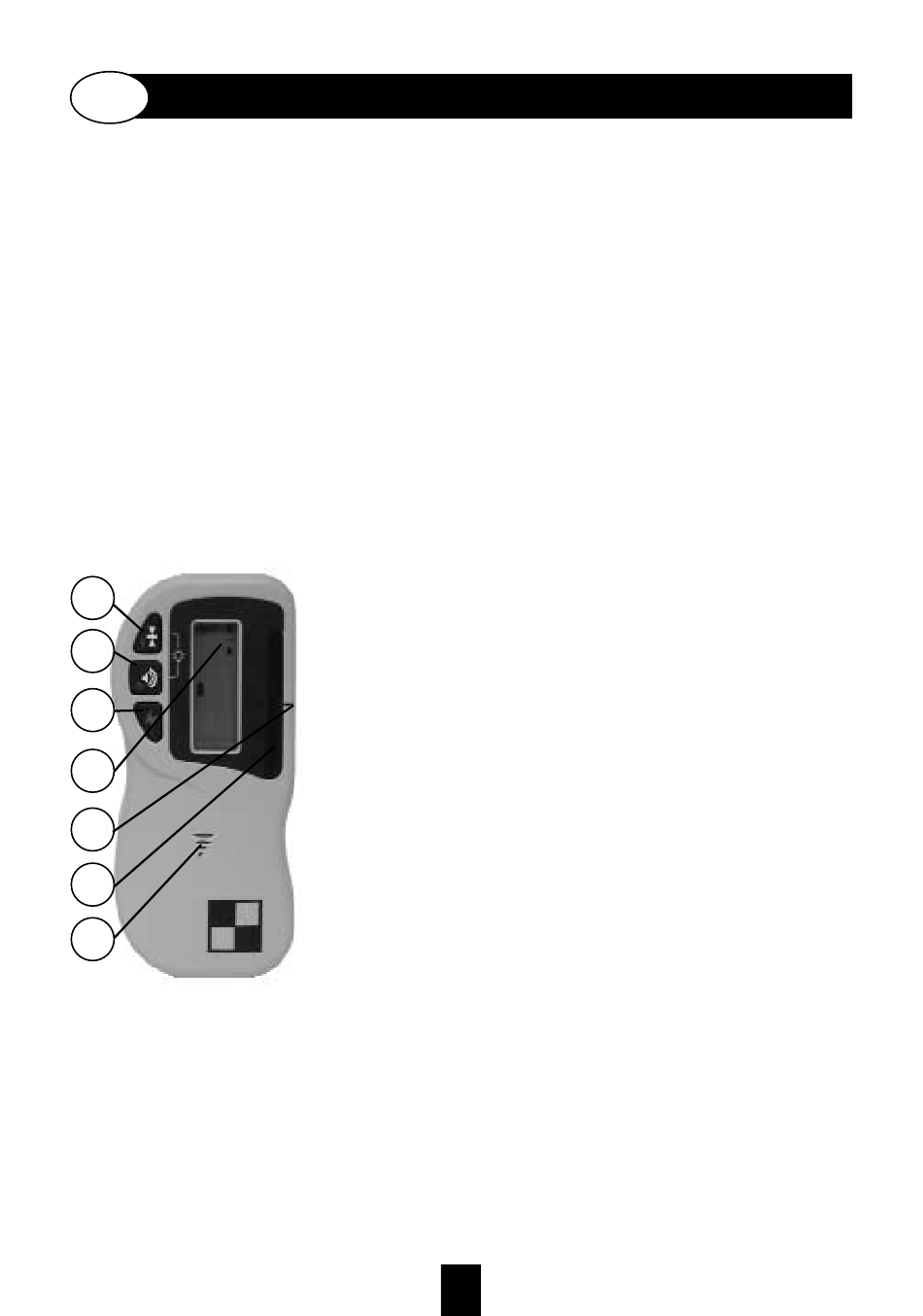

Main components

3
2
1
4
5
6
7
5. Marking groove:
For marking reference heights - the upper edge of the receiver is 5 cm higher than the
centre position ("Height OK").
6. Laser receiver glass:
Protects the photocells, which lie behind it and receive the laser beam.
7. Also the beeper sounds when a laser beam is received. A rapid beep indicates
"too high", an extended beep indicates "Height OK" and a long beep indicates "
too low".
1. Power Switch:
Press once to turn On. Unit beeps and
LCD's turn on to confirm power is on. Press and hold for
2 seconds to turn off. Unit beeps and LCD's turn off.
2. Beeper Switch:
Selects the sound level. Pressing switch cycles Loud, Off,
and Low. When sound is off, 1 beep indicates laser is detec-
ted.
3. Accuracy Switch:
Selects detection accuracy. Pressing switch cycles through
4 accuracy options.
4. Liquid Crystal Display (LCD):
Front LCD indicates the detectors position relative to the
laser beam and other detector settings.
