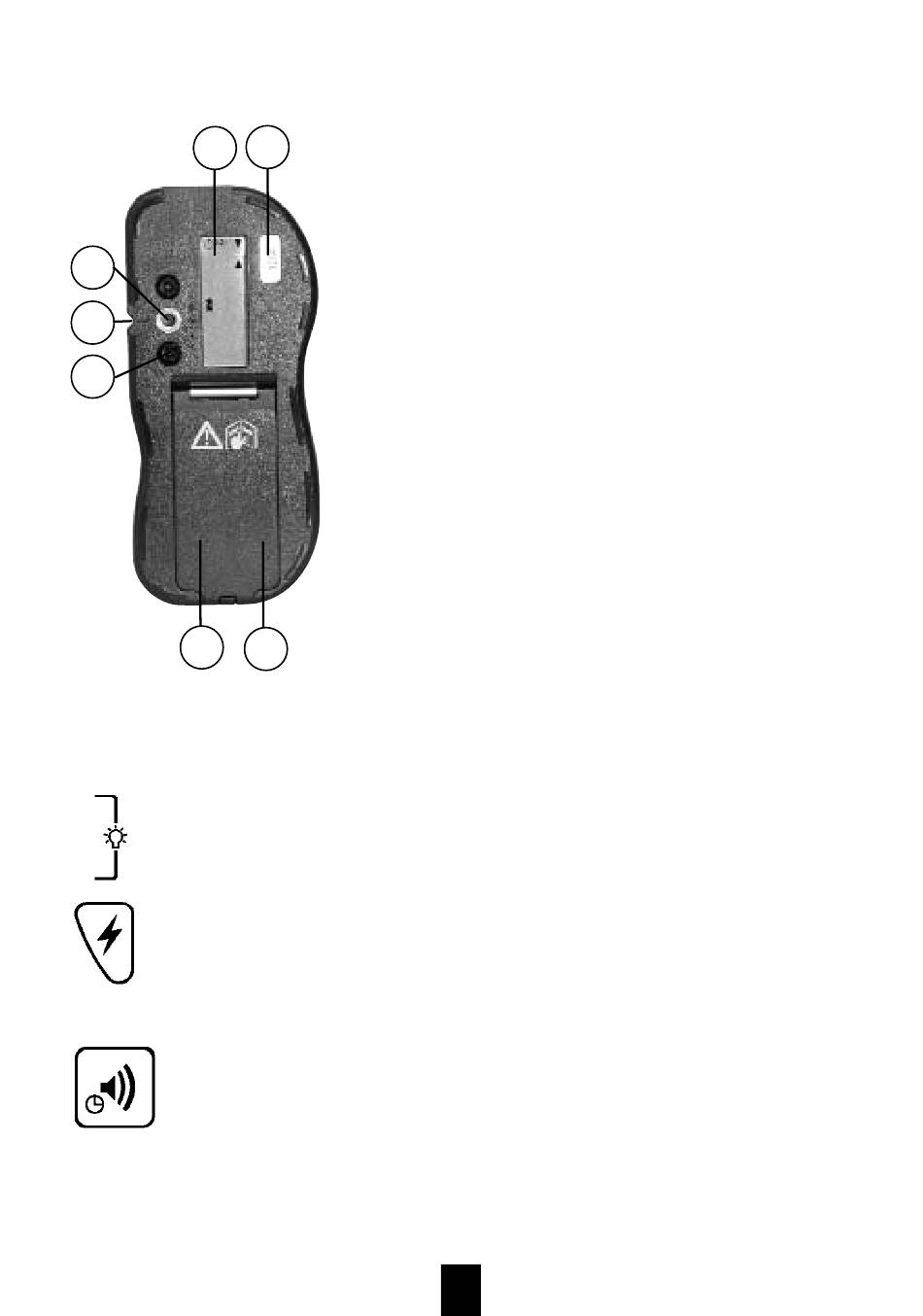

Rear View
13
8
9
10
11
Secondary Switch Functions
LCD Backlighting:
Pressing the Beeper and Accuracy switches together turns the LCD backlight
on. The backlight is used in dim light conditions to aid in viewing the LCD.
Pressing both switches again turns the backlight off.
The Power switch functions as a "shift" key. When the unit is on, pressing
and holding this switch enables the secondary switch functions. These
switch functions are used to change the automatic shut-off time and to
access the industrial alignment modes.
Automatic Shut Off:
With power On, press and hold the Power switch and press the Beeper
switch to change the auto shut off time. Choices are 30 minutes (5hr) or
24 hours (24h). The selection will be indicated by the clock and time sym-
bols on the LCD. A selection change will also behind cated by a short
beep. To completely disable automatic shut off, hold both switches for 2 seconds
until the unit beeps and all LCD symbols are displayed, then release. The time sym-
bols on the LCD will then turn off to confirm that the automatic shut-off is disabled.
8. Captive Screw Thread:
14
Detector thread insert accepts the rod clamp screw to
secure detector to the clamp.
9. Marking groove: For marking reference heights - the
upper edge of the receiver is 5 cm higher than the centre
position ("Height OK").
10. Clamp Guides - 2 dimples help align rod clamp.
11. Battery compartment door:
For 2 AA (LR6) batteries. When inserting the batteries,
please ensure that the polarity is correct, as shown on the
drawing in the label inside. Pressing the cover onto the
seal ensures dust and water-tightness. Use a coin on the
clip to open the door. The ID label is inside.
12. Battery Door: Waterproof compartment houses 2 x
"AA" alkaline batteries.
13. Rear LCD: Functions the same as the front LCD.
14. Serial number label
12
11
