How to install:

4
5

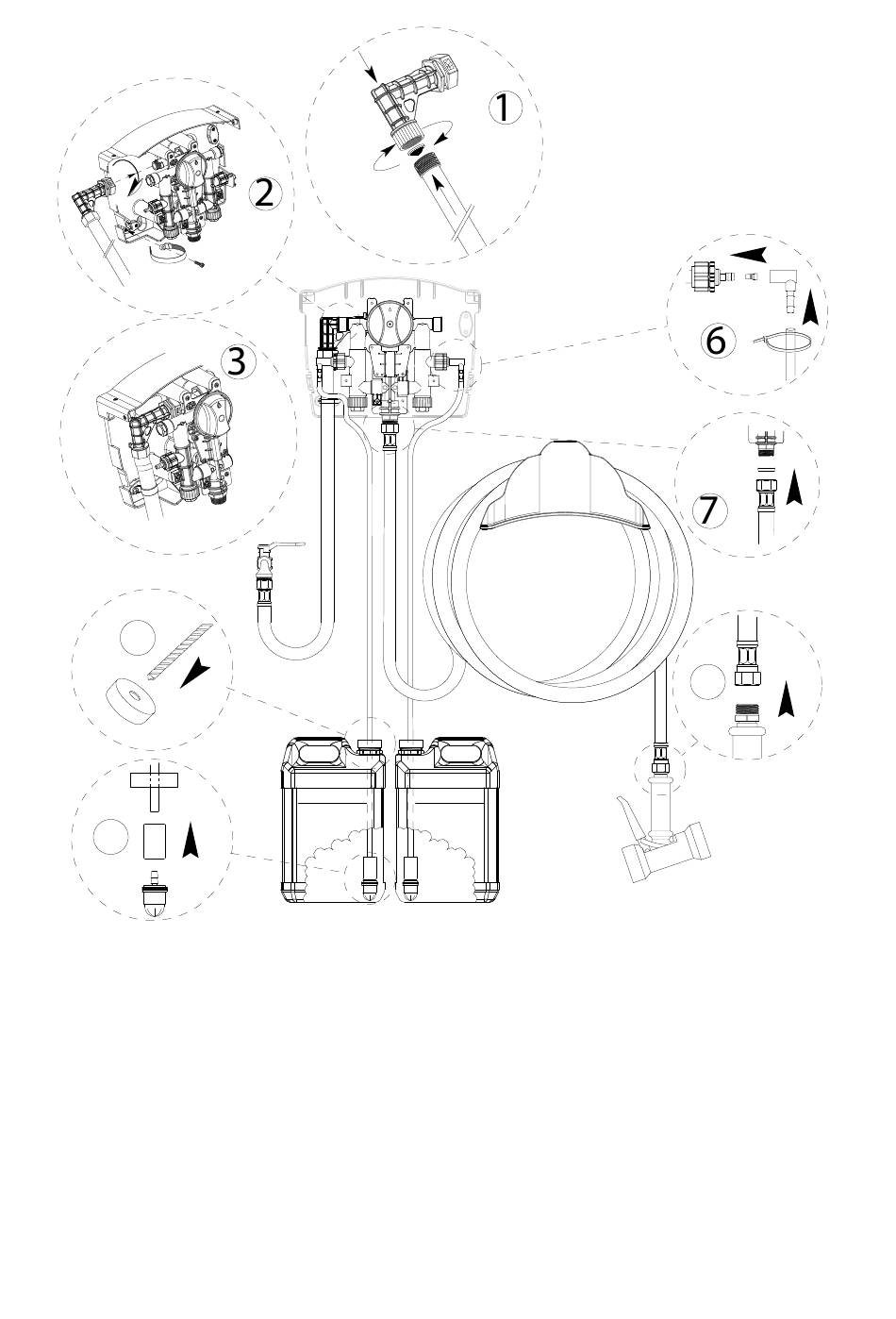

Figure 3 – Installation
1. Disconnect the 90° water inlet from the station by rotating it 45° anticlokwise to unlock it, connect then to
the water inlet hose;
2. Reconnect the 90° inlet fitting back into the Protwin, tilted counterclockwise by 45° to its side, consecutively
rotate 45° clockwise to lock the connection;
3. Secure the hose to Protwin through the clamp and the screw supplied as shown;
4. Drill the top of the product container using a 3/8 drill bit;
5. Slide the cap, ceramic weight onto the bootom of the supplied product pick up tube. Connect to the foot
valve as in figure above.
6. Connect the pick up tube to the ProTwin as follows:
a. Select the ' nozzle calibration produced according to the table to be inserted into the aspiration valve as
shown in the figure;
b. Insert the link at 90°;
c. For each product, place the aspiration tube into the fitting 90° and then fix it with plastic cable tie.
7. Attach the discharge hose to ¾ Male GHT fitting at the bottom of the Protwin;
8. Attach the dosing gun.
0000137791
PRODUCT 1 PRODUCT 2
Rev. 4.0 EN
