INSTALLATION
The ProTwin should be installed where it is easily connected to the water supply.
Before mounting, check that all valves can be easily operated and exposed surfaces are accessible for cleaning
and routine maintenance.
Positioning and drilling plans:
Remove the ProTwin from the box and remove the cover by removing
the screws at the top and pressing the release tabs. You can now access
to the mounting holes (located on the rear panel). Mount the ProTwin on
the wall using the supplied anchors, screws and washers.
The versatility of the ProTwin allows the hose bracket to be installed as
an integrated part of the unit or mounted independently as pictured
below.

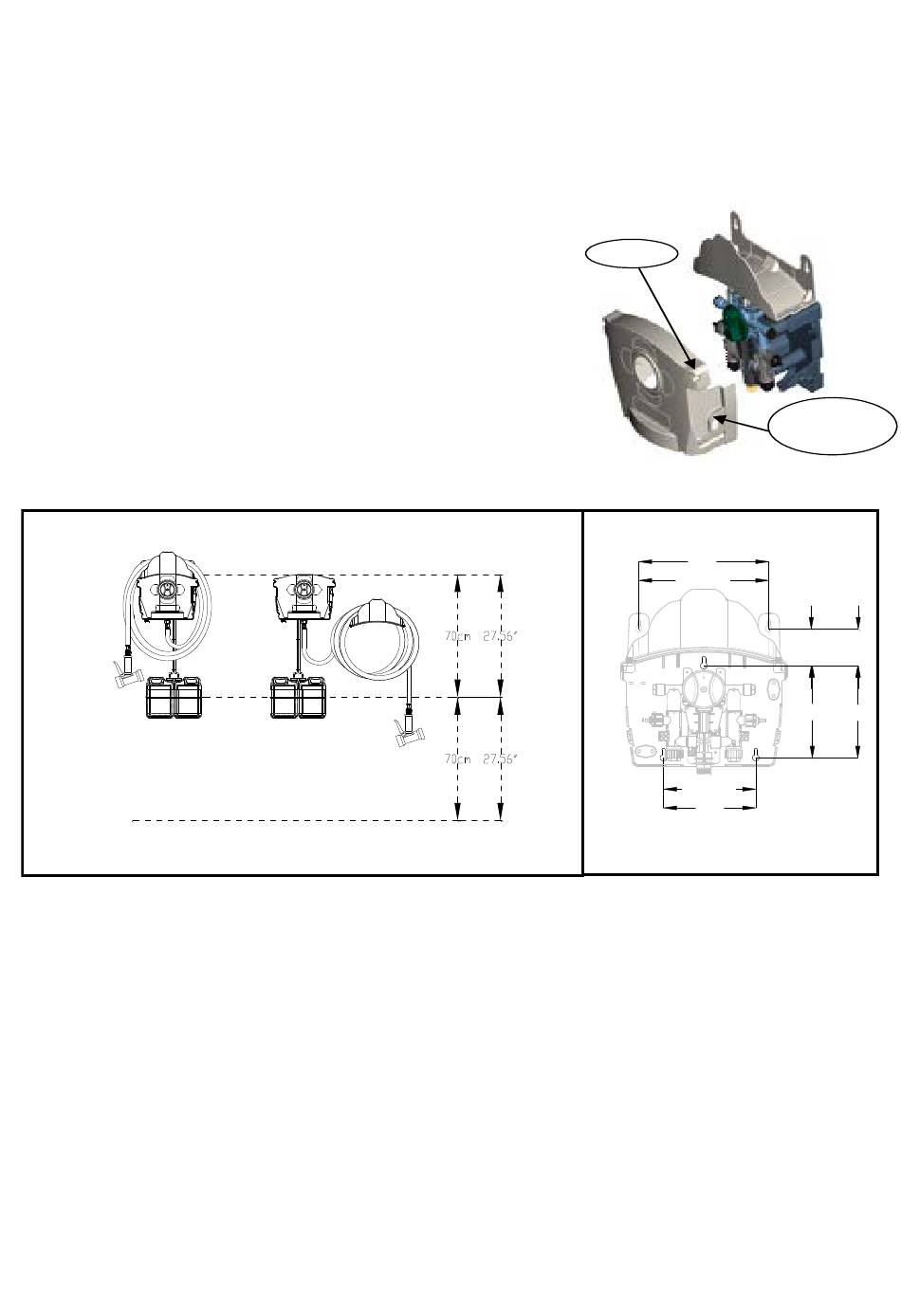

Figure 2 – Drilling plans and positioning
0000137791
PAVIMENTO
FLOOR
Rev. 4.0
Screws
EN
Release
tabs
