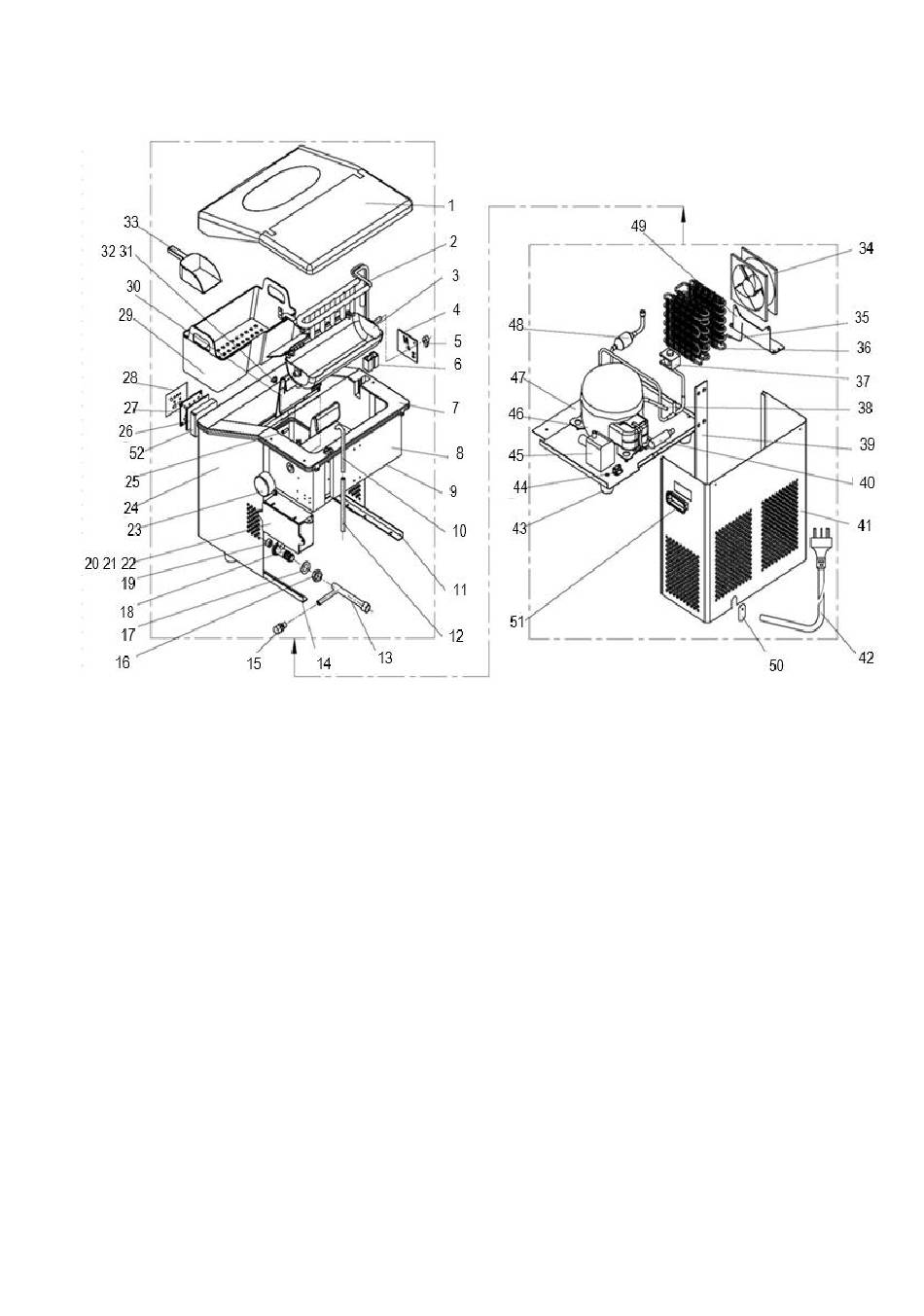

EXPLOSION DRAWING:
EXPLOSION MARK - Legend
1
Complete door
2
Evaporator
3
Water box
4
Micro switch
5
Blocking piece
6
Inner liner cover
7
Inner liner
8
Inner liner insulation
9
Sheet
10
Water line inlet pipe
11
Left corner support
12
Silicone tube
13
T pipe for water drainage
14
Right corner support
15
Water outlet srewing
16
Nut for water outlet
17
Seal washer for water outlet pipe
18
Drainage
19F
ilter
screen
20
Box for main control board
Stand 05/23 SvN
27
Fixing for operation board
28
Operation board sticker
29
Ice storage basket
30
Panel
31
Fixing of ice level sensor
32
Ice level sensor
33
Ice scoop
34
Condenser fan
35
Condensing Sensor
36
Condenser
37
Heatgasvalve
38
Process tube
39
Back reinforce panel
40
Filter
41
Back panel
42
Power cord
43
Feet
44
Power cord clip
45
Water pump
46
Compressor
