Hz RECEIVER
EN
SIMU S.A.S. au capital de 5 000 000 € - Zone Industrielle Les Giranaux - 70100 ARC-LÈS-GRAY - FRANCE - RCS VESOUL B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR87 425 650 090
Simu hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of Radio Directive 2014/53/EU and the other essential
requirements of the applicable European Directives. The full text of the EU declaration of conformity is available at www.simu.com.
Somfy limited, Yeadon LS19 7ZA UK, hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of UK legislation: the
Radio Equipment Regulations S.I. 2017 N°1206. The full text of the UKCA declaration of conformity is available at www.somfy.co.uk.

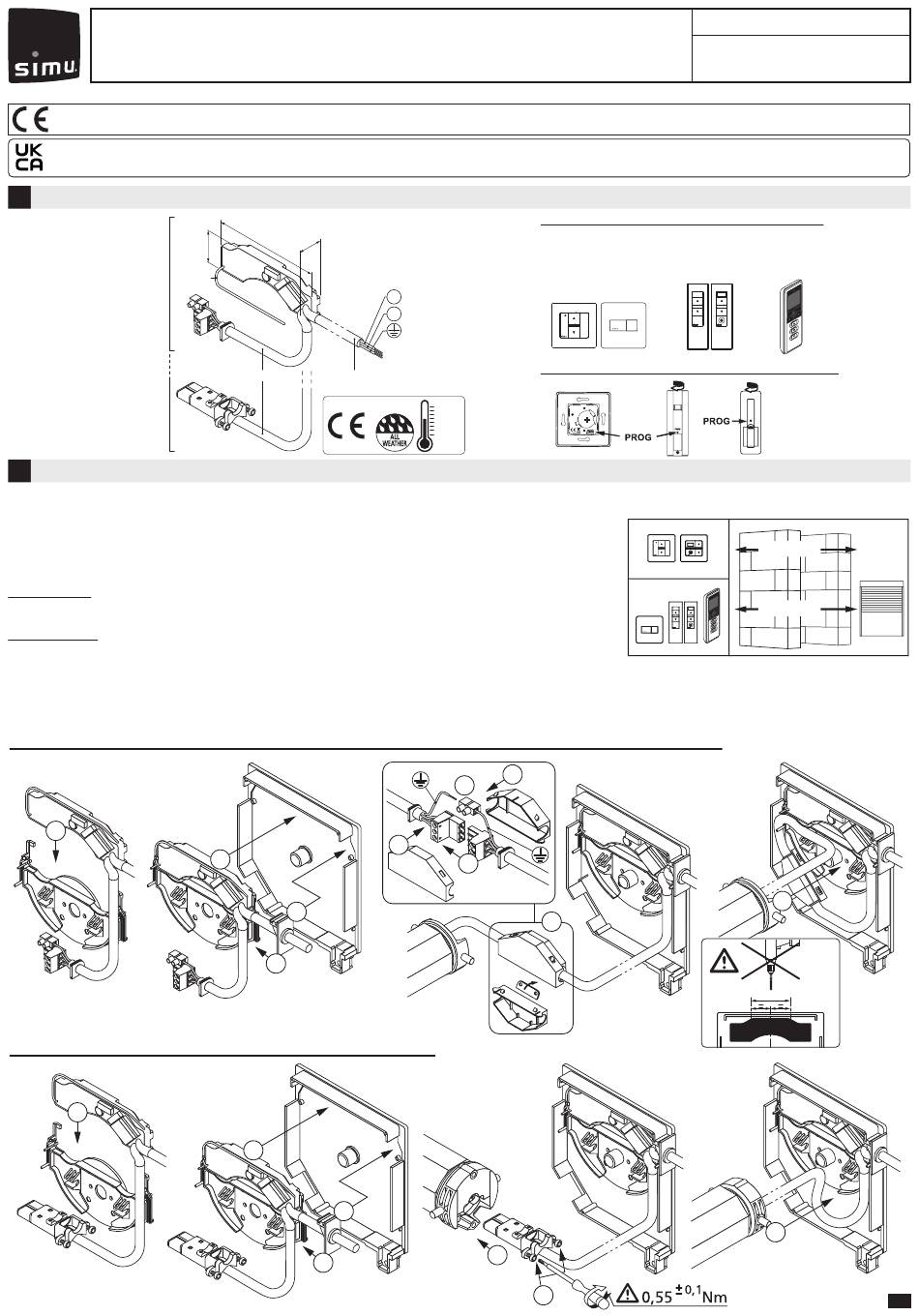

i DESCRIPTION OF HZ RECEIVERS
Hz receiver for
T3.5/T5/T6 wired Motor
antenna
(equipped with connexion
kit (9011670))
Hz receiver for
T5 AUTO/T5 E
Motor.
1 INSTALLATION
Instructions which must be followed by the drive and home automation professional installing the drive:
- Methods of wiring are given by national standards or IEC60364 standard.
- Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve. The cable may only be connected
to the motor by qualified personnel. The connector is to be assembled without damaging the contacts. The continuity of the earth
connection must be ensured.
- The "RECEPTEUR HZ", designed exclusively for roller shutters, must be installed in the roller shutter box, which must be com-
pletely closed before power is switched on.
Protection device: No integrated protection device. A suitable 16A all-pole cut-off device must be installed upstream in the electrical
installation in accordance with the wiring rules (minimum contact opening distance of 3.5 mm).- Glow wire temperature: 750 °C -
Proof tracking index: ≥100 V.
Recommendations:
- Hz receivers are designed for use in 150 to 205-mm Mini 45° SIMBAC® consoles.
- Keep a minimum distance of 20 cm between two Hz receivers. Keep a minimum distance of 30 cm between Hz receivers and Hz
transmitters. Hz receivers should preferably be placed at a minimum height of 1.5 m from the floor.
- Do not roll up or cut the antenna of an Hz receiver. Do not immerse Hz receivers in water.
- While assembling the casing, take care not to drill through the Hz receiver.
- A radio appliance using the same frequency (433,42MHz) may deteriorate our product's performance (ex.: hi-fi radio headphones).
Installing an Hz receiver with an T3.5/T5 or T6 motor (equipped with connexion kit 9011670):
1
Installing an Hz receiver for an T5 AUTO or T5 E motor:
1
120
24
45
0,20m 3,00m
3
4
2
3
4
2
Compatible transmitter (max. 12 per receiver):
1 : Wall Hz transmitter 1C (1 channel) / Hz Sequential transmitter
2 : Hz mobil 1/5 channels transmitter
3 : Hz transmitters: Color Multi / Timer-Easy / Timer-Multi
230V~50Hz
brown
L
N blue
yellow / green
Location of the PROG button on Hz transmitters:
IP44
+80C
-30C
5c
5a
5c
5b
5a
5b
Read carefully these instructions
1 2
Transmitters range :
5
5008029H
before any use.
3
15m max.
20m max.
6
90
6
