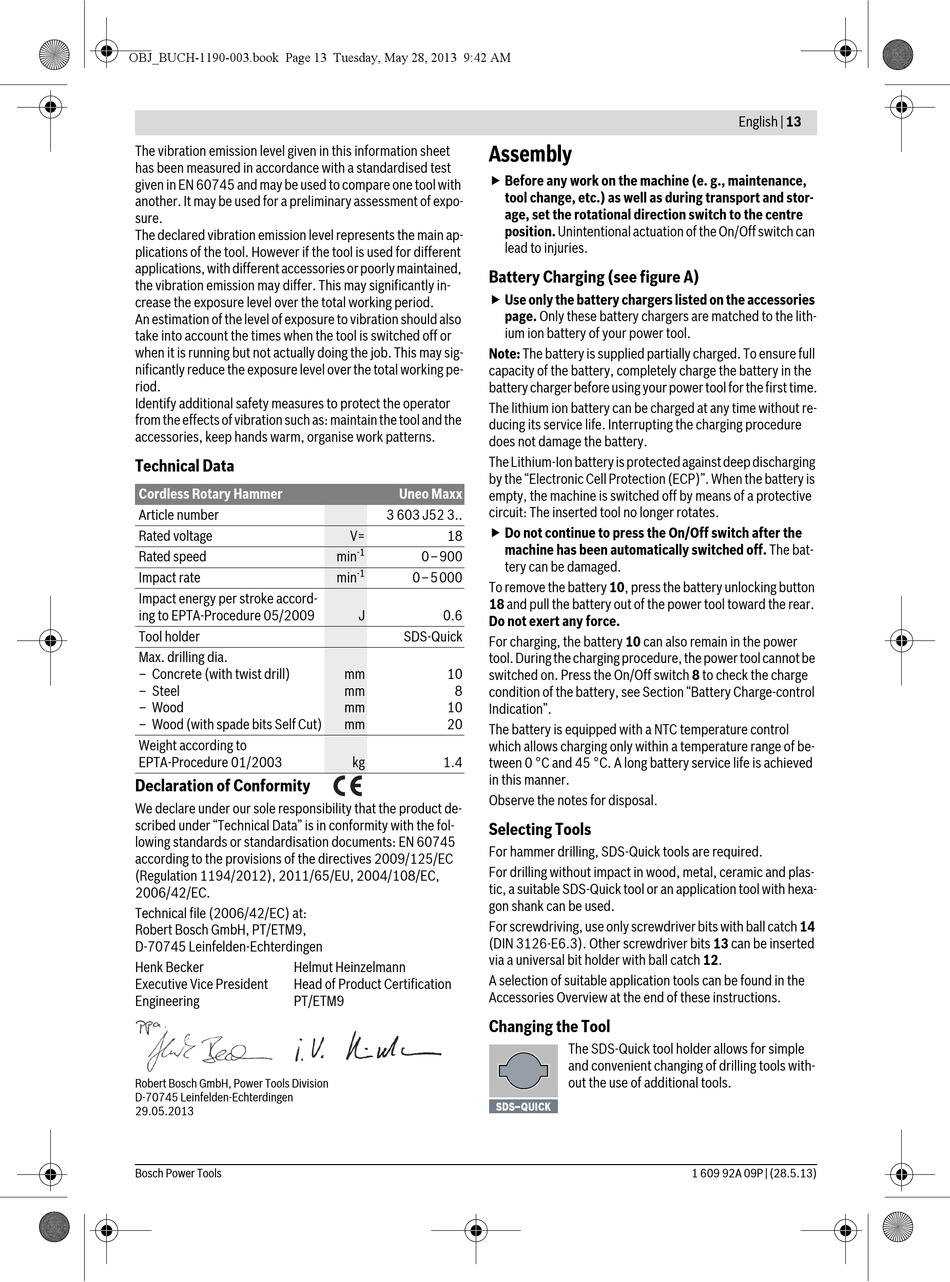

The vibration emission level given in this information sheet
has been measured in accordance with a standardised test
given in EN 60745 and may be used to compare one tool with
another. It may be used for a preliminary assessment of expo-
sure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained,
the vibration emission may differ. This may significantly in-
crease the exposure level over the total working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working pe-
riod.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep hands warm, organise work patterns.
Technical Data
Cordless Rotary Hammer
Article number
Rated voltage
Rated speed
Impact rate
Impact energy per stroke accord-
ing to EPTA-Procedure 05/2009
Tool holder
Max. drilling dia.
– Concrete (with twist drill)
– Steel
– Wood
– Wood (with spade bits Self Cut)
Weight according to
EPTA-Procedure 01/2003
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with the fol-
lowing standards or standardisation documents: EN 60745
according to the provisions of the directives 2009/125/EC
(Regulation 1194/2012), 2011/65/EU, 2004/108/EC,
2006/42/EC.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
D-70745 Leinfelden-Echterdingen
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
29.05.2013
Bosch Power Tools
Assembly
 Before any work on the machine (e. g., maintenance,
tool change, etc.) as well as during transport and stor-
age, set the rotational direction switch to the centre
position. Unintentional actuation of the On/Off switch can
lead to injuries.
Battery Charging (see figure A)
 Use only the battery chargers listed on the accessories
page. Only these battery chargers are matched to the lith-
ium ion battery of your power tool.
Note: The battery is supplied partially charged. To ensure full
capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.
The lithium ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.
The Lithium-Ion battery is protected against deep discharging
by the "Electronic Cell Protection (ECP)". When the battery is
Uneo Maxx
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.
3 603 J52 3..
 Do not continue to press the On/Off switch after the
V= 18
machine has been automatically switched off. The bat-
-1
min 0–900
tery can be damaged.
-1
min 0–5000
To remove the battery 10, press the battery unlocking button
18 and pull the battery out of the power tool toward the rear.
J 0.6
Do not exert any force.
SDS-Quick
For charging, the battery 10 can also remain in the power
tool. During the charging procedure, the power tool cannot be
mm 10
switched on. Press the On/Off switch 8 to check the charge
mm 8
condition of the battery, see Section "Battery Charge-control
mm 10
Indication".
mm 20
The battery is equipped with a NTC temperature control
which allows charging only within a temperature range of be-
kg 1.4
tween 0 °C and 45 °C. A long battery service life is achieved
in this manner.
Observe the notes for disposal.
Selecting Tools
For hammer drilling, SDS-Quick tools are required.
For drilling without impact in wood, metal, ceramic and plas-
tic, a suitable SDS-Quick tool or an application tool with hexa-
gon shank can be used.
For screwdriving, use only screwdriver bits with ball catch 14
(DIN 3126-E6.3). Other screwdriver bits 13 can be inserted
via a universal bit holder with ball catch 12.
A selection of suitable application tools can be found in the
Accessories Overview at the end of these instructions.
Changing the Tool
English | 13
The SDS-Quick tool holder allows for simple
and convenient changing of drilling tools with-
out the use of additional tools.
