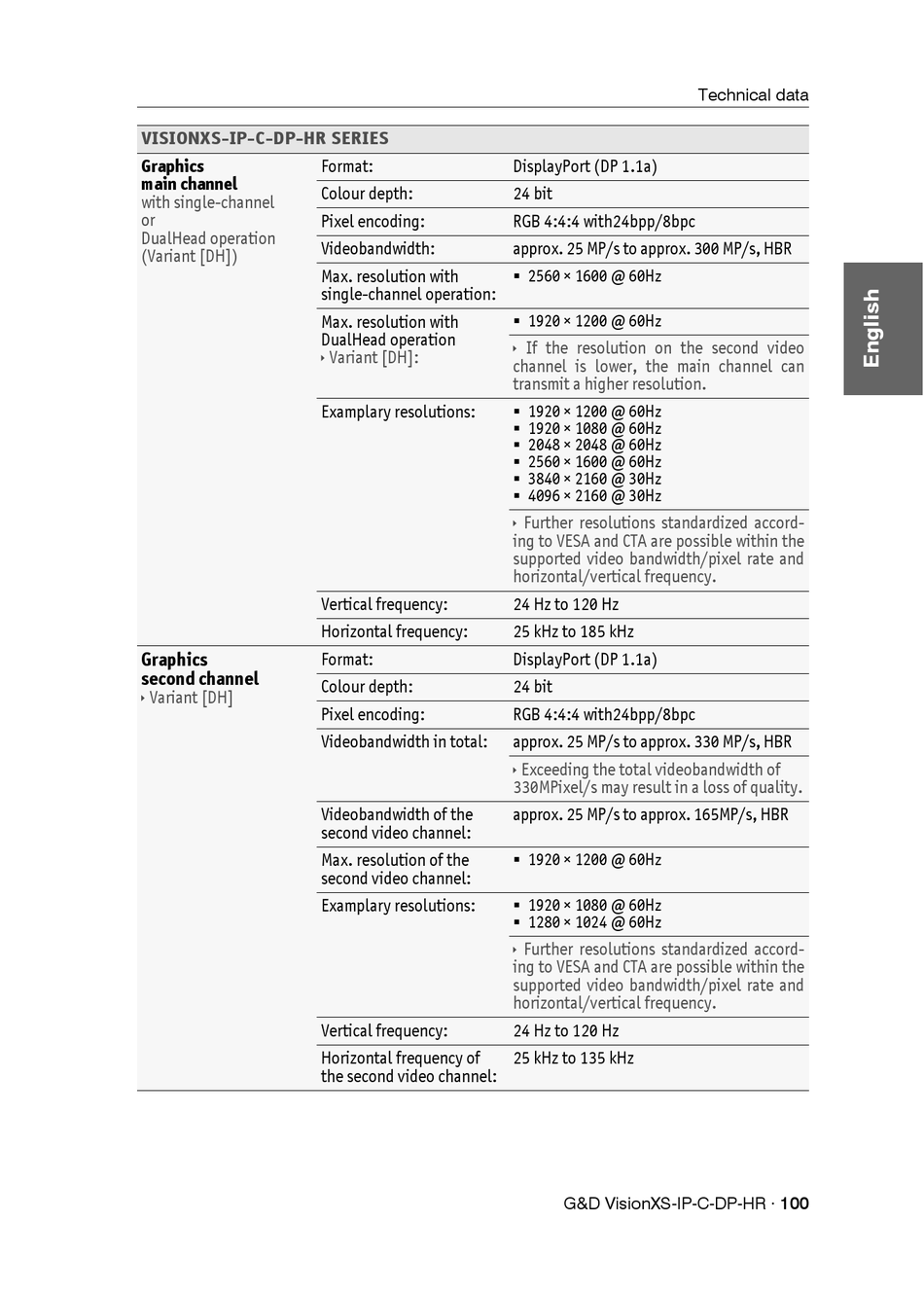

VISIONXS-IP-C-DP-HR SERIES
Graphics
main channel
with single-channel
or
DualHead operation
(Variant [DH])
Graphics
second channel
 Variant [DH]
Format:
Colour depth:
Pixel encoding:
Videobandwidth:
Max. resolution with
single-channel operation:
Max. resolution with
DualHead operation
 Variant [DH]:
Examplary resolutions:
Vertical frequency:
Horizontal frequency:
Format:
Colour depth:
Pixel encoding:
Videobandwidth in total:
Videobandwidth of the
second video channel:
Max. resolution of the
second video channel:
Examplary resolutions:
Vertical frequency:
Horizontal frequency of
the second video channel:
DisplayPort (DP 1.1a)
24 bit
RGB 4:4:4 with24bpp/8bpc
approx. 25 MP/s to approx. 300 MP/s, HBR
 2560 × 1600 @ 60Hz
 1920 × 1200 @ 60Hz
 If the resolution on the second video
channel is lower, the main channel can
transmit a higher resolution.
 1920 × 1200 @ 60Hz
 1920 × 1080 @ 60Hz
 2048 × 2048 @ 60Hz
 2560 × 1600 @ 60Hz
 3840 × 2160 @ 30Hz
 4096 × 2160 @ 30Hz
 Further resolutions standardized accord-
ing to VESA and CTA are possible within the
supported video bandwidth/pixel rate and
horizontal/vertical frequency.
24 Hz to 120 Hz
25 kHz to 185 kHz
DisplayPort (DP 1.1a)
24 bit
RGB 4:4:4 with24bpp/8bpc
approx. 25 MP/s to approx. 330 MP/s, HBR
 Exceeding the total videobandwidth of
330MPixel/s may result in a loss of quality.
approx. 25 MP/s to approx. 165MP/s, HBR
 1920 × 1200 @ 60Hz
 1920 × 1080 @ 60Hz
 1280 × 1024 @ 60Hz
 Further resolutions standardized accord-
ing to VESA and CTA are possible within the
supported video bandwidth/pixel rate and
horizontal/vertical frequency.
24 Hz to 120 Hz
25 kHz to 135 kHz
