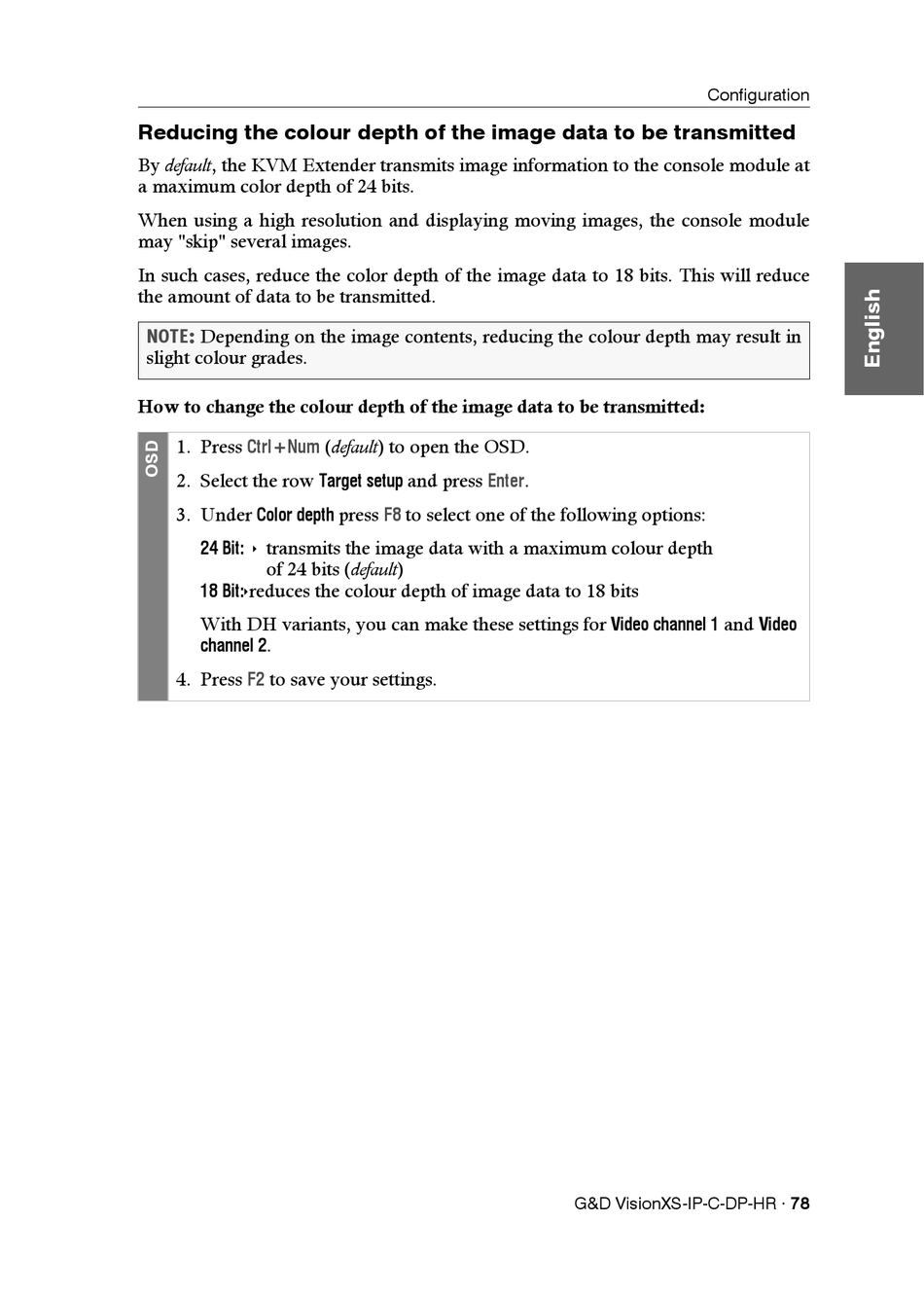

Reducing the colour depth of the image data to be transmitted

By default, the KVM Extender transmits image information to the console module at
a maximum color depth of 24 bits.
When using a high resolution and displaying moving images, the console module
may "skip" several images.
In such cases, reduce the color depth of the image data to 18 bits. This will reduce
the amount of data to be transmitted.
NOTE: Depending on the image contents, reducing the colour depth may result in
slight colour grades.
How to change the colour depth of the image data to be transmitted:
1. Press
Ctrl+Num
2. Select the row
3. Under Color depth
24 Bit:  transmits the image data with a maximum colour depth
of 24 bits (default)
18 Bit: reduces the colour depth of image data to 18 bits
With DH variants, you can make these settings for
channel 2 .
4. Press to save your settings.
F2
(default) to open the OSD.
Target setup and press Enter
press F8 to select one of the following options:
.
Video channel 1
G&D VisionXS-IP-C-DP-HR · 78
Configuration
and Video
