ENGLISH
4.2 Chimney and flue pipe
• The fireplace must only be connected to a chimney and
flue pipe approved for solid fuel fireplaces with flue gas
temperatures as specified in «2.0 Technical Data».
• The cross-section of the chimney must be designed to fit the
fireplace. Use «2.0 Technical Data» to calculate the correct
chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should be
test-mounted in order to correctly mark the position of the
fireplace and the hole in the chimney. See Fig. 1 for minimum
dimensions.
• Make sure that the flue pipe rises all the way up to the
chimney.
• With a rear outlet, use a flue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections to
have a degree of flexibility. This is to prevent any movement
in the installation leading to the formation of cracks.
• For recommended chimney draught, see «2.0 Technical Data».
For flue pipe dimensions with the relevant cross-section, see
«2.0 Technical Data».
NB! The minimum recommended chimney length is 3.5 m from
the flue pipe insert. If the draught is too strong, a flue pipe
damper can be installed and used to reduce the draught.
4.3 Installation

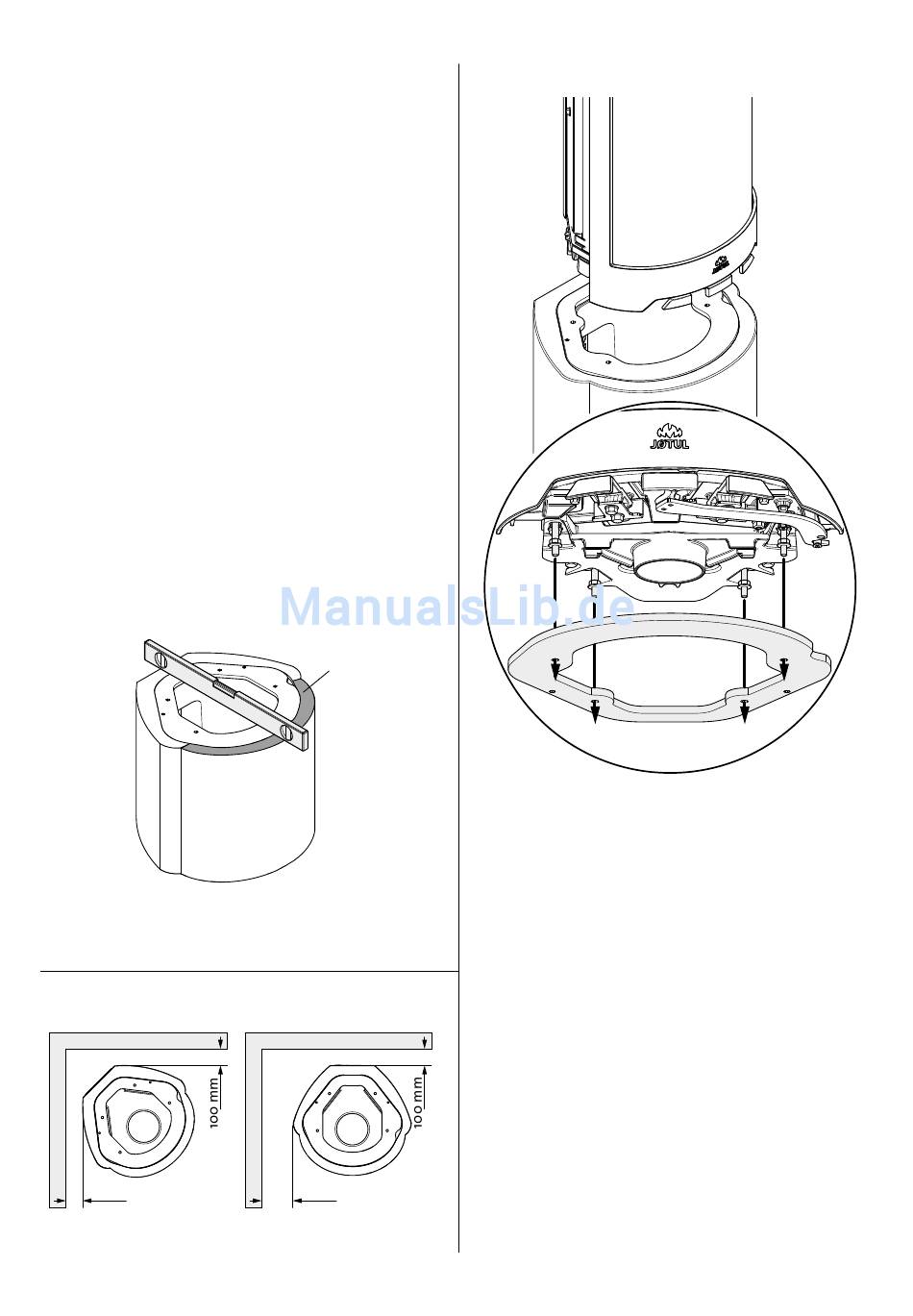

Fig. 8
1. The base should be put in place. Check it is level using a
spirit level and adjust as necessary using adhesive or mortar.
2. Mount the lip (A) with acrylic glue.
Fig. 9
100 mm
3. Placement of the fireplace. See Fig 1 for details.
46
Fig. 10
A
When using the outside air connection (optional extra, cat. no.
51012164), this must be fitted now.
4.
5.
6.
350 mm
Position the burn chamber in the four holes in the baseplate.
Make sure that the flexible hose for combustion air is not
trapped. Route the hose out through the hole in the rear
of the base.
The approval label, which is attached by a wire, is fed under
the burn chamber and down into the base.
