Fold the machine when it is not in use to avoid taking up space.
Attention!
Stay your head away from
machine when folding it to
avoid striking.
Pic C

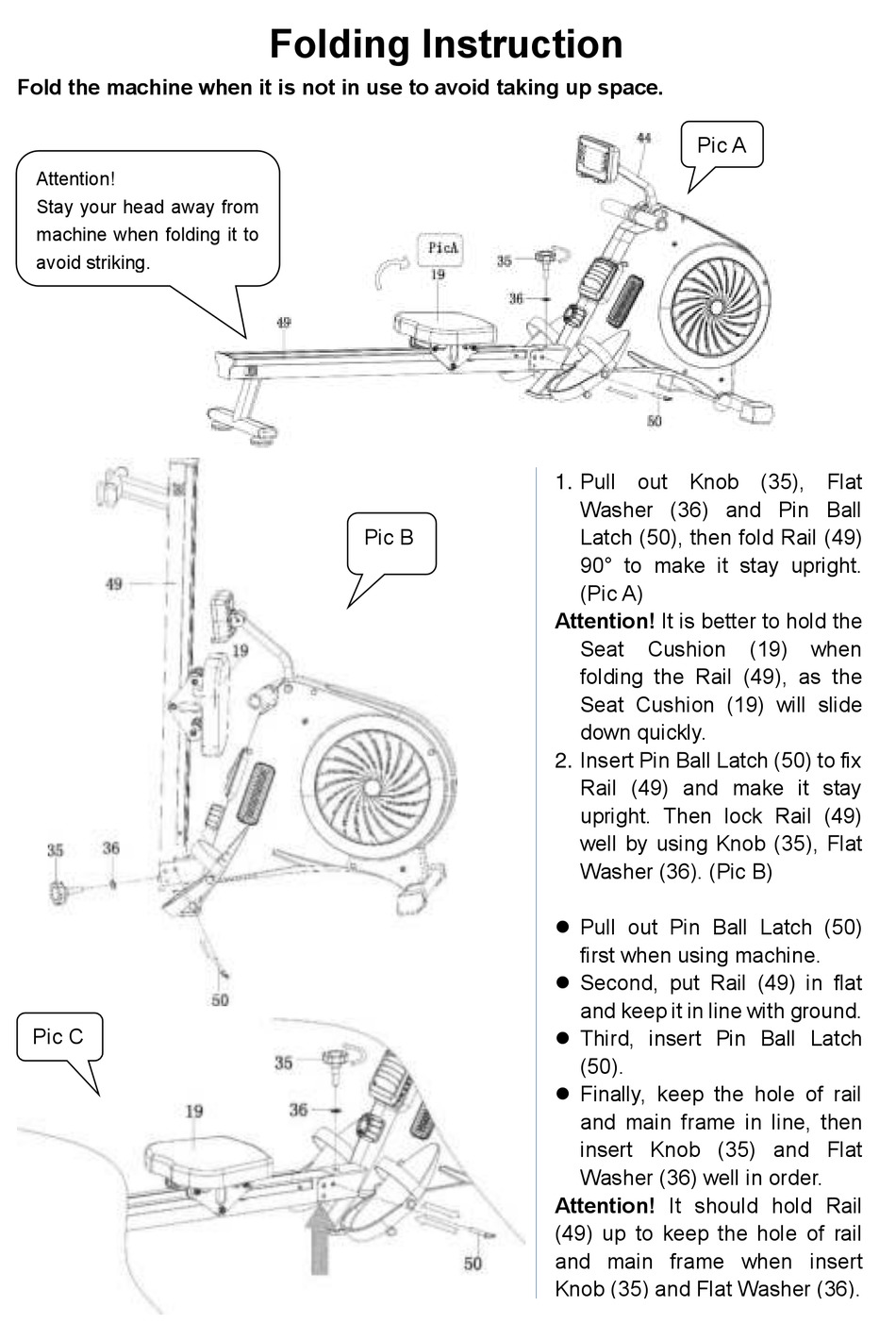

Folding Instruction
Pic B
Pic A
1. Pull out Knob (35), Flat
Washer (36) and Pin Ball
Latch (50), then fold Rail (49)
90° to make it stay upright.
(Pic A)
Attention! It is better to hold the
Seat Cushion
folding the Rail (49), as the
Seat Cushion (19) will slide
down quickly.
2. Insert Pin Ball Latch (50) to fix
Rail (49) and make it stay
upright. Then lock Rail (49)
well by using Knob (35), Flat
Washer (36). (Pic B)
 Pull out Pin Ball Latch (50)
first when using machine.
 Second, put Rail (49) in flat
and keep it in line with ground.
 Third, insert Pin Ball Latch
(50).
 Finally, keep the hole of rail
and main frame in line, then
insert Knob (35) and Flat
Washer (36) well in order.
Attention! It should hold Rail
(49) up to keep the hole of rail
and main frame when insert
Knob (35) and Flat Washer (36).
(19) when
