4.6 SYSTEM-SETTINGS
CALL OK: Deactivation of the data group quick access. When activated, the selection of a data group must be additionally confirmed via a
confirmation window.
CALL OUT: Automatic output switch-on. When activated, the output is switched on automatically as soon as a data group is selected.
POWER ON: Output switch-on at startup. When activated, the output is automatically switched on as soon as the device is switched on.
BEEPER: Activation/deactivation of the key tones.
LOGO: Activation/deactivation of the boot logo during the startup process of the device.
LANGUAGE: Setting the system language. German, English, French and Simplified Chinese languages are supported.
BACKLIGHT: Adjustment of the screen brightness in 6 levels (0 - 5).
INTERFACE: Setting the communication interface. The USB and WiFi options are available. An active communication is indicated with a
corresponding symbol in the status bar. When changing the communication interface, it is necessary to restart the device.
BAUDRATE: If the device is operated via the USB communication interface, the following baud rates can be selected: 9600, 19200, 38400,
57600, 115200. In WiFi mode, the baud rate is fixed at 115200.
ADDRESS: The device address can be freely selected between 001 and 255.
TIME: Set the current system time here.
MEASURE: Update rate of the measured voltage. You can choose between low, medium and high.
28

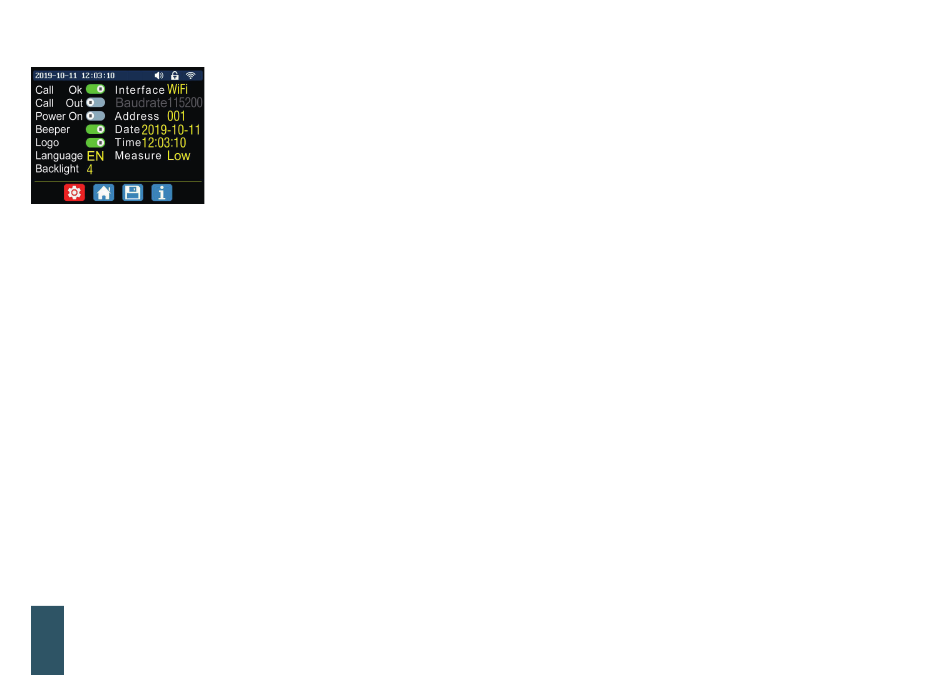

Press SHIFT + 0 to enter the system settings menu. The desired setting can be selected using the direction
keys. The current selection is highlighted in red. The setting can be changed by pressing the encoder.
