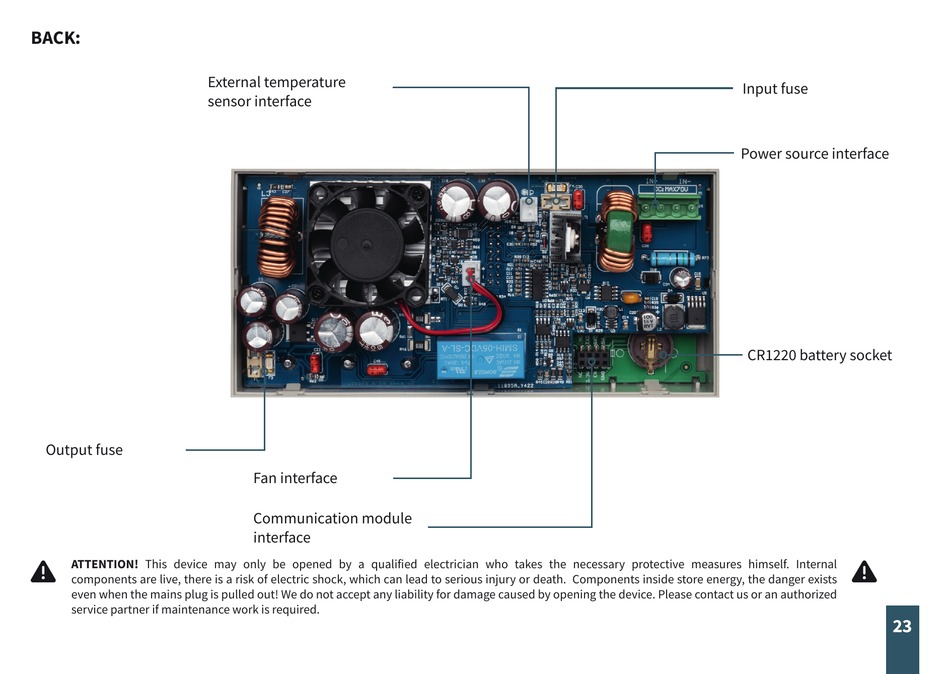

BACK:
External temperature
sensor interface
Output fuse
ATTENTION! This device may only be opened by a qualified electrician who takes the necessary protective measures himself. Internal

components are live, there is a risk of electric shock, which can lead to serious injury or death. Components inside store energy, the danger exists
even when the mains plug is pulled out! We do not accept any liability for damage caused by opening the device. Please contact us or an authorized
service partner if maintenance work is required.
Fan interface
Communication module
interface
Input fuse
Power source interface
CR1220 battery socket

