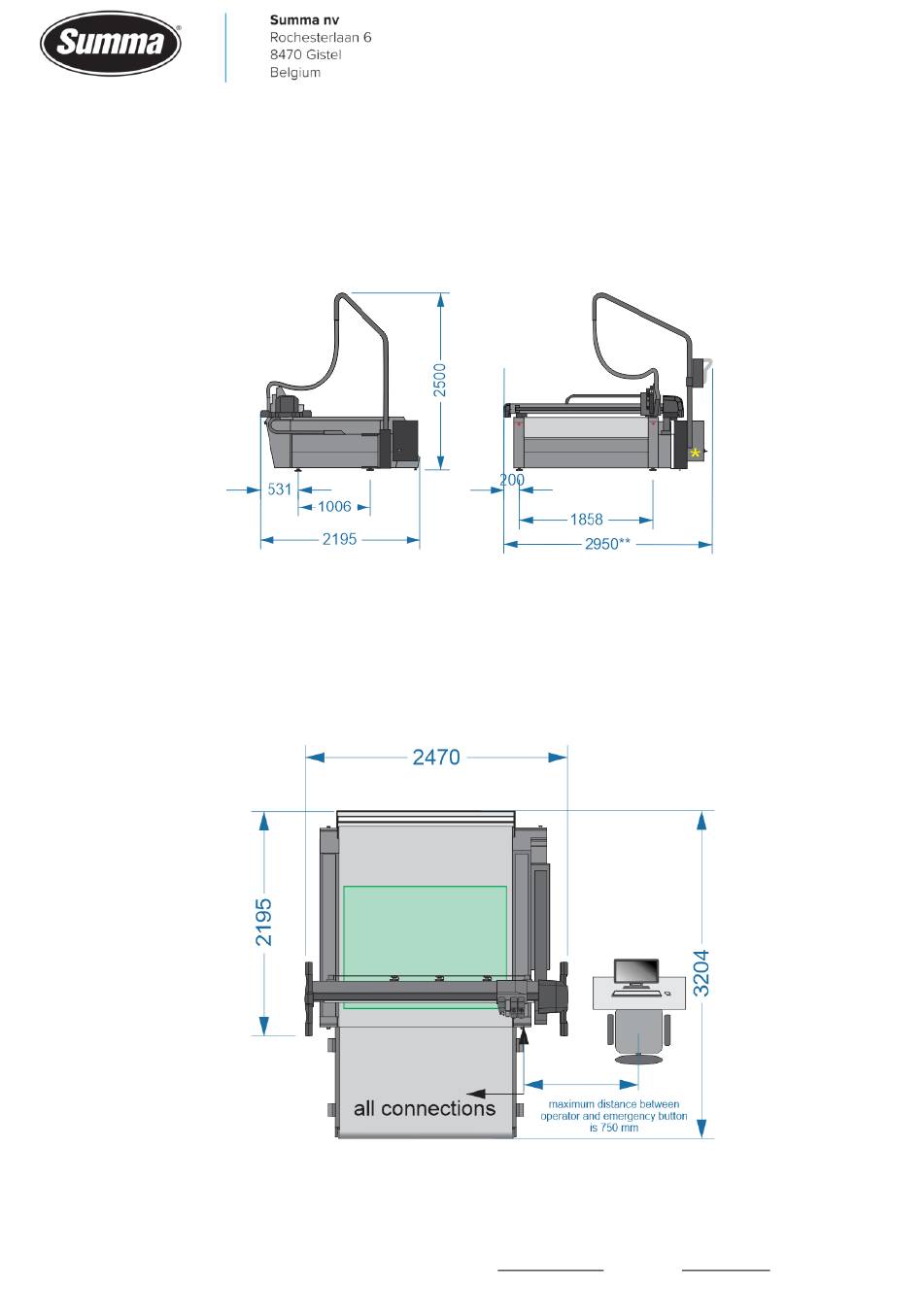

Abbildung 4 Grundriss rechte Seitenansicht und Vorderansicht
* Die Brandschutzbox gilt nicht für das Standard-Frässystem. Dies hat keinen Einfluss auf die
Breitenabmessungen, da die Modulstation die Breite auf der rechten Seite definiert.
** Zusätzlicher Platz auf der rechten Seite wird empfohlen, um das Fräsmodul sicher an der
Modulstation anzubringen und zu entfernen.
F1612 mit optionaler Förderbandverlängerung:
Abbildung 5 Grundriss Draufsicht mit optionaler Förderbandverlängerung
