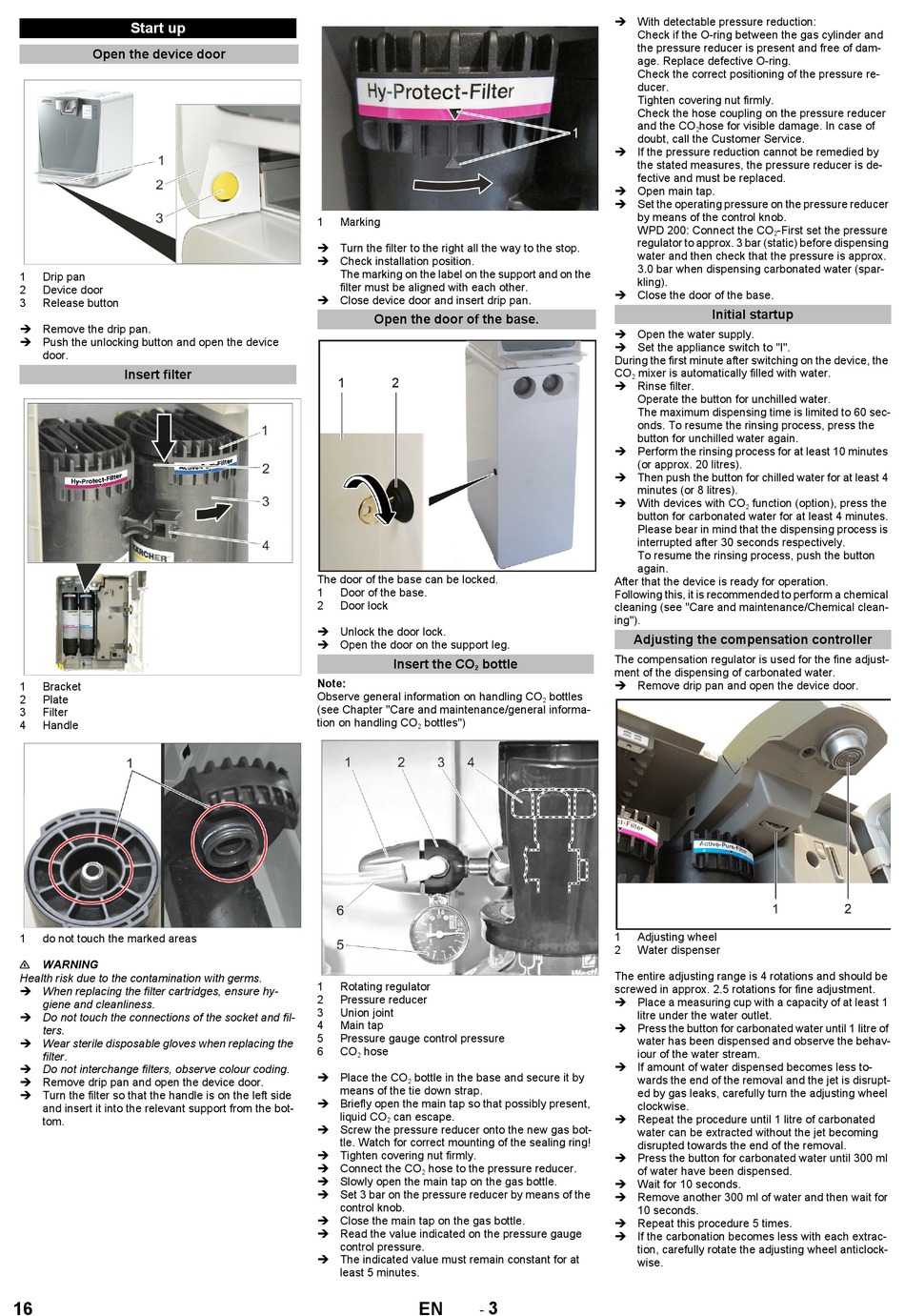

Initial Start-Up - Kärcher WPD 200 Basic Originalbetriebsanleitung

Start up
Open the device door
1 Drip pan
2 Device door
3 Release button
 Remove the drip pan.
 Push the unlocking button and open the device
door.
Insert filter
1 Bracket
2 Plate
3 Filter
4 Handle
1 do not touch the marked areas
WARNING
Health risk due to the contamination with germs.
 When replacing the filter cartridges, ensure hy-
giene and cleanliness.
 Do not touch the connections of the socket and fil-
ters.
 Wear sterile disposable gloves when replacing the
filter.
 Do not interchange filters, observe colour coding.
 Remove drip pan and open the device door.
 Turn the filter so that the handle is on the left side
and insert it into the relevant support from the bot-
tom.
16
1 Marking
 Turn the filter to the right all the way to the stop.
 Check installation position.
The marking on the label on the support and on the
filter must be aligned with each other.
 Close device door and insert drip pan.
Open the door of the base.
The door of the base can be locked.
1 Door of the base.
2 Door lock
 Unlock the door lock.
 Open the door on the support leg.
Insert the CO bottle
2
Note:
Observe general information on handling CO
(see Chapter "Care and maintenance/general informa-
tion on handling CO bottles")
2
1 Rotating regulator
2 Pressure reducer
3 Union joint
4 Main tap
5 Pressure gauge control pressure
6 CO hose
2
 Place the CO bottle in the base and secure it by
2
means of the tie down strap.
 Briefly open the main tap so that possibly present,
liquid CO can escape.
2
 Screw the pressure reducer onto the new gas bot-
tle. Watch for correct mounting of the sealing ring!
 Tighten covering nut firmly.
 Connect the CO hose to the pressure reducer.
2
 Slowly open the main tap on the gas bottle.
 Set 3 bar on the pressure reducer by means of the
control knob.
 Close the main tap on the gas bottle.
 Read the value indicated on the pressure gauge
control pressure.
 The indicated value must remain constant for at
least 5 minutes.
3
-
EN
 With detectable pressure reduction:
Check if the O-ring between the gas cylinder and
the pressure reducer is present and free of dam-
age. Replace defective O-ring.
Check the correct positioning of the pressure re-
ducer.
Tighten covering nut firmly.
Check the hose coupling on the pressure reducer
and the CO hose for visible damage. In case of
2
doubt, call the Customer Service.
 If the pressure reduction cannot be remedied by
the stated measures, the pressure reducer is de-
fective and must be replaced.
 Open main tap.
 Set the operating pressure on the pressure reducer
by means of the control knob.
WPD 200: Connect the CO
regulator to approx. 3 bar (static) before dispensing
water and then check that the pressure is approx.
3.0 bar when dispensing carbonated water (spar-
kling).
 Close the door of the base.
Initial startup
 Open the water supply.
 Set the appliance switch to "I".
During the first minute after switching on the device, the
CO mixer is automatically filled with water.
2
 Rinse filter.
Operate the button for unchilled water.
The maximum dispensing time is limited to 60 sec-
onds. To resume the rinsing process, press the
button for unchilled water again.
 Perform the rinsing process for at least 10 minutes
(or approx. 20 litres).
 Then push the button for chilled water for at least 4
minutes (or 8 litres).
 With devices with CO
button for carbonated water for at least 4 minutes.
Please bear in mind that the dispensing process is
interrupted after 30 seconds respectively.
To resume the rinsing process, push the button
again.
After that the device is ready for operation.
Following this, it is recommended to perform a chemical
cleaning (see "Care and maintenance/Chemical clean-
ing").
Adjusting the compensation controller
The compensation regulator is used for the fine adjust-
ment of the dispensing of carbonated water.
 Remove drip pan and open the device door.
bottles
2
1 Adjusting wheel
2 Water dispenser
The entire adjusting range is 4 rotations and should be
screwed in approx. 2.5 rotations for fine adjustment.
 Place a measuring cup with a capacity of at least 1
litre under the water outlet.
 Press the button for carbonated water until 1 litre of
water has been dispensed and observe the behav-
iour of the water stream.
 If amount of water dispensed becomes less to-
wards the end of the removal and the jet is disrupt-
ed by gas leaks, carefully turn the adjusting wheel
clockwise.
 Repeat the procedure until 1 litre of carbonated
water can be extracted without the jet becoming
disrupted towards the end of the removal.
 Press the button for carbonated water until 300 ml
of water have been dispensed.
 Wait for 10 seconds.
 Remove another 300 ml of water and then wait for
10 seconds.
 Repeat this procedure 5 times.
 If the carbonation becomes less with each extrac-
tion, carefully rotate the adjusting wheel anticlock-
wise.
-First set the pressure
2
function (option), press the
