IO-Link Master mit EtherCAT-Schnittstelle

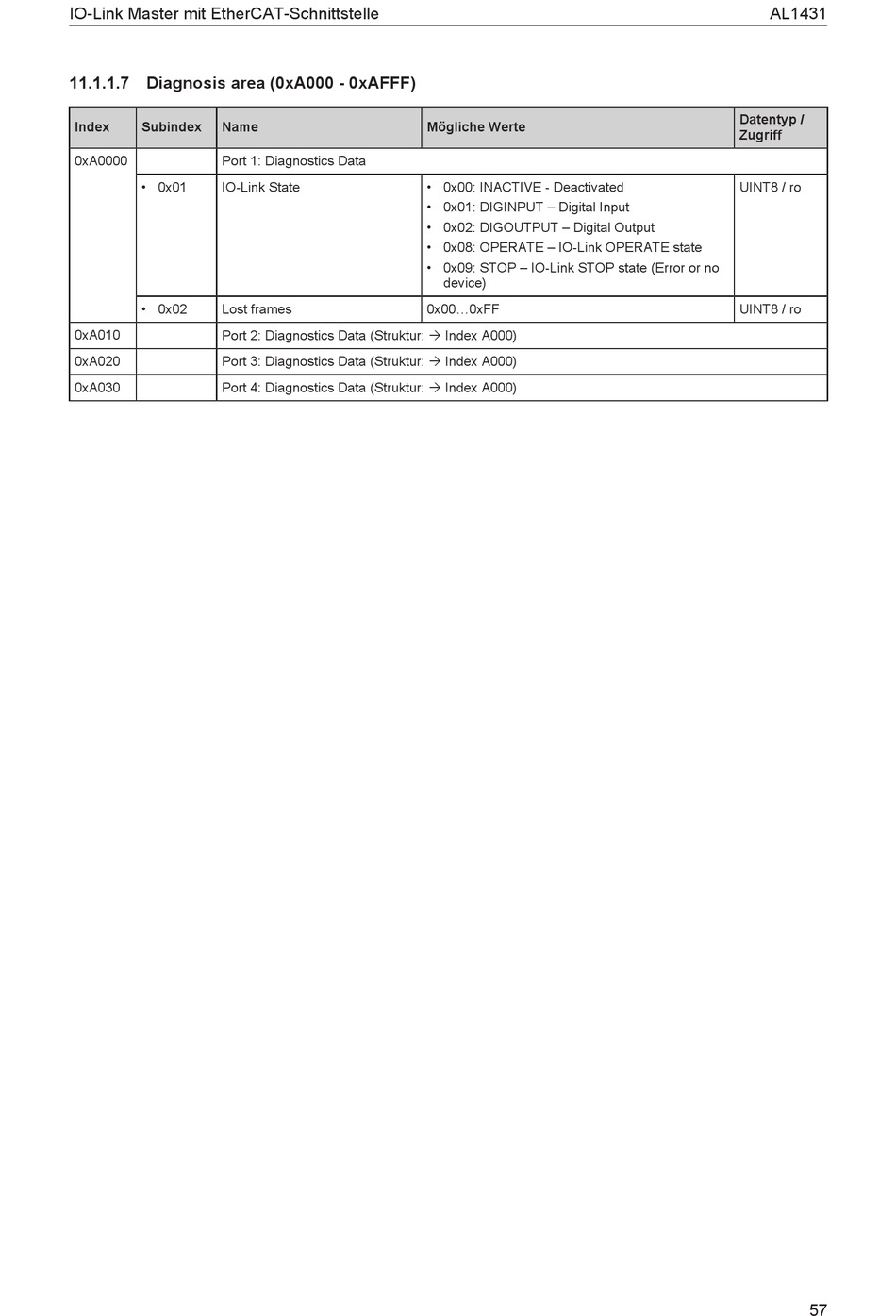

11.1.1.7 Diagnosis area (0xA000 - 0xAFFF)
Index Subindex Name
0xA0000 Port 1: Diagnostics Data
• 0x01 IO-Link State
• 0x02 Lost frames
Port 2: Diagnostics Data (Struktur: Ò Index A000)
0xA010
Port 3: Diagnostics Data (Struktur: Ò Index A000)
0xA020
0xA030 Port 4: Diagnostics Data (Struktur: Ò Index A000)
Mögliche Werte
• 0x00: INACTIVE - Deactivated
• 0x01: DIGINPUT – Digital Input
• 0x02: DIGOUTPUT – Digital Output
• 0x08: OPERATE – IO-Link OPERATE state
• 0x09: STOP – IO-Link STOP state (Error or no
device)
0x00...0xFF
AL1431
Datentyp /
Zugriff
UINT8 / ro
UINT8 / ro
57
