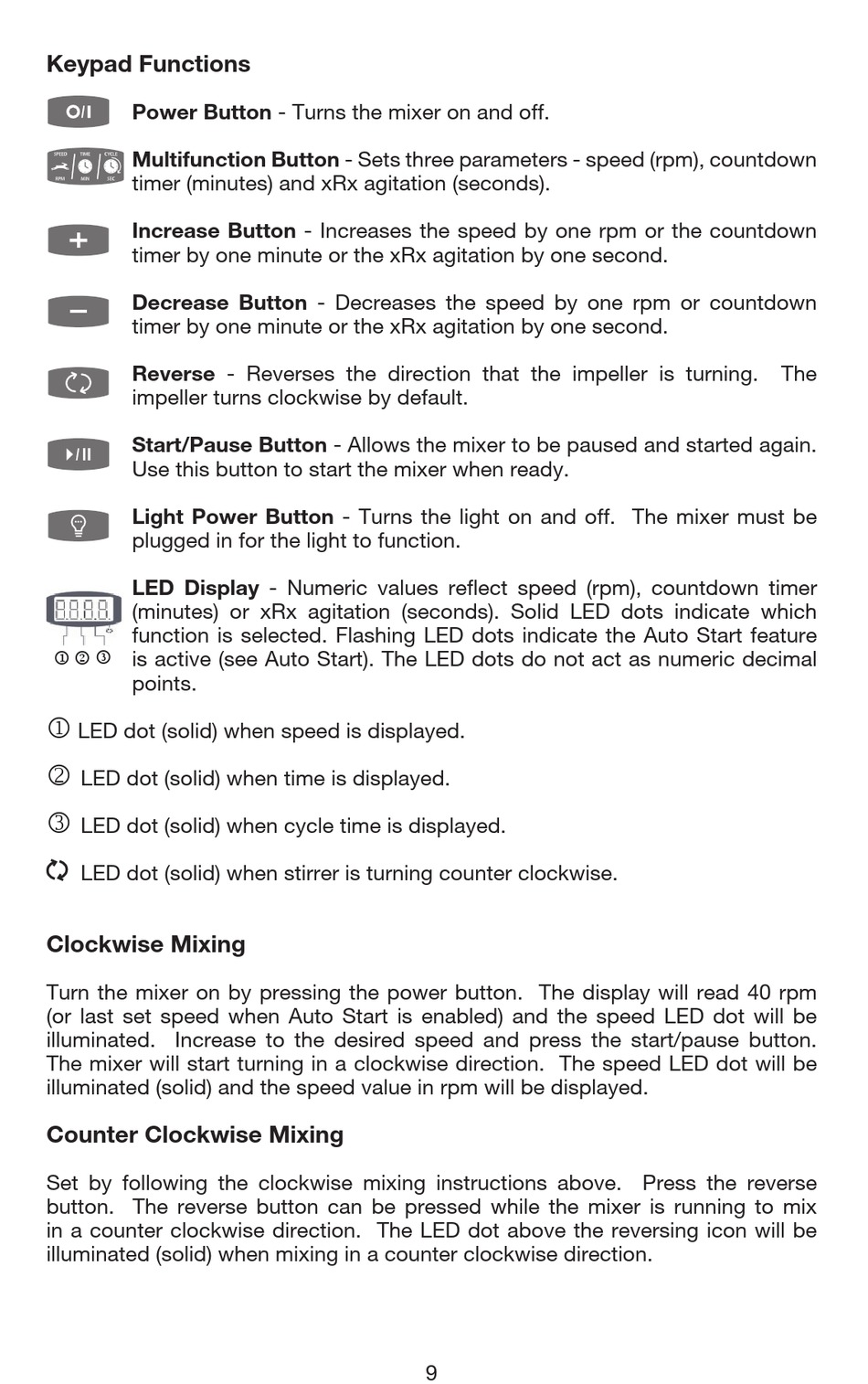

Keypad Functions

Power Button - Turns the mixer on and off.
Multifunction Button - Sets three parameters - speed (rpm), countdown
timer (minutes) and xRx agitation (seconds).
Increase Button - Increases the speed by one rpm or the countdown
timer by one minute or the xRx agitation by one second.
Decrease Button - Decreases the speed by one rpm or countdown
timer by one minute or the xRx agitation by one second.
Reverse - Reverses the direction that the impeller is turning.
impeller turns clockwise by default.
Start/Pause Button - Allows the mixer to be paused and started again.
Use this button to start the mixer when ready.
Light Power Button - Turns the light on and off. The mixer must be
plugged in for the light to function.
LED Display - Numeric values reflect speed (rpm), countdown timer
(minutes) or xRx agitation (seconds). Solid LED dots indicate which
function is selected. Flashing LED dots indicate the Auto Start feature
is active (see Auto Start). The LED dots do not act as numeric decimal
j  
points.
j
LED dot (solid) when speed is displayed.

LED dot (solid) when time is displayed.

LED dot (solid) when cycle time is displayed.
LED dot (solid) when stirrer is turning counter clockwise.
Clockwise Mixing
Turn the mixer on by pressing the power button. The display will read 40 rpm
(or last set speed when Auto Start is enabled) and the speed LED dot will be
illuminated. Increase to the desired speed and press the start/pause button.
The mixer will start turning in a clockwise direction. The speed LED dot will be
illuminated (solid) and the speed value in rpm will be displayed.
Counter Clockwise Mixing
Set by following the clockwise mixing instructions above. Press the reverse
button. The reverse button can be pressed while the mixer is running to mix
in a counter clockwise direction. The LED dot above the reversing icon will be
illuminated (solid) when mixing in a counter clockwise direction.
