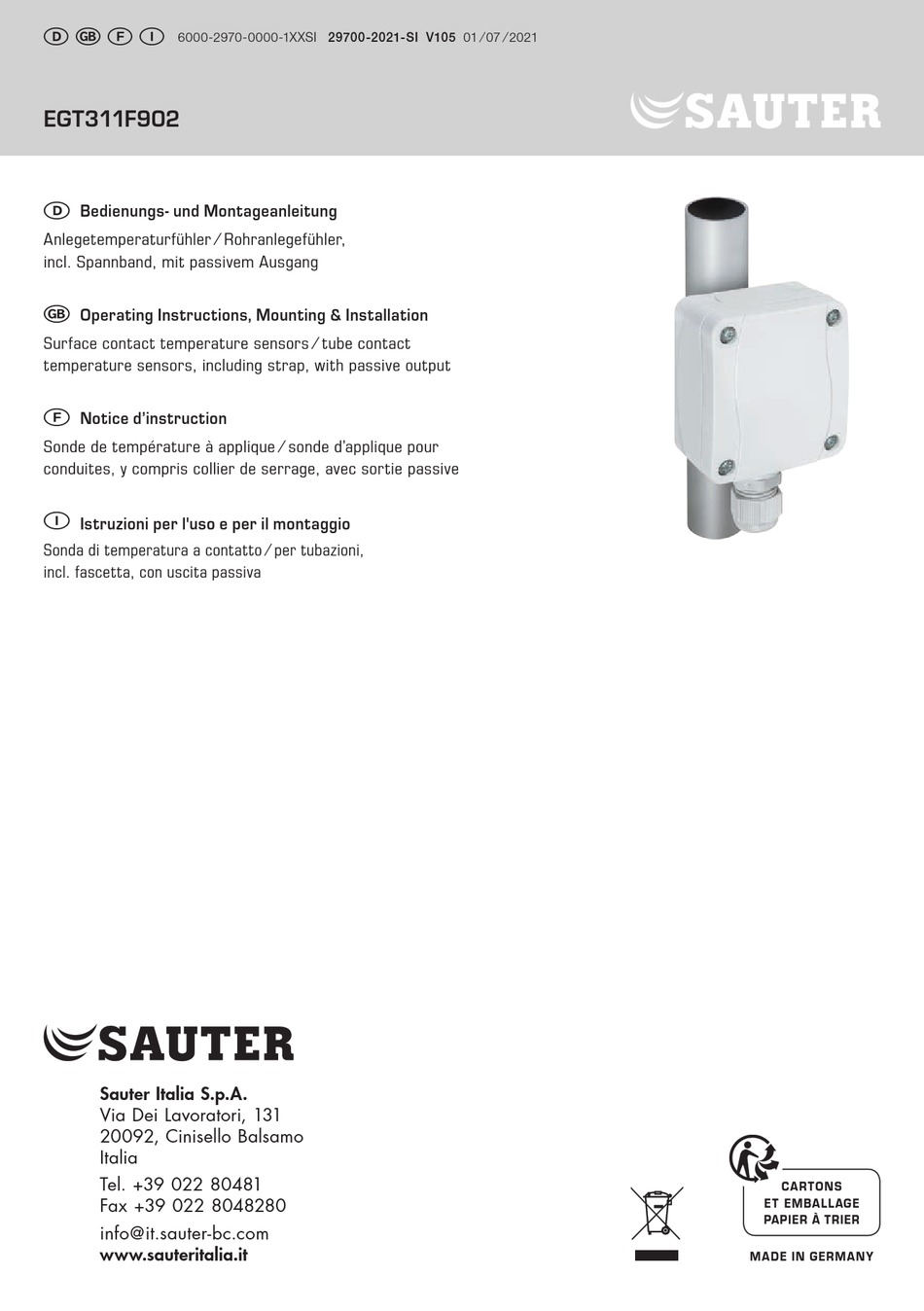

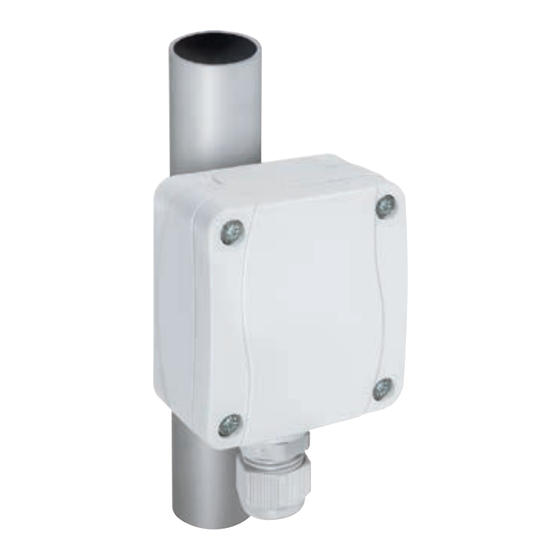

Istruzioni per l'uso e per il montaggio Sonda di temperatura a contatto ⁄ per tubazioni, incl. fascetta, con uscita passiva Sauter Italia S.p.A. Via Dei Lavoratori, 131 20092, Cinisello Balsamo Italia Tel.
Seite 2
D G F I EGT311F902 Maßzeichnung EGT311F902 Dimensional drawing Plan coté Disegno quotato M16x1.5...
EGT311F902 Rev. 2021 - V17 Rohranlegewiderstandsthermometer mit passivem Ausgang, im schlagfesten Kunststoffgehäuse mit 1x Zweileiterschaltung Schnell verschluss schrauben, incl. Spannband. Die Anlegefühler sind elektrische Berührungsthermometer, die der Messung von Oberflächen temperaturen fester Körper dienen und mindestens eine sogenannte Anlegefläche oder Kontaktfläche haben, die mit der zu messenden Oberfläche in Berührung gebracht wird.
Allgemeine Informationen Aufbau der Temperaturfühler allgemein: Die Fühler werden wie folgt nach Bauformen unterschieden: Anlegetemperaturfühler, Kabeltemperaturfühler, Gehäuse- und Einbautemperaturfühler. – Bei den Anlegetemperaturfühlern besitzt der Temperaturfühler mindestens eine Anlegefläche, die z.B. an Rohroberflächen oder Heizkörpern angelegt werden muss. Wird die Anlegefläche nicht richtig zur Messoberfläche positioniert, so können erhebliche Temperaturmessfehler entstehen. Es ist für eine gute Kontaktfläche und Temperaturleitung zu sorgen, Schmutz und Unebenheiten sind zu vermeiden, ggfl.
Seite 5
Abweichungen zur Katalog dar stellung sind nicht zusätzlich auf- thermischen Belastungsgrenzen der Schutzrohre nach DIN 43763 geführt und im Sinne des technischen Fortschritts und der stetigen Ver- bzw. nach speziellen Sauter-Standards! besserung unserer Produkte möglich. Bei Veränderungen der Geräte durch Hinweise zum Prozessanschluss von Einbaufühlern: den Anwender entfallen alle Gewährleistungs - an sprüche.
EGT311F902 Rev. 2021 - V17 Tube contact resistance thermometer with passive output, in an impact-resistant plastic housing with 1x two-wire connection quick-locking screws, incl.strap. Surface contact sensors are electric contact thermometers used for surface temperature measurement on solids, having at least one so-called contact area that is brought into contact with the surface to be measured.
Seite 7
General notes Design of temperature sensors in general: Sensors are distinguished by shape type as follows: surface-contacting sensors, cable temperature sensors, and housing-type and built-in temperature sensors. – On surface-contacting sensors, the temperature sensor has at least one contact area that must be brought in contact, e.g. with the surface of radiators or pipes.
Seite 8
DIN 43763 respectively according explicitly mentioned and are possible in terms of technical progress and to specific Sauter standards! continuous improvement of our pro ducts. In case of any modifications made Notes regarding process connection of built-in sensors: by the user, all warranty claims are forfeited.
EGT311F902 Rev. 2021 - V17 Thermomètre d’applique à résistance pour conduites avec sortie passive, dans un boîtier plastique 1 x 2 fils résistant aux chocs avec vis de fermeture rapide y compris collier de serrage. Les sondes d’applique sont des thermomètres électriques de contact qui servent à la mesure de températures sur les surfaces de corps solides et qui disposent d’au moins une surface d’applique ou...
Généralités Modes de réalisation des sondes de température pour applications en général: On distingue les sondes suivant leur forme de construction, à savoir: sondes de température à applique, sondes de température à câble, sondes de tempéra- ture sous forme de boîtier et sondes de température pour montage en gaine. –...
à la présentation dans le catalogue ne sont pas mentionnées DIN 43763 et ⁄ ou suivant les standards spécifiques de Sauter ! explicitement et sont possibles suite au progrès technique et à l’amélioration Consignes pour le raccordement au process des sondes à...
EGT311F902 Rev. 2021 - V17 Termometro a resistenza a contatto su tubazione con uscita passiva, in involucro di plastica antiurto 1x comando a due conduttori con viti a chiusura rapida, incl. fascetta. Le sonde a contatto sono termometri elettrici che servono per la misura della temperatura superficiale di solidi e hanno almeno una superficie di applicazione o di contatto che deve aderire alla superficie da misurare.
Informazioni generali Informazioni generali sul montaggio delle sonde di temperatura: Le sonde si differenziano per struttura nei seguenti modi: sonde di temperatura a contatto, sonde di temperatura con cavo, sonde di temperatura con involucro e ad immersione. – Nelle sonde di temperatura a contatto, la sonda di temperatura possiede almeno una superficie di contatto che, ad es., viene appoggiata alla superficie del tubo o ai termosifoni.
DIN 43763 o degli montaggio. Eventuali versioni diverse rispetto alle immagini del catalogo non standard speciali Sauter! vengono descritte separatamente a posteriori e sono la conseguenza del progresso tecnico e del costante processo di miglioramento dei nostri Avvisi sul processo di collegamento delle sonde ad immersione prodotti.
