ENGLISH
Easy to operate shut-off valve through turning 90° which clicks into position. The open/closed position is clearly
visible: Arrow on the handwheel parallel to gas line – valve open. Arrow on the handwheel at a right angle to the gas
line – valve closed.
Regulating valve V 50
Regulating valve to dose (max. 10 turns) the desired flow. Please note: only shut-off valves guarantee secure closing
of the gas flow.

4.5 Accessories

For the design series 200, a comprehensive range of accessories such as tube fittings, hose nipples, contact pressure
gauges and flame arrestors can be supplied. For
these, please contact the Linde service companies.
It is essential that assembly and installation
instructions for these components are followed.
Please ensure that undamaged gaskets are used
which have the correct dimensions, check that all
threads are not damaged, check for leaks and perfect
functionality when assembly is completed. Please
also pay attention to "connection" and "start-up".
5. Marking

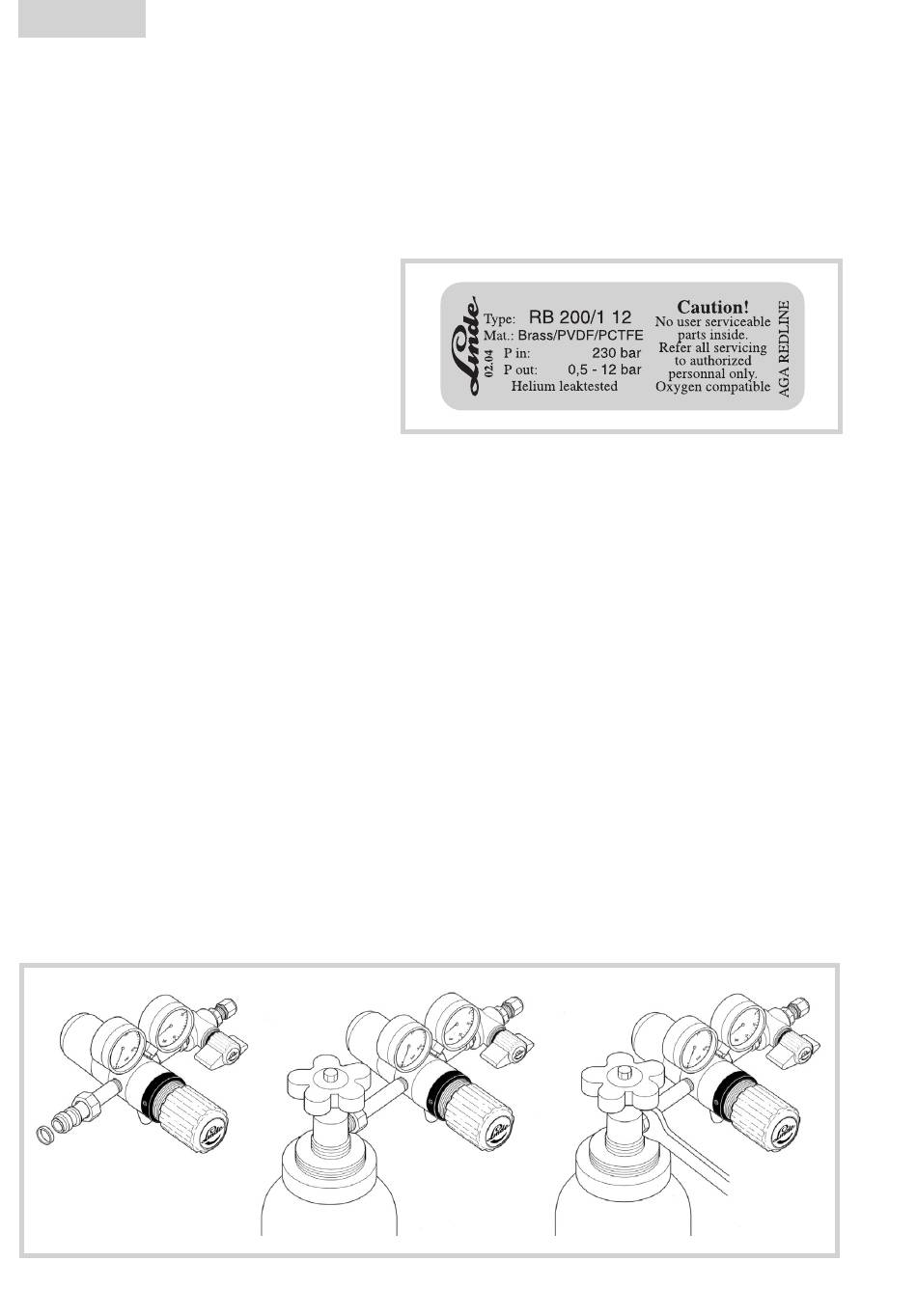

On the nameplate (refer figure 2) there are: the type description (type), the materials of the regulator body/seat
material/diaphragm seal (mat.), the permissible nominal inlet pressure (p
area (p ), the manufacturer and the month of manufacture, a safety notice and the type of gas. The serial number of
out
the device is given as device specific identification on a separate label in bar-code 128 and in plain text.
CAUTION! Only use equipment with an application purpose which corresponds with the type of gas and operating
pressures marked on the nameplate. Otherwise there is danger of injury or danger to life and/or the danger of the
fittings being damaged.
6. Connection
Cylinder regulator
DANGER! Thread on cylinder valve and swivel nut must not be at all damaged (refer to figure 3).
WARNING! Only ever use new gaskets. Gaskets may not be deformed and must not show traces of dirt or metal
shavings.
WARNING! Do not use any spanner extensions as otherwise the thread and the gasket could be damaged. This can
lead to leakage, uncontrolled release of gas or the whole supply of gas pouring out.
CAUTION! Before connecting, use the nameplate to check whether the equipment to be used is suitable for the
planned application purpose (type of gas, pressure, etc. refer to information "marking").
Preparation
3
6
2
4
), the instrument specific outlet pressure
in
5
