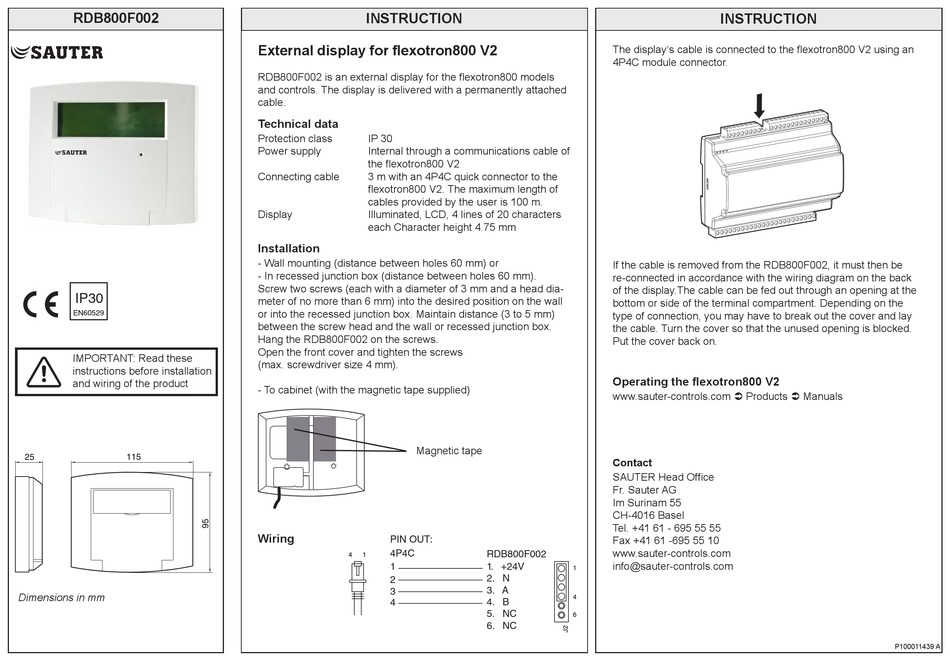

Sauter RDB800F002 Anleitung Seite 4

RDB800F002
IP30
EN60529
IMPORTANT: Read these
instructions before installation
and wiring of the product
Dimensions in mm
INSTRUCTION
External display for flexotron800 V2
RDB800F002 is an external display for the flexotron800 models
and controls. The display is delivered with a permanently attached
cable.
Technical data
Protection class IP 30
Power supply Internal through a communications cable of
the flexotron800 V2
Connecting cable 3 m with an 4P4C quick connector to the
flexotron800 V2. The maximum length of
cables provided by the user is 100 m.
Display Illuminated, LCD, 4 lines of 20 characters
each Character height 4.75 mm
Installation
- Wall mounting (distance between holes 60 mm) or
- In recessed junction box (distance between holes 60 mm).
Screw two screws (each with a diameter of 3 mm and a head dia-
meter of no more than 6 mm) into the desired position on the wall
or into the recessed junction box. Maintain distance (3 to 5 mm)
between the screw head and the wall or recessed junction box.
Hang the RDB800F002 on the screws.
Open the front cover and tighten the screws
(max. screwdriver size 4 mm).
- To cabinet (with the magnetic tape supplied)
Magnetic tape
Wiring
PIN OUT:
4P4C
4 1
1
2
3
4
The display's cable is connected to the flexotron800 V2 using an
4P4C module connector.
If the cable is removed from the RDB800F002, it must then be
re-connected in accordance with the wiring diagram on the back
of the display.The cable can be fed out through an opening at the
bottom or side of the terminal compartment. Depending on the
type of connection, you may have to break out the cover and lay
the cable. Turn the cover so that the unused opening is blocked.
Put the cover back on.
Operating the flexotron800 V2
www.sauter-controls.com  Products  Manuals
Contact
SAUTER Head Office
Fr. Sauter AG
Im Surinam 55
CH-4016 Basel
Tel. +41 61 - 695 55 55
Fax +41 61 -695 55 10
www.sauter-controls.com
RDB800F002
