Part 2- Mechanical Installation
Installing the X-axis Assembly
What you will need:
(8) M5*16 Socket Cap Screw
8 X-axis Assembly 26 Allen Wrench 43

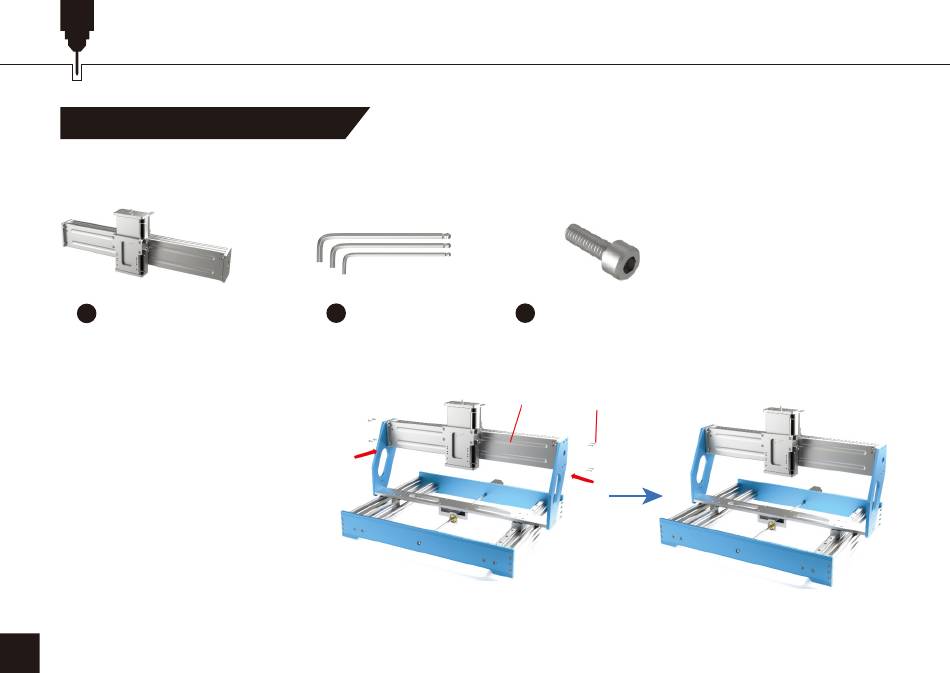

1. Using the M5*16 Socket Cap
X-axis
M5*16
Screws, install 1 on either side to
Assembly
Socket Cap Screws
help support the X-Axis gantry
while you continue to finish
placing the assembly for a loose
fit up.
2. After confirming that the X-axis
assembly is mounted level, lock
the M5*20 screws in tightly on
both sides of the gantry supports.
