Genmitsu 3018-PRO Benutzerhandbuch Seite 27

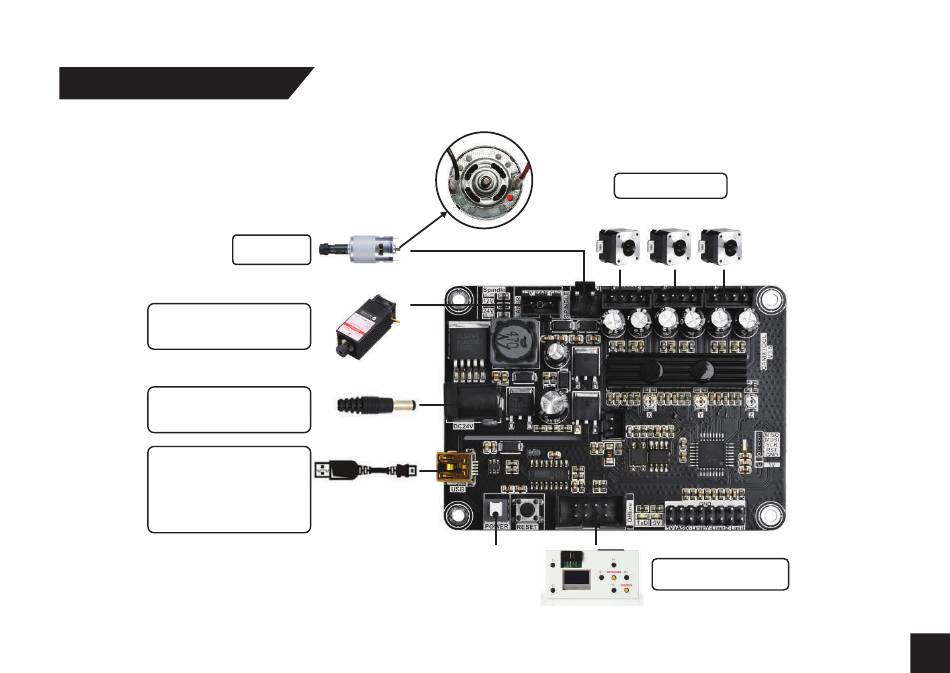

Step 12 Wiring Diagram
Spindle
Laser (12V 5Amax)
(Not include)
24V DC Power
adapter
USB
Connect your CNC to
computer using the
bundled USB cable
Connect the red wire to the
port next to the red mark
17
Stepmotor
X
POWER
ON/OFF
Y Z
Offline controller
25
