Step 4 Top Frame Assembly
What you will need

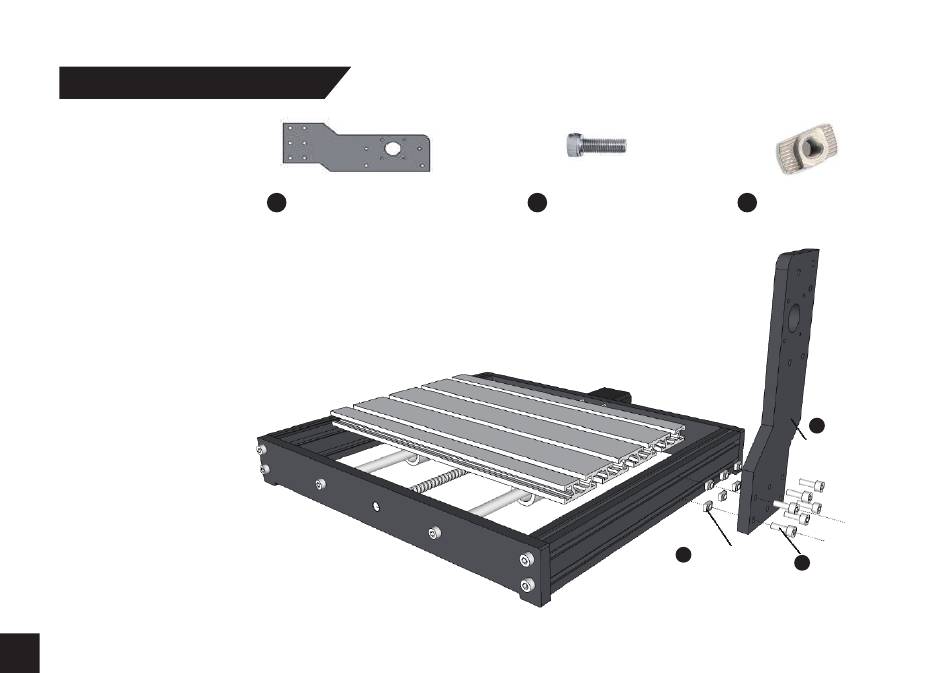

STEP 1: Position the Bakelite Pillars with a spacing of 46.5mm between rear frame
piece and back of the pillar as shown in the Completed View on the next page.
Tip: When installing T-Nuts it helps to twist them onto the bolts a few turns keeping
them in place before placing into the Aluminum slot.
16
10 Bakelite Resin Plate C 26 (6) Bolt M5 x 16
(6) T-Nut 20M5
29
29 (6) T-Nut 20M5
10
Bakelite Resin
Plate C
(6) Bolt
26
M5 x 16
